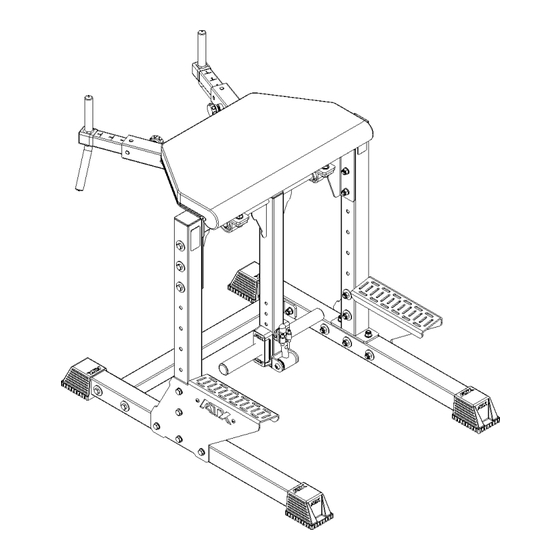

- Seite 1 AUFBAUANLEITUNG OWNER`S MANUAL ATX-RHE-II Reverse Hyper Extension...
-
Seite 2: Inhaltsverzeichnis
Montagehinweise / Assembly Instructions .…………….…………….…. 04 ………………………….…… 05 Notwendige Werkzeuge / Tools .…………….…………….…. 06 Datenblatt / Data Sheet .…………….…………….…. 07 Stückliste / Part List .…………….…………….…. 08 Explosionszeichnung / Exploded View .…………….…………….…. 09-14 Montage / Assembly .…………….…………….…. 15 Service ATX-RHE-II Reverse Hyper Extension... -
Seite 3: Allgemeines General
This exercise machine may only be commercially used in establishments in which access and supervision is specifically regulated by the owner. (only class S) ATX ® is a registered trademark of International Fitness Sports GmbH. Many of our products are patent protected with regard to utility model and design. Unauthorized replication by providers, plagiarism, use of protected characteristics –... -
Seite 4: Montagehinweise Assembly Instructions
For devices which are to be screwed to the wall and / or floor, heavy-duty anchors or adhesive anchors with at least M12 screws must be used. The type and depth of the anchoring depends on the building material and must be determined by a specialist technician. ATX-RHE-II Reverse Hyper Extension... -
Seite 5: Notwendige Werkzeuge / Tools
Grösse/Size: 13mm / 17mm / 19mm / 22mm / 24 mm Sechskantschlüssel / Allen-Wrench Grösse / Size: 3mm /4mm /5mm / 6mm / 8mm Zum Aufbau dieses Gerätes sind mindestens 2 Personen erforderlich! To build up this device at least 2 persons are required! ATX-RHE-II Reverse Hyper Extension... -
Seite 6: Datenblatt Data Sheet
Eigengewicht Gerät / Dead Weight: ca. 127 KG Max. Belastbarkeit gesamt / Max. total Load capacity: Max. 350 KG Belastbarkeit Hebel-Arm / Loading capacity Lever-Arm: Max. 200 KG Zulässiges Körpergewicht / Allowed Bodyweight: Max. 150 KG ATX-RHE-II Reverse Hyper Extension... -
Seite 7: Stückliste Part List
ATX RHE Upholstery Panel - PAD-02 UCP-206 Plummer Block UCP 206 6004-2RS Ball-Bearing 6004-2RS ATX-RS-80 ATX-RS-80 Rubber Boot ATX-WPP-BUM-50 ATX WPP Bumper - 50 mm tube ATX-SPRING-CLIP ATX Spring Clip SB-70-50-200 Slide Bar 70-50-200 - PA66 IFS-DPIN-12 IFS Detent Pin 12 mm ATX-METAL-5x10... -
Seite 8: Explosionszeichnung Exploded View
EXPLOSIONSZEICHNUNG EXPLODED VIEW ATX-RHE-II Reverse Hyper Extension... -
Seite 9: Montage / Assembly
STEP – 1 ATX-RHE-II Reverse Hyper Extension... - Seite 10 STEP – 2 ATX-RHE-II Reverse Hyper Extension...
- Seite 11 STEP - 3 ATX-RHE-II Reverse Hyper Extension...
- Seite 12 STEP - 4 Alle Teile exakt ausrichten und sämtliche Schrauben festziehen. Align all parts accurately and then tighten all screws. ATX-RHE-II Reverse Hyper Extension...
- Seite 13 STEP - 5 ATX-RHE-II Reverse Hyper Extension...
- Seite 14 STEP - 5 Schrauben nur Handfest anziehen. Only hand-tighten the bolts. ATX-RHE-II Reverse Hyper Extension...
-
Seite 15: Service
Only use original spare parts to assure your warranty claims, and to avoid the risk of an injury. Making your own modifications to the machine, and non-compliance with capacity limits, render all warranty claims null and void. Importeur: IFS GmbH Lothforster Strasse 46 41849 Wassenberg ATX-RHE-II Reverse Hyper Extension...
