3 Installation MT iQ Solar
For installation please
remove the positive cable
between the solar control-
ler and your battery from
the positive terminal.

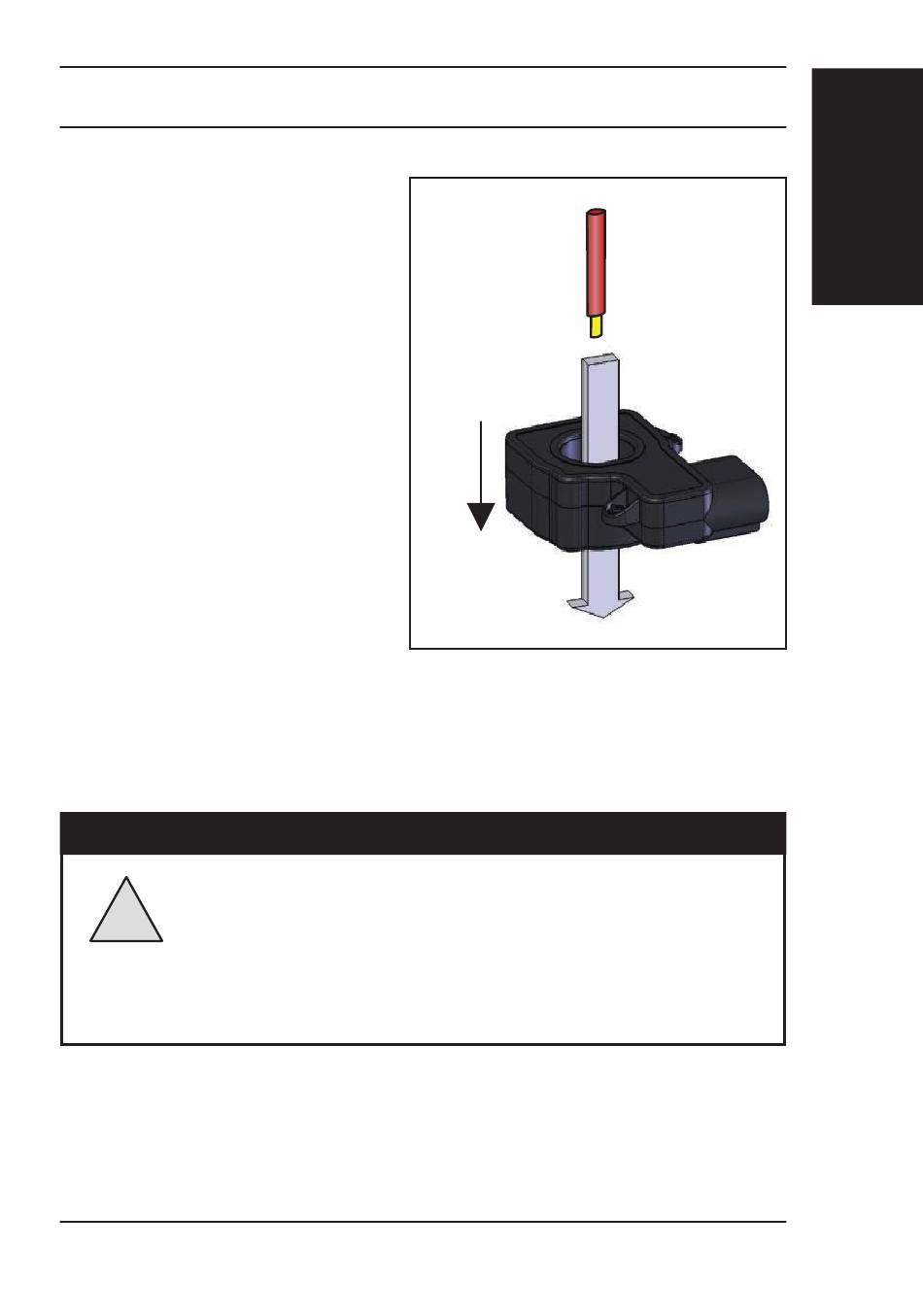

Pass this cable through
the opening of the current
sensor exactly as shown
in the picture on the right.
Now reconnect cable again
with the pole terminal.
When using
Solar controllers simply
pass all other plus cables
through the current sensor too. This allows monitoring and
displaying the overall performance of all installed solar
systems.
All plus cabling from the solar controllers
! !
need to be fed through the sensor. For safety
reasons pull-out the fuse on your solar con-
troller and put it back again after assembly.
