Johansson 9644KIT Anleitung

Features
- The Multi Band Converter allows to upgrade the installation with a TWIN (or quad) LNBF to be connected with
a dual tuner input digital receiver with recorder (PVR) on existing cable.
- DiSEqC™ function allows to receive signals from 2 satellites (e.g. Astra / Hot Bird).
Technical Specifications
Co n v e r t e r
- Inputs :
- Ouput :
- Insertion loss / gain :
- Max. input level :
- Consumption :
- Dimensions :
Cu s t o me r De v i c e
- Input :
- Ouputs to receiver :
- Insertion loss / Gain :
- Consumption :
- Dimensions :
G e n e r a l
Operating system for CT100 cable, 19VAtC or 17VAtC cable up to 25 m.
- 4 F / F coaxial cables are included for LNB and receiver connections.
WARNING ! A v o i d a n y s h o r t c i r c u i t i n c o n v e r t e r a n d c u s t o m e r d e v i c e
F o r n o r m a l o p e r a t i n g , a s s u r e t h a t b o t h o u t p u t s o f t h e c u s t o m e r d e v i c e a r e c o n n e c t e d .
R

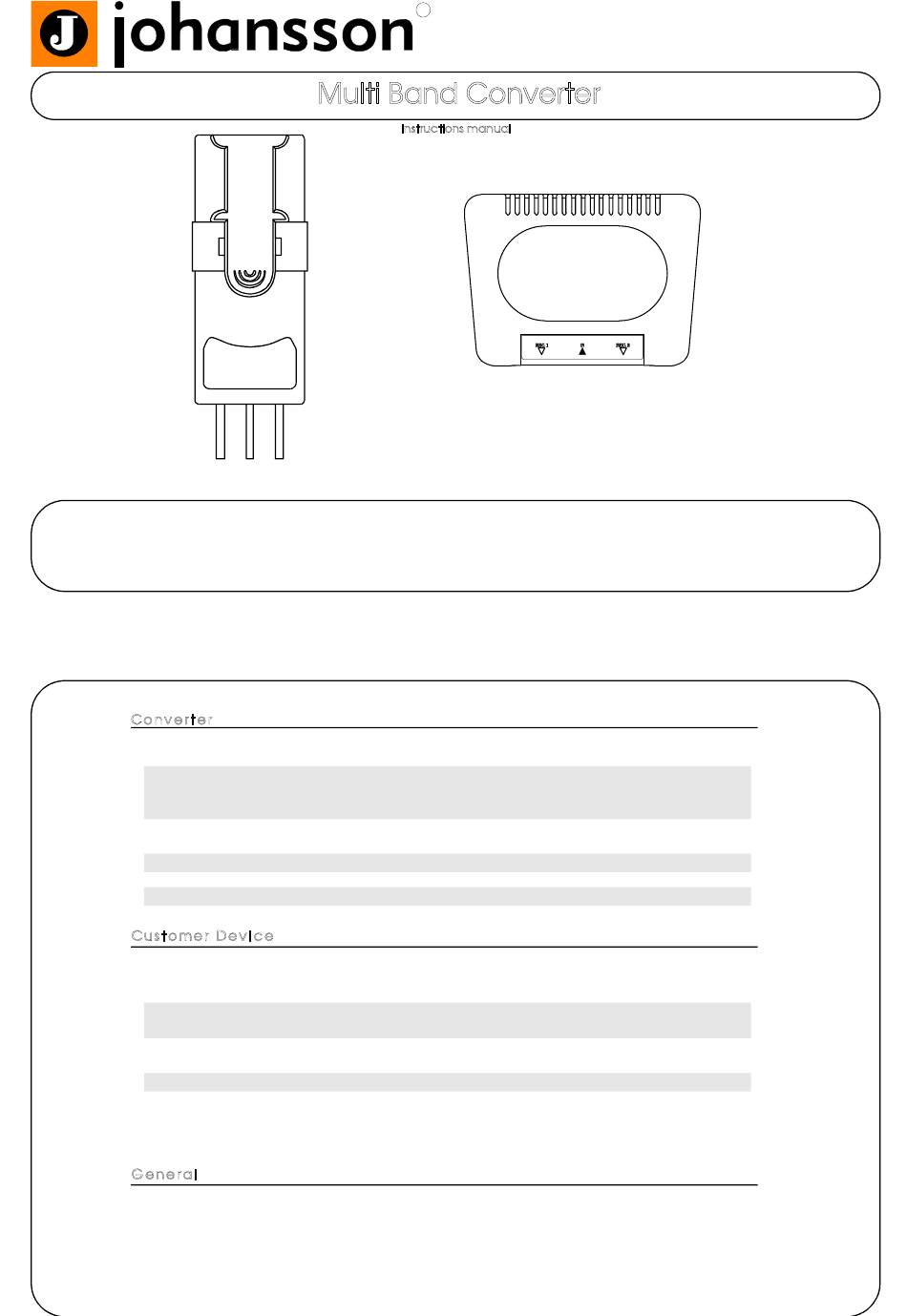

Multi Band Converter
Instructions manual
(rated to operate on the frequency range up to 3.6 GHz)
(rated to operate on the frequency range up to 3.6 GHz)
Ref. : 9644KIT
1 x 5 - 2150 MHz
1 x 950 - 2150 MHz
5 - 3550 MHz
with "F" High Quality connector
Terrestrial : -1 dB / Satellite : -4 dB
Converted Sat. : +7 dB
85 mA max.
201 x 87 x 42 mm.
5 - 3550 MHz
with "F" High Quality connector
1 x 5 - 2150 MHz
1 x 950 - 2150 MHz
Terrestrial : -1 dB / Satellite : -4 dB
Converted Sat. : +0 dB
60 mA max.
127 x 92 x 41 mm.
D i S E q C ™ i s a t r a d e m a r k o f e u t e l s a t
Patent Pending
78 dBµV
