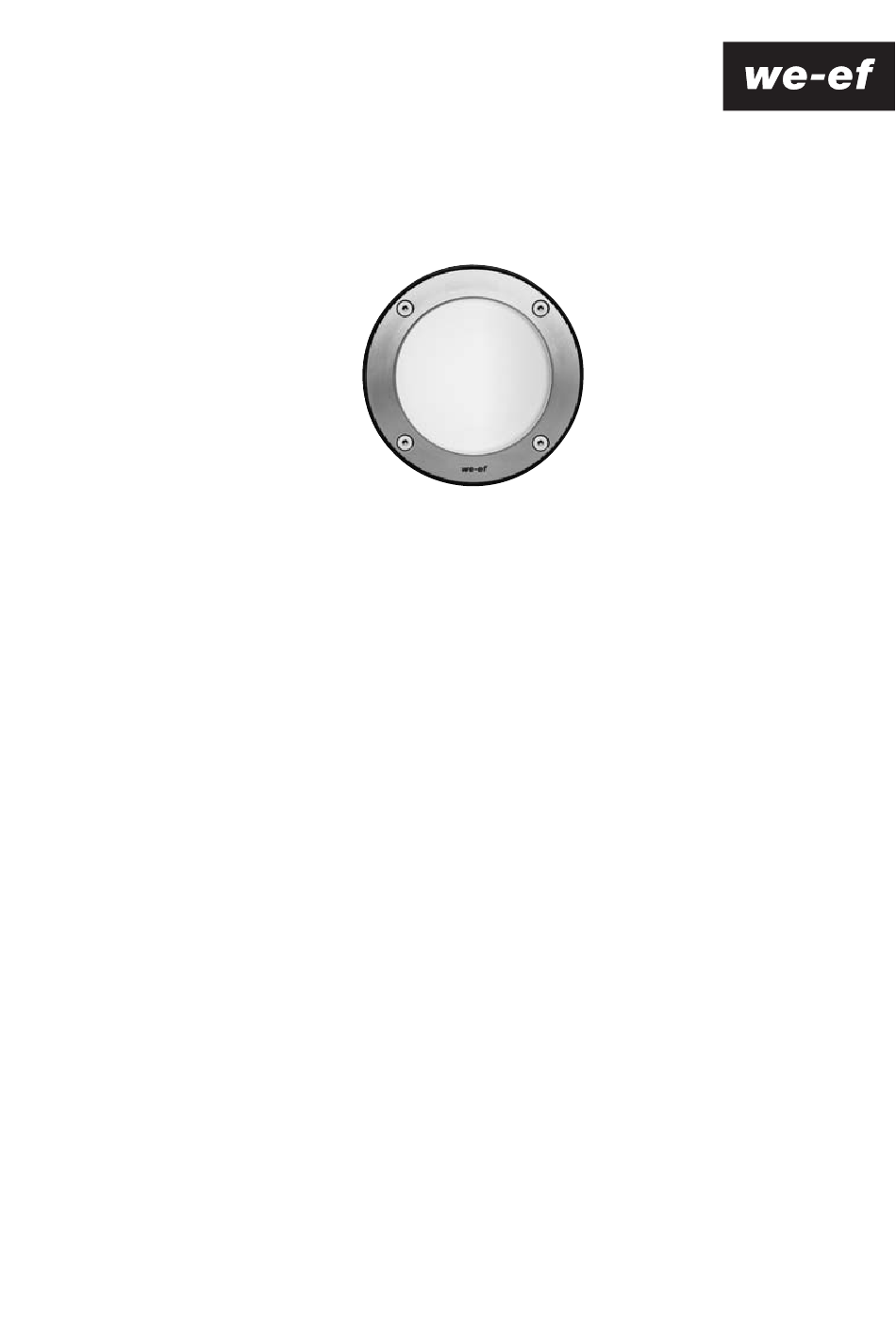

WE-EF LEUCHTEN Montage- und Wartungshinweise für Bodeneinbauleuchte Serie ETC300 LED Installation and Maintenance Instructions for Inground Uplight ETC300 LED Series...
Seite 2
* Nominalleistung, aktualisierte Daten siehe www.we-ef.com Ø 8 - 8,5 mm 3 x 1,5 mm * Nominal power, for latest data refer to www.we-ef.com Schutzart / Protection: IP67, IK10 3x - 1,5 mm Schutzklasse / Class I, ta = 25°C Benötigtes Werkzeug...
Es ist für eine ausreichende Drainage, zum Beispiel durch Ensure that proper drainage is provided for the shown ein Kiesbett, zu sorgen. installation methods. For proper installation WE-EF recom- mend the supplied installation blockout. – In gefliesten oder gepflasterten Bereichen (Abb. 1) Please note the following installation possibilities: –...
Seite 4
c) Das Anschlusskabel O ist lang genug für den Anschluss 3) During ongoing earth and/or masonry works, do not der Verbindungsmuffe J mit dem Leuchtenkabel N. remove two screws M from mounting ring H. Ensure that installation blockout/mounting ring assembly L/H 3) Entfernen Sie die beiden Schrauben M nicht vom is not damaged and has maintained its original shape.
Seite 5
Achtung: Achten Sie beim Einsetzen des Leuchten - 11) Switch on luminaire, let it operate for 30 minutes to gehäuses in den Erdeinbautopf L darauf, dass die avoid water condensation and carefully close the lumi- Verbindungsmuffe J oder die Kabel nicht eingeklemmt naire after the time has elapsed.
