1 - GENERAL FEATURES

Our amplifiers are modular design. The metal chassis is very rigid and the interior
design provides easy access to the electronic circuits.
Fully independent safety circuits protect the amplifier in the event of a short circuit of
the loudspeaker output, abnormal increases in temperature and/or excessive
amplifier consumption.
These amplifiers offer high performance and damping factor, which results in clean
response to transients and high quality playback. The heat sinks, of our own design,
combine high heat dissipation with a reduced weight and thermal inertia.

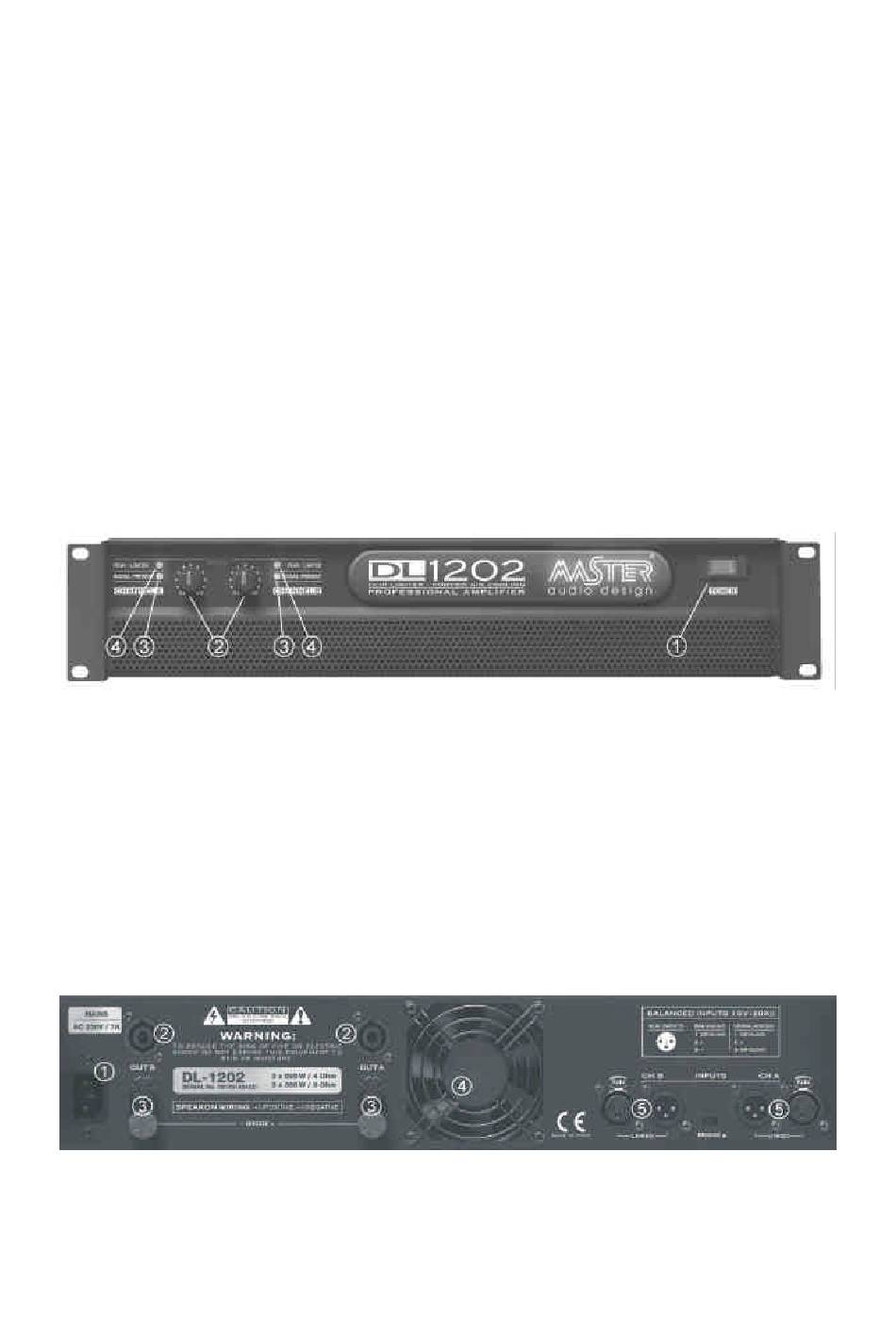

2 - FRONT PANEL FEATURES

- On-Off switch (1)
- Volume (2) potentiometers (GAIN)
- Input signal indicators (3)
- Indicators of Clipping (4), temperature protection or short-circuiting.

3 - REAR PANEL FEATURES

- Forced ventilation turbine (4)
- 230V power supply (1)
- Loudspeaker output connection. (2 – Speakon) (3 – Binding post)
- Input signal. (5)
