instructions for use
please read accurately befor using
please keep amenable to consult at a later point of time.
the barbecue grill corresponds to cat. I3 b/p; gas: g30/g31; 50 mbar.
burner capacity 8,8 kw; gas consumption: 669 g/h
for safety´s sake:
- apparatuses of category are only allowed to be used with liquefied
petroleum gas or butane gas by an operation pressure of 50 mbar.
- the apparat can only be used outside. the usage in closed rooms is
explicit forbidden!
- do not position the grill next to inflammable materials.
- do not position the gas bottle next to a heat source.
- the hose connection of the gas bottle has to be placed easily
accessible and is not allowed to get in connection with hot objects.
- the gas bottle is not allowed to be placed in living spaces or non-
ventilated rooms. (even applied for empty gas bottles!)
- every modification, done at the grill can cause a gas explosion.
- the inspection or reparation of damaged parts should only be done by
professionals.
- after usage the valve of the gas bottle has to be closed well.
- if the flame goes out, wait at least 20- 30 seconds for the burner to
cool before re-igniting.
- use the barbecue only with the lid open
- never apply any grease to the couplings and valves
- before cooking food with the grill for the first time, allow the grill
to heat up for 15 minutes until the slight fuming dies down.
installation:
- only use gas bottles with a filling weight of 5 or 10 kg.
- the used pressure regulator has to be adjusted at 50 mbar and got a
gas flow rate of 1,5 kg/h.
- the supplied regulator fufil the qualifications.
- connection of the regulators to the gas bottle: the knurled nut of the
regulator (left thread) has to be connected by hand with the valve of
the bottle.
attention: hold on tight the regulator while screwing on and un-
screwing and twist the union nut - not the regulator!! also hold tight
the regulator while fixing the hose connection. the complete regulator
should not turned at this way of assembly, too - otherwise leakiness!!
- proof the apparature of leakage:
all joinings, including downstreamed hose contributor have to be
proofed of leakage by using leak detector spray or other suitable foam
building means.
initation:

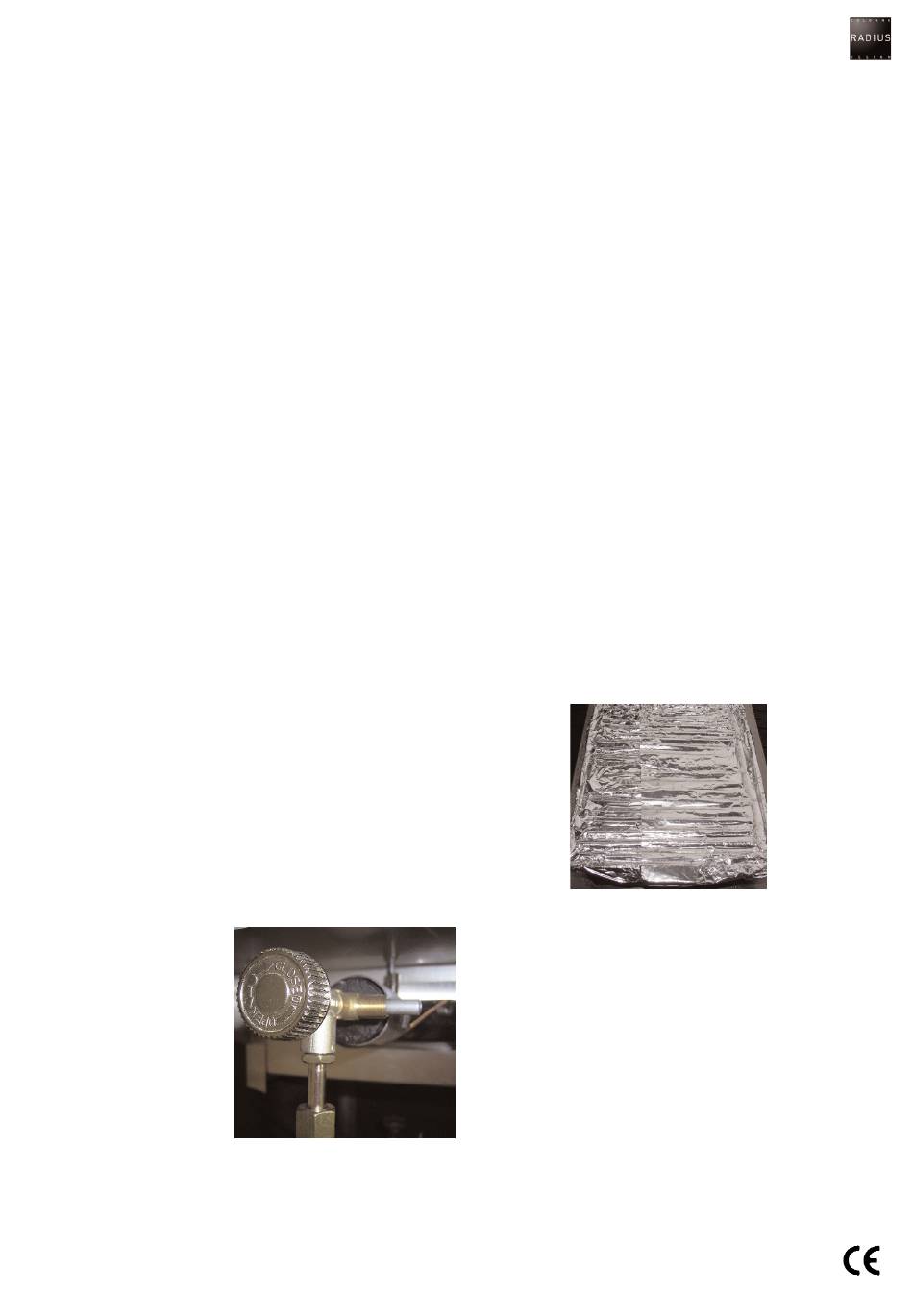

1. open the regulate button (a)
by turning counter clockwise.
2. while holding a burning
match or lighter at the
burner, press down the
button of the ignition safety
(b).
3. after the burner has ignited
press the button of the
ignition safety (b) for 30 sec.
if the flame expires, repeat
step 2 and 3.
4. regulate the flame by the
adjusting knob (a) of the
regulate valve.
5. for closing the gas supply
turn the adjusting knob
clokwise to the end.
6. if the grill is not in use, close the bottle valve to avoid unnoticed gas
emission.
b
a
cleaning and care:
- it is important to clean the grill after each use.
- use soapsud and a sponge. (no rubbing means). clean the burner only
with hot water and soap. proof if the burner openings are blocked and
dry them well. clean the cast stock grill plate with a brass brush and
some edible oil.
- if the adjusting valve is hard to turn, please ask an expert.
- control regularly the hose, valve, connections and the leakage of the
apparature.
- if there are any operational problems please contact the specialised
trade or an expert.
technical data:
- dimensions: height: 86,5 cm; width: 38 cm; depth: 56 cm
- burner capacity: 8,8 kw
- gas consumption: 669 g/h
- nozzle diameter [0,01mm]: 135
- air needed for burning [m3]: 18,4
- regulator: dvgw-reg.-nr.: dg-4323 as 0547
nominal flow rate: 1,5 kg/h steamy liquid gas
pressure level: pn 16
allowed ambient temperature: 32°f bis +140°f
according to trf, paragraph 5.1. the liquid gas pressure controller,
nominal pressure 50 mbar is equipped with a termic released shut-off
device. at temperatures upon 158°f the shut-off device locks auto-
matically the the gas supply. after the responsiveness of the thermic
shut-off device it is not serviceable any more and has to be exchanged.
general tips:
- the grill can also be used for barbecueing fish and crustaceans.
as you can see in the picture, just put on the grill plate aluminum foil to
ease the cleaning after barbecue.
- to use the grill in an industrial way you need a special pressure
regulator. you can get this regulator at your trader.
www.radius-design.de
0049
(gas appliances directive 90/396/eec)
