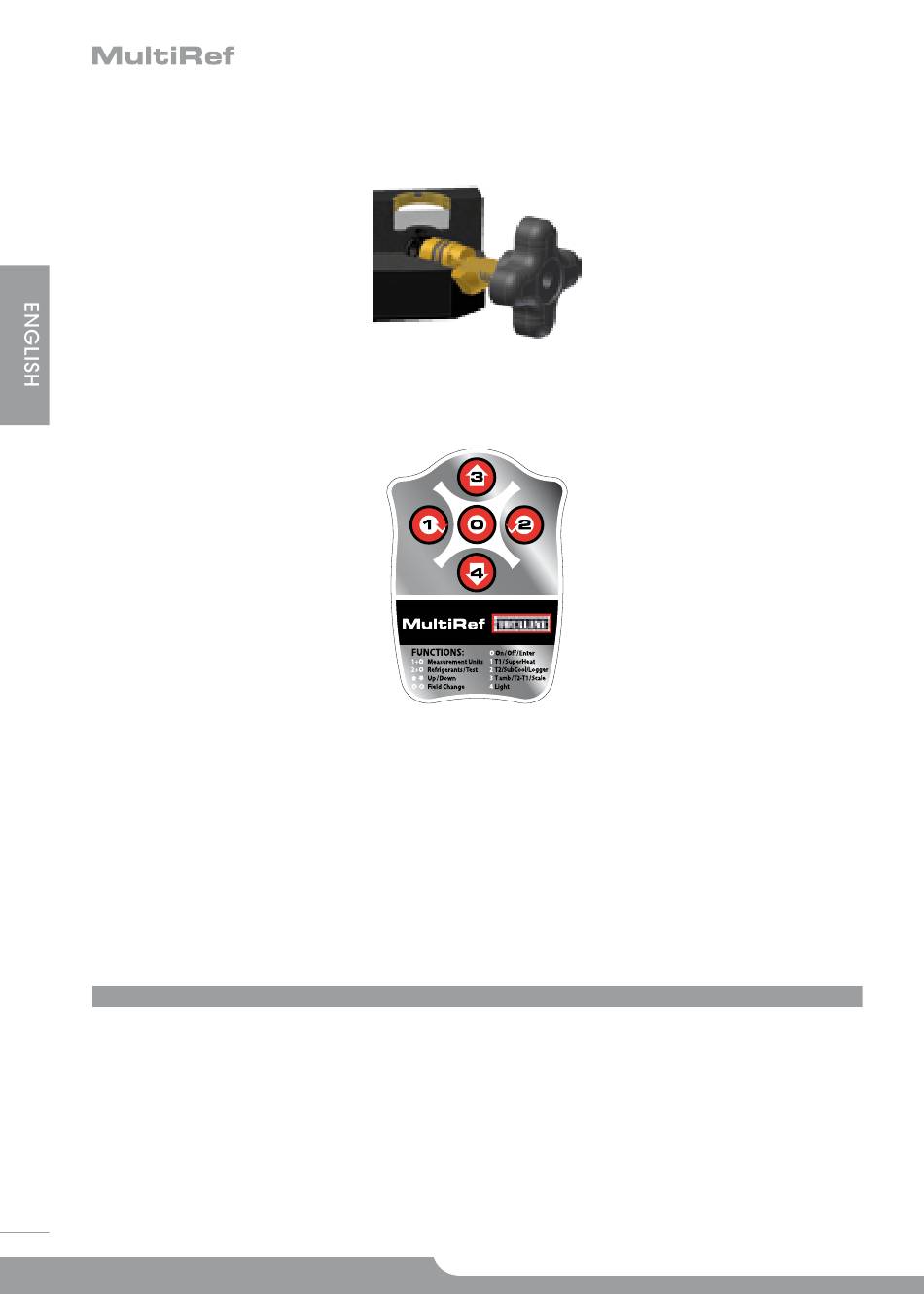

2.2 Manifold

4-way piston manifold (LOW – VAC – REF – HIGH) with double O-ring to maintain tightness
in any functioning condition.
Inner pressure transducers have a precision < 1%.

2.3 control keypad

The 5 keys enable a perfect control of the instrument. The sticker serigraphy enables an
easy use during any operation.

2.4 Temperature probes

The instrument features 2 probes (K type) supplied in the kit with a 3 meters' cable. Another
probe for measuring the ambient temperature is inside the instrument.

2.5 Flexible hoses

Their flexibility assures easy connection in any situation. They withstand the cooling system
operating pressures and keep the section passage intact even when operating in vacuum.

2.6 Support Hook

In order to make the use of MultiRef easier with hoses and other connecting places, you
can use the support hook, which can be set in the 4 angular positions.
IMPORTANT
Please be careful when putting the hook in its rest position. Give a slight pressure on the
outer side of the hook without damaging the instrument protection shell while positioning
the hook at rest.

2.7 battery holder space

On the rear of MultiRef, there is the battery holder space. When batteries must be replaced,
remove the protection screw to open the cover.
