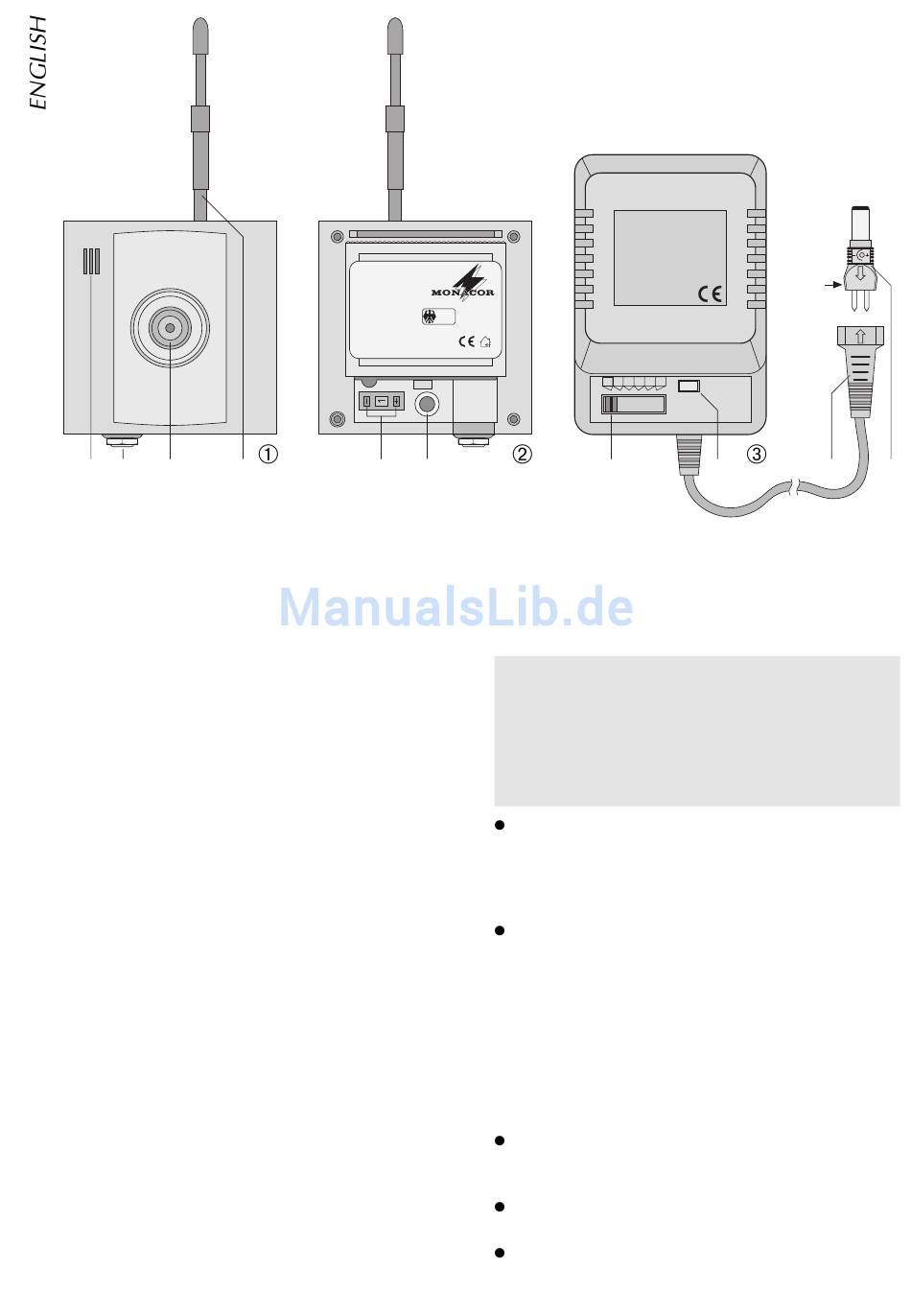

1 Operating Elements and Connections

1 Microphone
2 Low voltage jack for 12 V power supply via the
supplied power supply unit;
centre contact = positive pole
3 Lens
4 Transmitting antenna
5 Channel selector
(No signal will be transmitted if channel 0 or chan-
nels 6 – 9 are selected.)
6 6.3 mm ( 1 / ") thread jack for mounting
4
7 Voltage selector switch; slide the switch fully to the
left to 12 V
8 Power LED
9 Inline jack for the adapter (10)
10 Adapter for connecting the power supply unit to
the low voltage jack (2) of the camera;
the adapter with the marking "5.5 X 2.1" and the
identification letter "E" is required
6
AV-3010CCD
Best.-Nr. 12.2850
Sender
Transmitter
Serial- No. P01/ 001184 - 01
4 5
®
B
G750
Z
817J
T
IMHB-2025
6

2 Safety Notes

The camera and the supplied power supply unit cor-
respond to the directive for electromagnetic compati-
bility 89/336/EEC. The power supply unit also corre-
sponds to the low voltage directive 73/23/EEC.
Attention! The power supply unit is supplied with
hazardous
Leave servicing to skilled personnel only.
Inexpert handling may cause an electric
shock hazard. Furthermore, any guaran-
tee claim will expire if the power supply
unit or the camera has been opened.
The camera and the power supply unit are suitable
for indoor use only. Protect the units against drip-
ping water and splash water, high air humidity, and
extreme temperatures (admissible ambient temper-
ature range -10 °C to +55 °C).
Do not operate the camera or immediately dis-
connect the power supply unit from the mains
socket
1. if there is visible damage to the camera or to the
power supply unit,
2. if a defect might have occurred after the unit was
dropped or suffered a similar accident,
3. if malfunctions occur.
In any case the units must be repaired by skilled
personnel.
Always protect the lens of the lens assembly from
dust and other impurities. Never touch it with your
fingers.
For cleaning only use a dry, soft cloth, by no means
chemicals or water.
No liability for any damage will be accepted if the
camera or the power supply unit is used for other
STABILISIERTES
NETZGERÄT
12 9 7.5 6 4.5 3
AN
SPANNUNG
7 8
mains voltage
5.5 X2.1
5.5X2.1
10
9
(230 V~).
