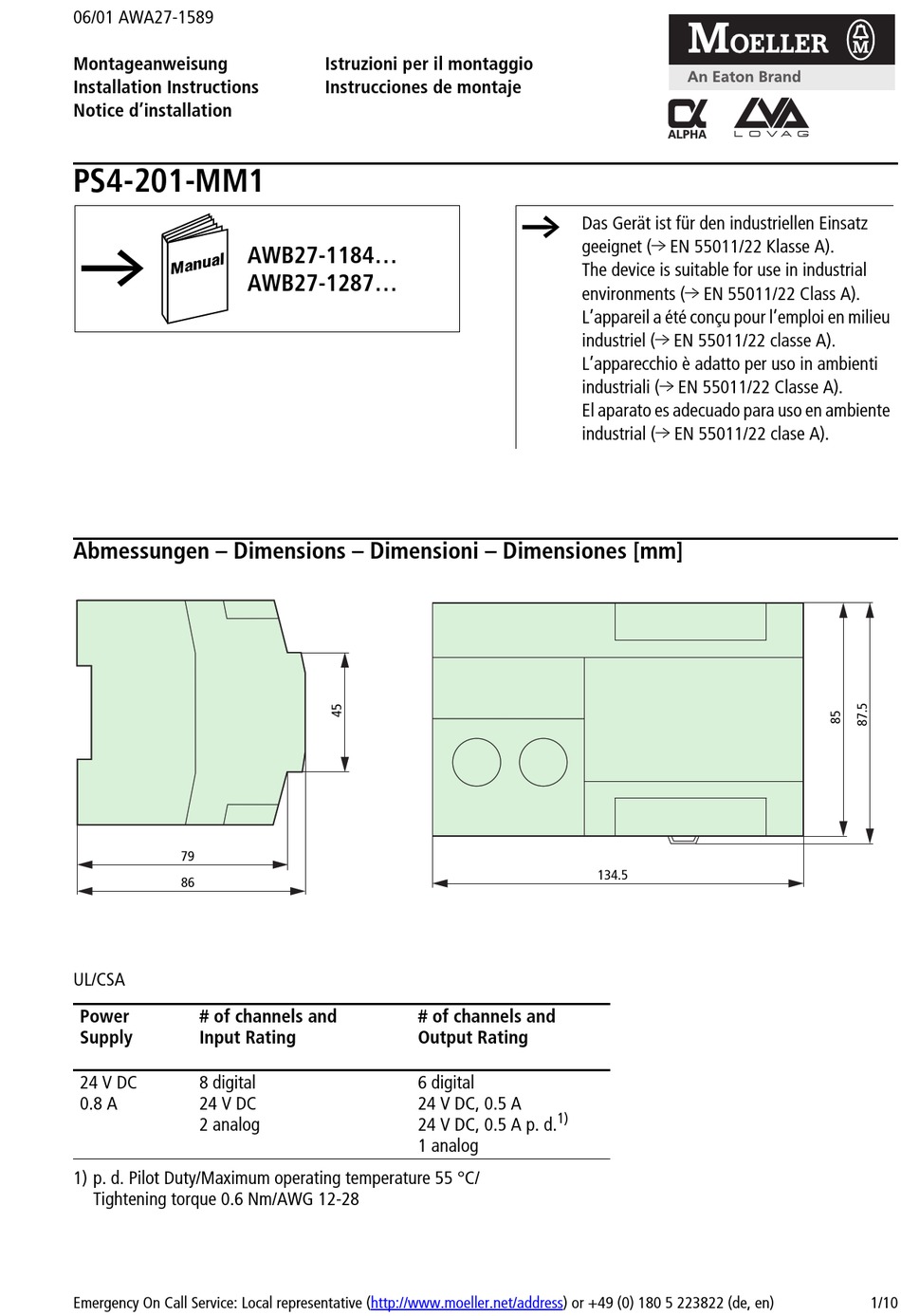

06/01 AWA27-1589
Montageanweisung
Installation Instructions
Notice d'installation

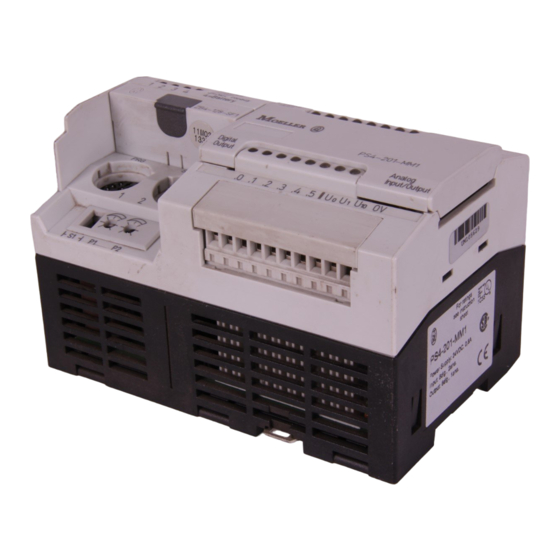

PS4-201-MM1
A
Abmessungen – Dimensions – Dimensioni – Dimensiones [mm]
79
86
UL/CSA
Power
# of channels and
Supply
Input Rating
24 V DC
8 digital
0.8 A
24 V DC
2 analog
1) p. d. Pilot Duty/Maximum operating temperature 55 °C/
Tightening torque 0.6 Nm/AWG 12-28
Emergency On Call Service: Local representative (http://www.moeller.net/address) or +49 (0) 180 5 223822 (de, en)
Istruzioni per il montaggio
Instrucciones de montaje
AWB27-1184...
AWB27-1287...
h
Das Gerät ist für den industriellen Einsatz
geeignet (l EN 55011/22 Klasse A).
The device is suitable for use in industrial
environments (l EN 55011/22 Class A).
L'appareil a été conçu pour l'emploi en milieu
industriel (l EN 55011/22 classe A).
L'apparecchio è adatto per uso in ambienti
industriali (l EN 55011/22 Classe A).
El aparato es adecuado para uso en ambiente
industrial (l EN 55011/22 clase A).
# of channels and
Output Rating
6 digital
24 V DC, 0.5 A
1)
24 V DC, 0.5 A p. d.
1 analog
134.5
1/10
