SITRANS
Intelligentes Funkmodul mit
Spannungsversorgung für Feldgeräte

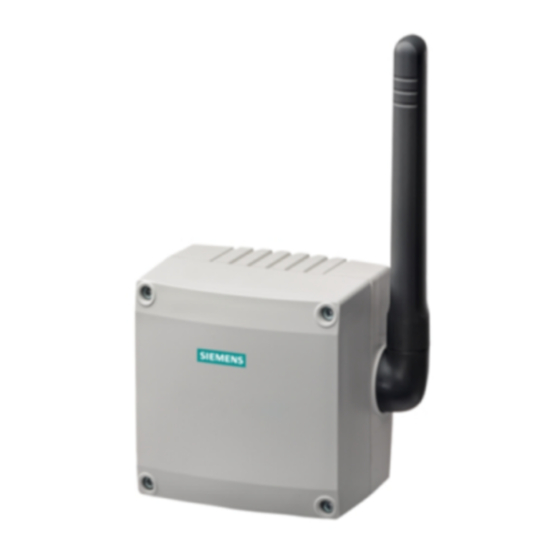

WirelessHART-Adapter SITRANS AW200
Kompaktbetriebsanleitung
1
Zweck dieser Dokumentation
Diese Anleitung ist eine Kurzfassung der wesentlichen Merkmale, Funktionen und
Sicherheitshinweise und enthält alle für den sicheren Einsatz des Gerätes
notwendigen Informationen. Lesen Sie die Anleitung vor der Installation und
Inbetriebnahme sorgfältig. Um eine sachgemäße Handhabung sicherzustellen,
machen Sie sich mit der Funktionsweise des Geräts vertraut.
Die Anleitung richtet sich an Personen, die das Gerät mechanisch montieren,
elektrisch anschließen und in Betrieb nehmen.
Um das Gerät optimal nutzen zu können, lesen Sie bitte die ausführliche Version der
Anleitung.
2
Historie
In der folgenden Tabelle stehen die wichtigsten Änderungen der Dokumentation
verglichen mit der jeweils vorherigen Ausgabe.
Ausgabe
Bemerkung
03/2016
HW: 3
FW: 02.30.0
3
Allgemeine Sicherheitshinweise
WARNUNG
Explosionsgefahr
Öffnen Sie das Gehäuse des WirelessHART-Adapters niemals innerhalb
explosionsgefährdeter Bereiche.
© Siemens AG 2016. Alle Rechte vorbehalten
A5E02777167-04, 03/2016
1

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Siemens SITRANS AW200

  • Seite 1 In der folgenden Tabelle stehen die wichtigsten Änderungen der Dokumentation verglichen mit der jeweils vorherigen Ausgabe. Ausgabe Bemerkung 03/2016 HW: 3 FW: 02.30.0 Allgemeine Sicherheitshinweise WARNUNG Explosionsgefahr Öffnen Sie das Gehäuse des WirelessHART-Adapters niemals innerhalb explosionsgefährdeter Bereiche. © Siemens AG 2016. Alle Rechte vorbehalten A5E02777167-04, 03/2016...
  • Seite 2 Wartung des Geräts folgende Bedingungen erfüllen: – Verfügt über Qualifikation, die seiner Funktion und Tätigkeit entspricht – Ist ausgebildet im Explosionsschutz – Ist vertraut mit den nationalen Vorschriften ● Gerät gemäß Herstellerangaben und nationaler Vorschriften installieren. ● Elektrostatische Aufladung vermeiden: WirelessHART-Adapter SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 3 Deckel fest zudrehen. – Kabeleinführung fachgerecht montieren. ● Nach einer Gehäuse-Ausrichtung (Verdrehen): die Arretierungsschraube wieder fest anziehen. ● Das Verbindungskabel vom WirelessHART-Adapter zum Feldgerät vor Zug und Reibung schützen (z. B. wegen elektrostatischer Aufladung durch Messstoffströme). WirelessHART-Adapter SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 4 ● Nicht benutzte Einführungsöffnungen mit Verschlussstopfen verschließen, die der Zündschutzart entsprechen und zugelassen sind. Kunststoffgehäuse – Nur für den Einsatz in Zone 1 geeignet! Batterie ● Nur die in der Betriebsanleitung aufgeführte Batterieeinheit vom Typ BU 191 (Bestellnummer 7MP3990-0AA00) verwenden. WirelessHART-Adapter SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 5: Gesetze Und Bestimmungen

    1. es muss möglich sein, sicherzustellen, dass das Gerät bzw. die Vorrichtung keine schädlichen Störeinflüsse verursacht. 2. das Gerät bzw. die Vorrichtung muss Störeinflüssen, auch durch Bedienungsfehler, standhalten. Anschließen Anschlussdiagramme Anschlusswerte 4 ... 20 mA + HART-Kommunikation Anschlussmöglichkeiten der Klemmen: Siehe Betriebsanleitung A5E02777161-02, Kapitel "Elektrische Installation". WirelessHART-Adapter SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 6 Zwei Kontakte (7 und 8, parallel zu den Klemmen 5 und 6) erlauben die • Konfiguration des Adapters mit einem zertifizierten Handbediengerät unter Beachtung der sicherheitstechnischen Kennwerte. Weitere Installationsmöglichkeiten sind der Betriebsanleitung A5E02777161, • Kapitel "Anschließen" zu entnehmen. Bild 5-1 Adapterkontakte WirelessHART-Adapter SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 7: Technische Daten

    Weitere Anschlussdiagramme finden Sie in der Betriebsanleitung auf der mitgelieferten Produkt-CD. Technische Daten Hinweis Gefahrgutvorschriften Beachten Sie die Gefahrgutvorschriften, die im Sicherheitsdatenblatt auf der CD- ROM enthalten sind. SITRANS AW200 WirelessHART-Adapter Schutzart IP65, IP66; NEMA4 Batterieeinheit Batterie Lithium-Thionylchlorid-Hochleistungs- Batterieeinheit (Typ BU 191)
  • Seite 8: Zertifikate Und Zulassungen

    Zertifikate und Zulassungen SITRANS AW200 WirelessHART-Adapter Anschlussklemme 1 Spannungsversorgung für Feldgeräte Leerlaufspannung einstellbar zwischen 8 V und 23 V in Stufen < 0,1 V Stromstärke: 4 mA ≤ I ≤ 20 mA DC Anschlussklemme 2 4 ... 20 mA/HART-Eingang Stromstärke 4 mA ≤...
  • Seite 9 Es gilt die mitgelieferte, dem Gerätetyp entsprechende Betriebsanleitung. Ergänzende Dokumentation Explosionsschutz-Broschüre: 6ZB5310-0LE01-0BA5 Kennzeichnung Erläuterungen der Kennzeichnung und Zündschutzart finden Sie in der Explosionsschutz-Broschüre. Kennzeichnung nach Richtlinie 94/9/EG II 2 G Kennzeichnung der Zündschutzart/ des Schutzniveaus Ex ia IIC T4/T3 Gb WirelessHART-Adapter SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 10 Die Zertifikate und angewandten Normen finden Sie auf der mitgelieferten CD und im Internet unter: Zertifikate (http://www.siemens.de/prozessinstrumentierung/zertifikate) Siemens AG Division Process Industries and Drives Postfach 48 48 90026 NÜRNBERG DEUTSCHLAND WirelessHART-Adapter SITRANS AW200 WirelessHART-Adapter SITRANS AW200 A5E02777167, 03/2016 A5E02777167-04, 03/2016...
  • Seite 11: General Safety Instructions

    Edition Note 03/2016 HW: 3 FW: 02.30.0 General safety instructions WARNING Explosion hazard Never open the housing of the WirelessHART Adapter in potentially explosive atmospheres. © Siemens AG 2016. All rights reserved A5E02777167-04, 03/2016...
  • Seite 12 Possess qualifications appropriate to their role and activity – Are trained in explosion protection – Are familiar with the national regulations ● Install the device in accordance with the manufacturer's instructions and national regulations. ● Avoid electrostatic charging: WirelessHART Adapter SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 13 ● Following alignment of the enclosure (rotating): tighten the locking screw again. ● Protect the connecting cable between the WirelessHART adapter and the field device against tension and friction (e.g. electrostatic charging resulting from flow of process medium). WirelessHART Adapter SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 14 ● Only use the battery unit of type BU 191 (order no. 7MP3990-0AA00) referred to in the operating instructions. ● The connector is designed in such a way that polarity reversal is not possible. WirelessHART Adapter SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 15: Wiring Diagrams

    2. The device or equipment must be resistant to interferences, including those resulting from faulty operation. Connecting Wiring diagrams Connection values 4 to 20 mA + HART communication Possible terminal assignments: Refer to operating instructions A5E02777161-02, section "Electrical installation". WirelessHART Adapter SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 16 Two contacts (7 and 8, parallel to terminals 5 and 6) allow configuration of the • adapter using a certified hand-held terminal with observation of the safety- relevant characteristic values. Further installation options can be found in the Instruction Manual A5E02777161, • Chapter "Connecting". Image 5-1 Adapter contacts WirelessHART Adapter SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 17: Technical Data

    Technical data Note Regulations for hazardous goods Pay attention to the regulations for hazardous goods included in the safety data sheet on the CD-ROM. SITRANS AW200 WirelessHART Adapter Degree of protection IP65, IP66; NEMA4 Battery unit Battery Lithium thionyl chloride high-...
  • Seite 18 Technical data SITRANS AW200 WirelessHART Adapter Connection terminal 1 Voltage supply for field devices Open-circuit voltage can be set to a value between 8 V and 23 V in steps of < 0.1 V Amperage: 4 mA ≤ I ≤ 20 mA DC Connection terminal 2 4 ...
  • Seite 19: Certificates And Approvals

    This document is an inherent part of the following Instruction Manuals: A5E02777161 The corresponding Instruction Manual supplied with the device type applies. Supplementary documentation Explosion protection brochure: 6ZB5310-0LE01-0BA5 Designation You can find explanations on the designation and type of protection in the explosion protection brochure. WirelessHART Adapter SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 20 The certificates and applied standards can be found on the enclosed CD and on the Internet under: Certificates (http://www.siemens.com/processinstrumentation/certificates) Siemens AG Division Process Industries and Drives Postfach 48 48 90026 NÜRNBERG GERMANY WirelessHART Adapter SITRANS AW200 WirelessHART Adapter SITRANS AW200 A5E02777167, 03/2016 A5E02777167-04, 03/2016...
  • Seite 21: Consignes De Sécurité Générales

    à l'édition précédente. Edition Remarque 03/2016 HW : 3 FW : 02.30.0 Consignes de sécurité générales ATTENTION Risque d'explosion N'ouvrez jamais le boîtier de l'adaptateur WirelessHART dans des zones à risque d'explosion. © Siemens AG 2016. Tous droits réservés A5E02777167-04, 03/2016...
  • Seite 22 Disposer de la qualification correspondant à sa fonction et à ses activités – Être formé à la protection contre l'explosion – Connaître les prescriptions nationales ● Installer l'appareil conformément aux indications du fabricant et aux prescriptions nationales. Adaptateur sans fil WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 23 ● Pour préserver l'indice de protection du boîtier : – visser fermement le couvercle. – Monter correctement les entrées de câbles. ● Après une orientation du boîtier (rotation) : resserrer les vis de fixation. Adaptateur sans fil WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 24 ● Fermer les entrées de câbles non utilisées avec des bouchons d'obturation correspondant au mode de protection et homologués. Boîtier plastique – Convient uniquement à l'utilisation en zone 1 ! Adaptateur sans fil WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 25 1. il faut pouvoir garantir que l'appareil ou le dispositif n'exerce pas d'influence perturbatrice nuisible. 2. l'appareil ou le dispositif doit supporter des influences perturbatrices même causées par des erreurs de manipulation. Adaptateur sans fil WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 26: Schémas De Raccordement

    • l'adaptateur à l'aide d'un terminal portatif certifié en respectant les caractéristiques de sécurité. D'autres possibilités d'installation sont disponibles dans les instructions • d'utilisation A5E02777161, chapitre "Raccordement". Figure 5-1 Contacts de l'adaptateur Adaptateur sans fil WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 27: Caractéristiques Techniques

    IP65, IP66 ; NEMA4 Bloc de piles Pile Bloc de piles lithium-chlorure de thionyle haute puissance (Typ BU 191) Tension d’alimentation : 5 V - 7,2 V Courant d'alimentation : < 250 mA Adaptateur sans fil WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 28 -40°C ≤ Ta ≤ +60°C Mode de Température ambiante Température de surface Boîtier protection max. Ex tb [ia] IIIC -40 °C ≤ Ta ≤ +60 °C +70 °C aluminium Adaptateur sans fil WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 29 Documentation associée Ce document fait partie intégrante des instructions d'utilisation suivantes : A5E02777161 Les instructions d'utilisation applicables sont les instructions d'utilisation livrées, correspondant au type d'appareil. Documentation complémentaire Brochure Protection contre l'explosion 6ZB5310-0LE01-0BA5 Adaptateur sans fil WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 30 Vous trouverez les certificats et les normes appliquées sur le CD fourni et sur Internet à l'adresse : Certificats (http://www.siemens.com/processinstrumentation/certificates) Siemens AG Division Process Industries and Drives Postfach 48 48 90026 NÜRNBERG ALLEMAGNE Adaptateur sans fil WirelessHART SITRANS AW200 Adaptateur sans fil WirelessHART SITRANS AW200 A5E02777167, 03/2016 A5E02777167-04, 03/2016...
  • Seite 31: Avvertenze Generali Di Sicurezza

    Per un impiego ottimale dell'apparecchio, leggere la versione integrale delle istruzioni. Cronologia Nella seguente tabella sono riportate le modifiche più importanti della documentazione rispetto alla rispettiva edizione precedente. Edizione Nota 03/2016 HW: 3 FW: 02.30.0 Avvertenze generali di sicurezza © Siemens AG 2016. Tutti i diritti riservati A5E02777167-04, 03/2016...
  • Seite 32 Attenersi quindi anche a quanto riportato nella documentazione in dotazione elencata nel seguito: Indicazioni sulla targhetta identificativa. • Istruzioni operative del dispositivo. • Le istruzioni operative sono disponibili sul CD in dotazione. In via supplementare: Ulteriori informazioni su WirelessHART (http://www.siemens.com/wirelesshart) Adattatore WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 33 ● Evitare le cariche elettrostatiche (causate ad es. da sfregamenti delle superfici asciutte): – Di dispositivo e antenna – Del cavo di collegamento – Dell'interruttore di pressione in esecuzione speciale (se presente) Adattatore WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 34 Custodia in plastica F32 con interruttore di pressione in esecuzione speciale – Al momento del collegamento del dispositivo: Accertarsi che il collegamento dell'interruttore di pressione venga mantenuto. Vedere la figura "Figura 5-2 Interruttori di pressione (Pagina 37)", morsetti 2 e 5. Adattatore WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 35 Questi includono, ad esempio: ● Codice elettrico nazionale (NEC - NFPA 70) (USA) ● Codice elettrico canadese (CEC) (Canada) Ulteriori clausole sulle aree pericolose sono ad esempio: ● IEC 60079-14 (internazionale) ● EN 60079-14 (EU) Adattatore WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 36: Schemi Di Collegamento

    Due contatti (7 e 8, paralleli ai morsetti 5 e 6) consentono la configurazione • dell'adattatore con un'apparecchiatura di servizio hand-held certificata, previa osservanza dei valori caratteristici di sicurezza. Per ulteriori opzioni di installazione consultare le istruzioni operative • A5E02777161, al capitolo "Collegamento". Adattatore WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 37 Collegamento interruttori di pressione - esecuzione speciale (solo per le custodie in plastica) Figura 5-2 Interruttori di pressione Nota Schemi di collegamento Ulteriori schemi di collegamento sono disponibili nelle istruzioni operative sul CD del prodotto in dotazione. Adattatore WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 38: Dati Tecnici

    Dati tecnici Nota Disposizioni sulle merci pericolose Osservare le disposizioni sulle merci pericolose riportate nei dati tecnici di sicurezza sul CD-ROM in dotazione. Adattatore WirelessHART SITRANS AW200 Grado di protezione IP65, IP66; NEMA4 Unità batteria Batteria Unità batteria di potenza elevata al litio-...
  • Seite 39 1999/5/UE reciproco riconoscimento della loro conformità. Le Direttive applicate sono indicate nella Dichiarazione di conformità CE riportata sull'apparecchio. Adattatore WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 40 I certificati e la citazione delle norme applicate si trovano sul CD in dotazione con la fornitura nonché al sito Internet: Certificazioni (http://www.siemens.com/processinstrumentation/certificates) Siemens AG Division Process Industries and Drives Postfach 48 48 90026 NÜRNBERG GERMANIA Adattatore WirelessHART SITRANS AW200 Adattatore WirelessHART SITRANS AW200 A5E02777167, 03/2016 A5E02777167-04, 03/2016...
  • Seite 41 Para obtener el máximo provecho del aparato , lea la versión detallada de las instrucciones. Historial En la tabla siguiente se indican los cambios más importantes introducidos en la documentación en comparación con la edición anterior. Edición Observación 03/2016 HW: 3 FW: 02.30.0 © Siemens AG 2016. Reservados todos los derechos A5E02777167-04, 03/2016...
  • Seite 42 • las instrucciones de servicio del aparato. • Encontrará las instrucciones de servicio en el CD suministrado con el producto. Complementariamente: Más información sobre WirelessHART (http://www.siemens.com/wirelesshart) Adaptador WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 43 De la versión especial con pulsador (si lo hay) ● Al evitar cargas electrostáticas (p. ej. por rozamiento, limpieza, mantenimiento, flujo intenso del medio a medir): Adaptador WirelessHART para grupo de gas IIC e IIB. Adaptador WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 44 Ver figura "Figura 5-2 Pulsador (Página 47)", bornes 2 y 5. Zona 21 ● No abrir en subatmósferas con peligro de explosión. ● El pack de baterías no puede sustituirse dentro del área con peligro de explosión por polvo. Adaptador WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 45 ● IEC 60079-14 (internacional) ● EN 60079-14 (CE) Condiciones de servicio: Para el funcionamiento de este aparato deben cumplirse las siguientes condiciones: 1. debe ser posible garantizar que el aparato o el dispositivo no provocan interferencias dañinas. Adaptador WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 46: Diagramas De Conexión

    Consulte otras posibilidades de instalación en las instrucciones de servicio • A5E02777161, capítulo "Conexión". Figura 5-1 Contactos del adaptador Adaptador WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 47: Datos Técnicos

    Datos técnicos Nota Normativas sobre mercancías peligrosas Observe las normativas sobre mercancías peligrosas recogidas en la hoja de datos de seguridad incluida en el CD-ROM. Adaptador WirelessHART SITRANS AW200 Grado de protección IP65, IP66; NEMA4 Pack de baterías Batería Unidad de batería de alto rendimiento de litio cloruro de tionilo (Typ BU 191) Tensión de alimentación:...
  • Seite 48 Datos técnicos Adaptador WirelessHART SITRANS AW200 Borne de conexión 1 Alimentación para aparatos de campo Tensión en vacío Regulable entre 8 V y 23 V en incrementos < 0,1 V Intensidad de corriente: 4 mA ≤ I ≤ 20 mA DC Borne de conexión 2...
  • Seite 49 Certificados Documentación correspondiente Este documento es parte integrante de las siguientes instrucciones de servicio: A5E02777161 Rigen las instrucciones de servicio suministradas correspondientes al modelo de aparato. Documentación complementaria Folleto sobre protección contra explosión: 6ZB5310-0LE01-0BA5 Adaptador WirelessHART SITRANS AW200 A5E02777167-04, 03/2016...
  • Seite 50 Encontrará los certificados y las normas aplicadas en el CD suministrado y en Internet: Certificados (http://www.automation.siemens.com/net/html_78/support/printkatalog.htm) Siemens AG Division Process Industries and Drives Postfach 48 48 90026 NÜRNBERG ALEMANIA Adaptador WirelessHART SITRANS AW200 Adaptador WirelessHART SITRANS AW200 A5E02777167, 03/2016 A5E02777167-04, 03/2016...
