Outdoor plug-in timer
Art no 32-7114
Please read the entire instruction manual before using the product and save it for future reference. We reserve the right
for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding
technical problems please contact our Customer Services.
Safety
• The timer is intended for outdoor and indoor domestic
use only.
• Never use the timer if it has been damaged in any way.
• The switch mechanism is controlled by a 1-pole
micro-switch. The switch has a max load of 16 A
(2 A inductive load).
• The timer has an earthed plug and socket. The timer's
electrical socket is equipped with a child safety shutter
which opens when a plug is connected.
• Classification type 1.B.R according to EN60730-2-7.
• Use only an extension lead approved for outdoor use.
The timer must be mounted upright with the tappets
side on top and the plug side down for the highest
IP44 safety class to be achieved.
• Do not connect the timer to any device that exceeds
the timer's capacity. Always make sure the plug from
the other device is completely pushed into the timer.
• If you need to clean the timer, disconnect it from
the mains and wipe it clean with a dry towel. Do not
use water or any other liquid for cleaning.
• Ensure that the connected appliance does not pose
a fire hazard.

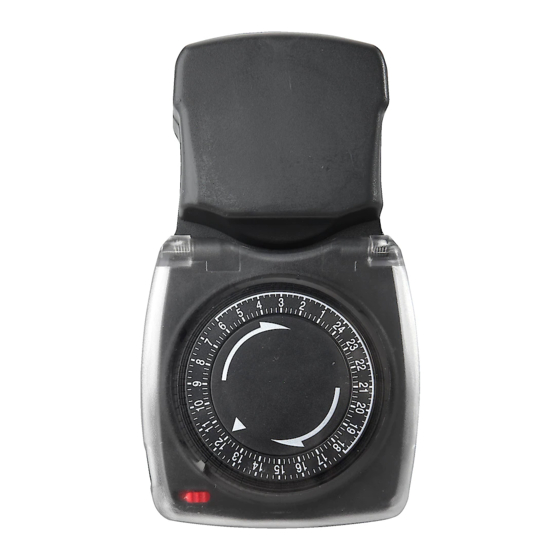

Product description
Timer with day function. Minimum timer activation time:
15 minutes. Switch for selecting timer control or continuous
wall outlet function.
1. Time segment tappets
2. Current time indication arrow
3. Selector switch
4. Time setting dial
GREAT BRITAIN • CUSTOMER SERVICE
tel: 0845 300 9799 internet: www.clasohlson.com/uk
e-mail customerservice@clasohlson.co.uk
Model EMT445
2
4
3
1
Use as a standard wall plug
Set the selector switch (3) to the ( | ) position. Connect the light,
appliance, etc. and make sure that it is turned on.
Timer controlled
The time setting dial (4) is marked with the hours in a day
(1–24 hrs).
Setting the timer
Example: If you want the timer to activate at 10 pm
(22:00) and turn off at 11 pm (23:00): Press in the 4
tappets spanning 22 and 23. The timer will then activate
between 10 pm and 11 pm and then deactivate and will
not reactivate until 10 pm the following evening.
Setting the current time
1. Set the current time by turning the dial clockwise until
the arrow is aligned with the current time (2).
2. Set the selector switch (3) to the ¿ position.
Troubleshooting
The connected device • Make sure that the product
does not turn on.
• Make sure that the connected
The product doesn't Make sure that the selector
seem to work off switch (3) is in the ¿ position.
the timer. The product
is on all the time.
Disposal
This product should be disposed of in accordance with
local regulations. If you are unsure how to proceed,
contact your local authority.
Specifications
Rated voltage 230 V AC, 50 Hz
Max resitive load 16 A
Max inductive load 460 VA
Protection class IP44
Accuracy ± 5 minutes/day
works by connecting it to
a standard wall outlet and
test if it works.
product is turned on.
