GB
Congratulations on your purchase of the wireless
Bluetooth audio transmitter and receiver.
The following pages explain the features and operations of the
transceiver. Please take a few moments to read this quick start guide.
Overview
The transceiver is a sleek and compact Bluetooth audio transmitter that
seamlessly streams Hi-Fi digital audio wirelessly from an audio source
like your TV or wired music system to a Bluetooth receiver like your
Bluetooth headphones or speakers.
Also it's a Hi-Fi Bluetooth music receiver that streams high quality audio
wirelessly from any Bluetooth enabled transmitter like Smartphone,
Computer or Tablet to any music system or powered speakers.
Incorporating the high quality Qualcomm® aptX™ Low Latency audio
streaming codec and digital optical Toslink connection, transceiver
provides Hi-Fi digital audio streaming with Low Latency.

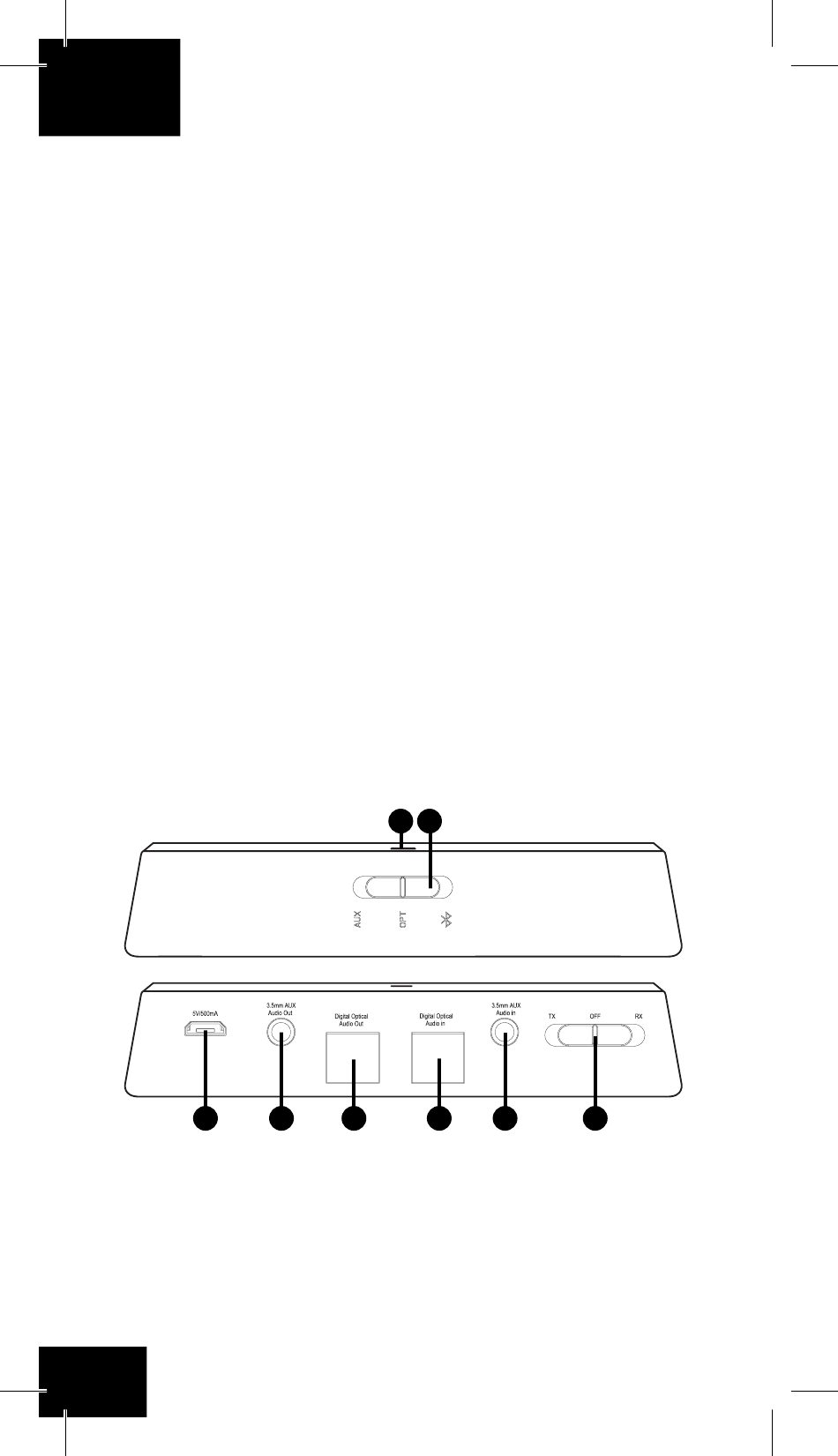

1. LED indicator
2. Multifunction switch (MFS) – AUX / OPT / Pairing
3. Micro USB power input
4. 3.5mm AUX audio out
5. Toslink optical audio out
6. Toslink optical audio in
7. 3.5mm AUX audio in
8. TX/RX toggle and power off switch
1 2
3 4 5 6 7 8
Note: The audio inputs are used with TX mode only. When in TX mode,
transceiver needs an audio source to transmit. It must be fed an audio
signal from a connected device such as a television, video game sys-
tem, Computer, mp3 player, etc.
The audio outputs are used with RX mode only – When in RX mode,
transceiver is receiving an audio signal and passing that signal from
its output to the input of some type of amplifi cation device like a home
stereo, speaker, car audio, etc.
