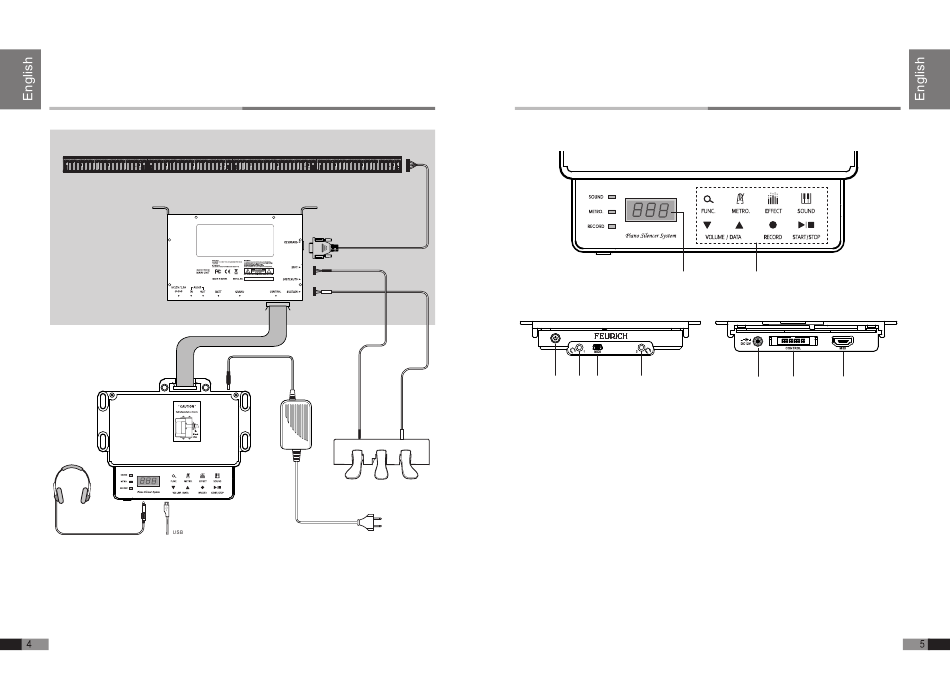

Connection Diagram of FEURICH BASIC

PIANO
Piano Keyboard Sensor
Main Unit
MIDI
Headphone

Control Unit

Black
White
Power Supply
Black White
Soft Damper/Sostenuto
AC 110~240V
Control Unit
Top view
①
Front view
③ ④ ⑤ ④
① DISPLY: Shows the selected mode and value.
② T OUCH BUTTONS: Select Function/ Metronome/ Effect/ Sound/ Volume/Data/
Record/ Start/ Stop buttons
③ POWER: Turns the system on and off
④ H EADPHONES: You can monitor the sound by connecting the headphones.
⑤ USB PORT(Device): Connects with PC through USB (USB MIDI, System Upgrade)
⑥ DC JACK: System power is provided through use of power adaptor
⑦ CONTROL: Connects with Main Unit
⑧ MIDI: Connect with external MIDI device through MIDI extension cable (Option).
②
Rear view
⑥ ⑦ ⑧
