Tinkerforge Outdoor Weather Station WS-6147
Instruction manual

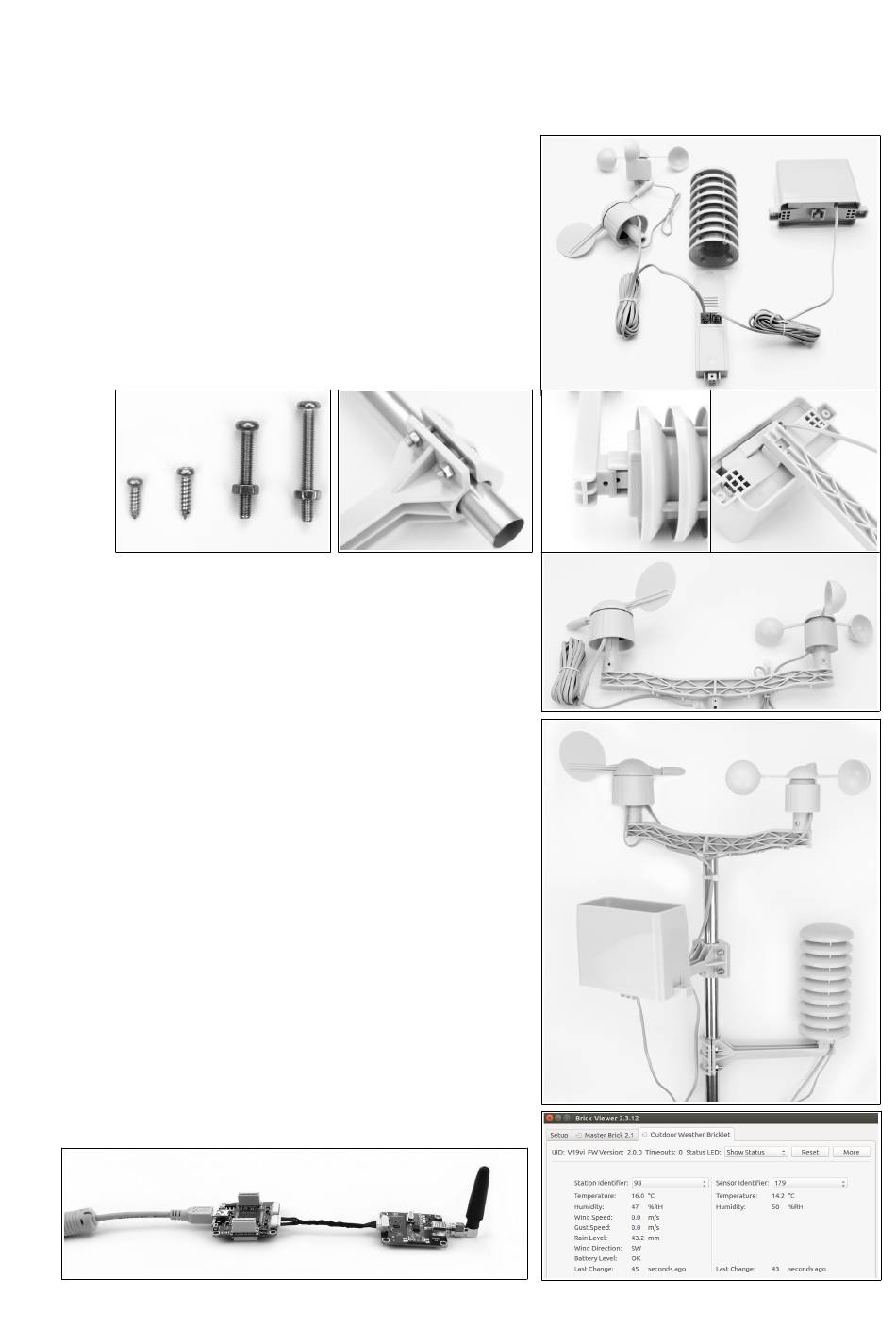

Step 1:
1. Pull the radio transmitter out of the cylindrical enclosure.
(Open the battery case and pull it out with a bit of force)
2. Connect the anemometer with the wind direction sensor.
3. Put the cable of the anemometer in the port of the radio
transmitter with the label „WIND".
4. Put the cable of the rain gauge in the port of the radio
transmitter with the label „RAIN".
5. Insert two AA-Batteries in the battery case of the
transmitter and close it.
6. Push the radio transmitter back in the enclosure.
2
A1
A2
Step 2:
1. Put the two poles together. The two little holes have to
be at the end of the pole.
2. Undo the four screws of the plastic arms. Don't unscrew
the completely!
3. Slide the arms on the pole. (Picture 3)
4. Put them to the correct position and fasten the screws.
5. Put the sensors on the intended arms and fasten them
with the included screws. (Description: Picture 2).
Pic 4: 1 x B1 | Pic 5: 1 x A2 | Pic 6: 1 x A1, 3 x B2
Step 3:
1. Secure the cables with the included cable ties.
2. Now the weather station is ready for work.
Step 4:
1. Connect the Tinkerforge Outdoor Weather Bricklet via
Bricklet Cable with the Master Brick. (Picture 8)
2. Connect the Master Brick via USB cable with the
computer.
3. Start the Brick Viewer and wait for at least 1 minute (The
weather station sends data to the receiver in one-minute
intervals).
4. You can now see the data of the weather station in Brick
Viewer. (Picture 9)
8
Bitte wenden – deutsche Übersetzung auf der Rückseite
3
B1
B2
1
4
5
6
7
9
