You are holding a device which will definitely
help you in your work with its versatility. This
detector is able to detect and signal the location
of AC voltage, metals and pins. It also has a
built-in measuring tape and a pencil holder
which is refillable anytime with a standard
pencil.
M f
ain Unctions
Locates pins
•
Detects metal nails and wooden pins.
•
Scans AC voltage, detects phases.
•
Detects metal, finds nails, pipes and other
•
metal objects.
Built-in measuring tape.
•
Automatic off switch.
•
U
sage
The device can be used in the following
situations:
Locating metal pipes at a building site.
•
Locating electrical distribution boxes, vents,
•
water system pipes, sewage pipes.
Finding electrical phase under floorings, walls
•
or plaster.
Length measuring
•

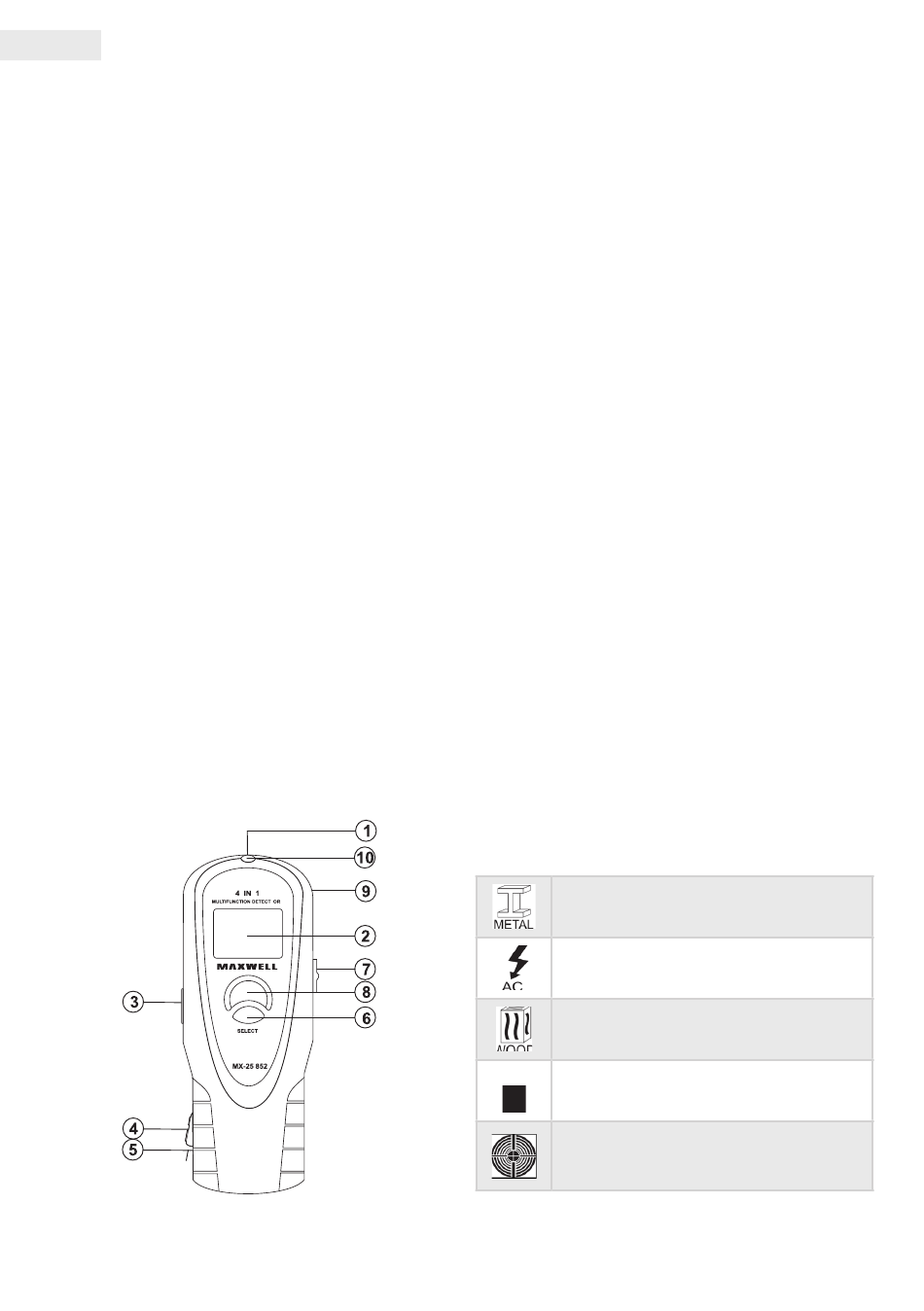

1. led light
When the detector signals a found object, the
red LED will be lit.
2. lcd display
3. test button
Hold it down for more than 1 second and the
device will turn on. The device will remain in the
mode previously set. For locating objects keep
this button pressed.
4. PusH button
When finished with the measuring, press this
button and the tape will retract into the device.
5. Measuring tape
Just pull the tape out for usage.
6. select button
To select the desired function.
7. Pencil slider
This button slides the previously supplied pencil
from the device.
8. Mark button
In some cases marking the actual location is
needed, but you can not reach it with a pencil or
it is not around. By pressing this button you can
mark the wall. This is way more precise than the
pencil, especially when you need to mark the
positions of small nails/pins.
9. Pencil holder
A hole suitable for a standard size pencil. Place
the pencil into it with the tip down.
10. lining
If the device detects something, you can easily
mark the spot by inserting the pencil into the
lining.
i
cons on tHe
metal detecting mode
phase detecting mode
(wooden) pin mode
Low battery signal
(Visible if the device is calibrated or the locator
d
isplay
Full result icon
finds something.)
