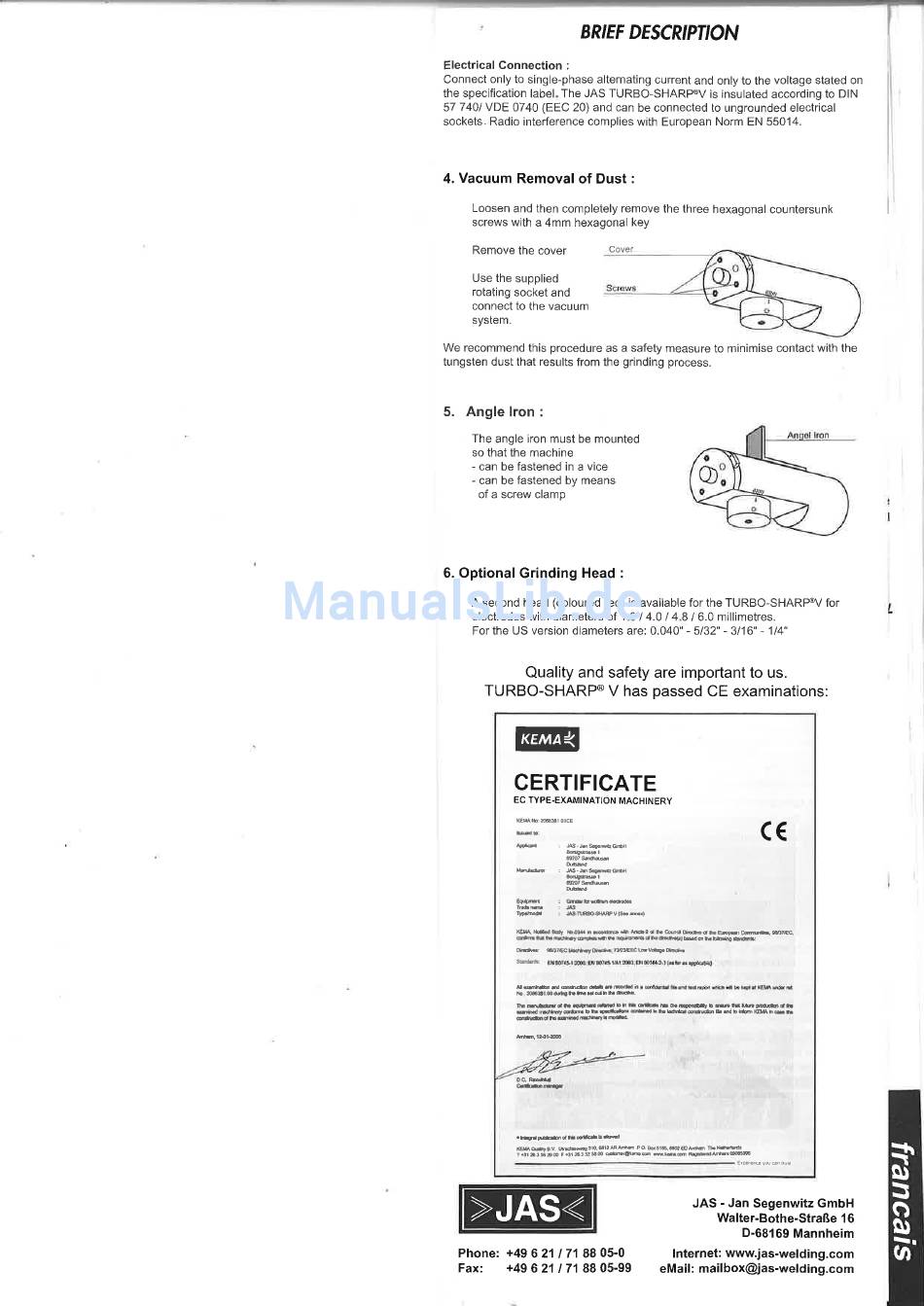

BRIEF
DESCRIPT'ON
Electrical Gonnection
:
Connect only
to
single-phase alternating current and only to the voltage stated
on
the specification
label
The JAS TURBO-SHARP@V is insulated according to
DIN
57 7401
VDE
0740 (EEC 20) and can be connected to ungrounded electrical
sockets
Radio interference complies with European Norm EN 55014.
4.
Vacuum Removal of Dust
:
Loosen and then completely remove the three
hexagonal countersunk
screws with a 4mm hexagonal key
Remove the cover
Cover
Use the supplied
rotating socket and
connect
to
the vacuum
system.
We recommend
this
procedure as
a
safety measure to minimise contact with the
tungsten dust
that
results from the
grinding
process.
5.
Angle lron
:
The angle iron must be mounted
so that
the
machine
- can be fastened
in
a
vice
- can be fastened by means
of a screw clamp
6.
Optional Grinding
Head
:
A second head (coloured red)
is
available for the
TURBO-SHARP@V
for
electrodes with diameters
of
1 0
I 4.0
I
4
8
I
6.0 millimetres.
For
the
US version diameters are: 0.040"
-
5132"
-
3116"
-
114"
Quality and safety are important to
us.
TURBO-SHARP@
V has passed CE examinations:
@
CERTIFICATE
EC
TYPE-EXAMINATION MACHINERY
C(
: s.hbdqü
: N-bæe#
ffi
: tuktr@
rW : ßlrMvt*il4
qwÐ
bMh@ÈAÉadñMÚ*dhry@ø&
ó Eh
't4ñ
h @dhryt
&
d
h W ffi
dù:
g7ÃcÞÉæÉbv+tú
Affidffidæ¡úh
&@|fi@hhddhùd*-
tuñdù
@tr5h
* úbtu@b ¡mktu!ffidh
Ú# nr@tu
bh É dh hfr ffi
e
d bb sh-
h
ffidh.dnÈl.ú
.¡Født@btu
mús.v |ffi!ro,or2f
ffi tok51Á@æffi
hffi
r.!r-r5åÐm t.rr6!s$m(¡l¡t4æú úlõ6
l@^Ñffi
Phone: +49
6
2'l / 71 88 05-0
Fax:
+49 6 21
/ 71 88 05-99
JAS - Jan Segenwitz GmbH
Walter-Bothe-Straße
1
6
D-68169 Mannheim
lnternet: www.jas-welding.com
eMail:
mailbox@jas-welding.com
