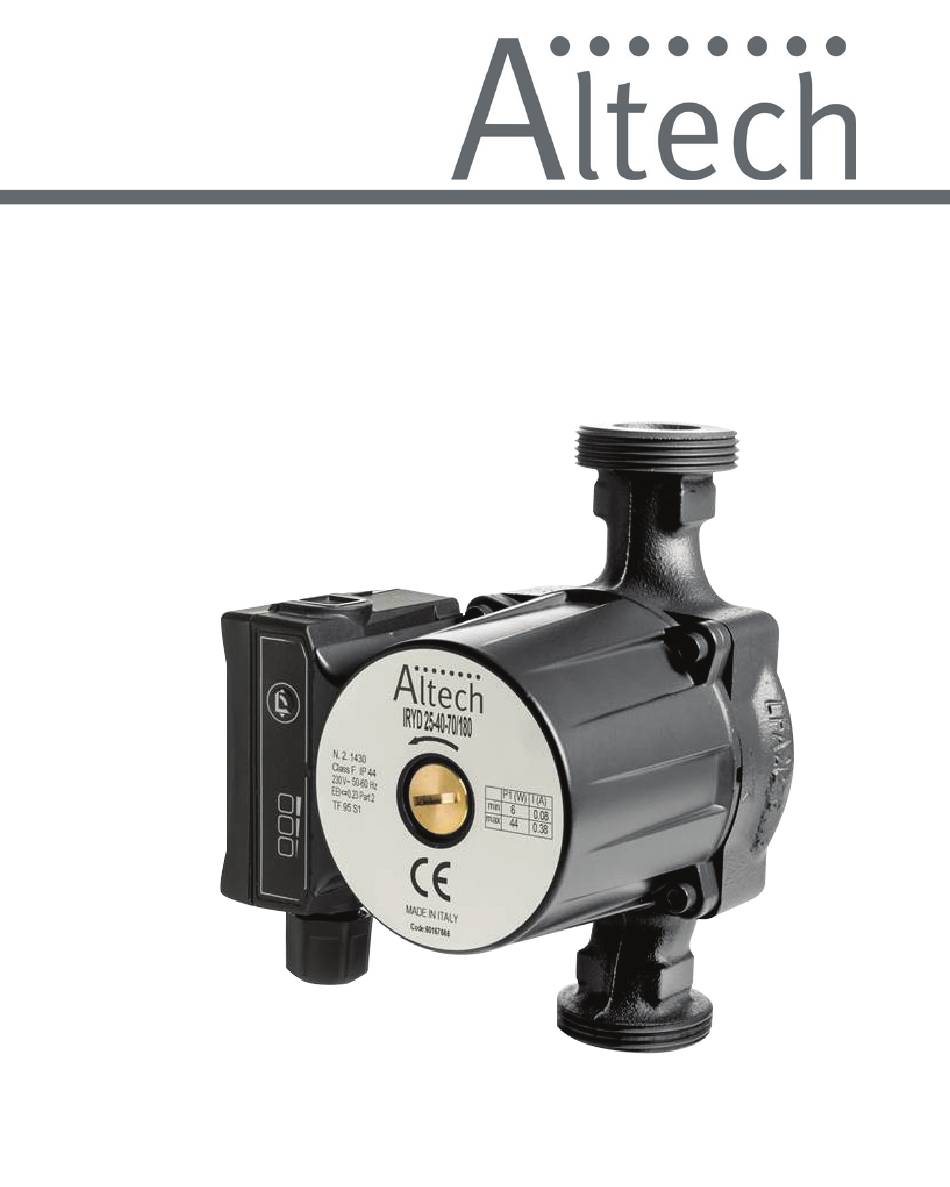

IRYD 25-40-70/180 ISTRUZIONI INSTRUKCJA OBSŁUGI USER'S MANUAL INSTALLATIONSANWEISUNG...
Seite 2
25-40-70/180, do której ta deklaracja się odnośi są zgodne z poniższymi dyrektywami i normami: DECLARATION OF CONFORMITY CE We, xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx, declare under our exclusive responsibility that the IRYD 25-40-70/180 products to which this declaration refers comply with the following directives and standards: EG-KONFORMITÄTSERKLÄRUNG Die Firma xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx –...
Seite 3
IRYD 25-40-70/180 L’apparecchio può essere utilizzato da bambini di età non inferiore a 8 anni e da persone con ridotte capacità fisiche, sensoriali o mentali, o prive di esperienza o della necessaria conoscenza, purché sotto sorveglianza oppure dopo che le stesse abbiano ricevuto istruzionirelative all’uso sicuro dell’apparecchio e alla comprensione dei pericoli ad esso inerenti.
Seite 4
IRYD 25-40-70/180 PN MAX 1,0 MPa (10 bar) Temperatura acqua Temperatura ambiente Temperatura wody Temperatura otoczenia Water Temperature Ambient Temperature Wassertemperatur Raumtemperatur IRYD 25-40-70/180 FT C° AT C° P MIN (90°C) 0,1 MPa (1 bar)
Seite 5
IRYD 25-40-70/180 - Il circolatore non è adatto a pompare liquidi infiammabili o pericolosi. - Pompa nie jest przeznaczona do pompowania cieczy łatwopalnych lub niebezpiecznych. - The circulator is not suitable for pumping inflammable or dangerous liquids. - Die Umlaufpumpe ist nicht zum Pumpen von entflammbaren oder gefährlichen Flüssigkeiten...
Seite 6
IRYD 25-40-70/180 Indeks Efektywności Energetycznej - EEI Energy Efficiency Index - EEI ≤ 0,23 IRYD 25-40-70/180 Radiatori Riscaldamento a pavimento Grzejniki Ogrzewanie podłogowe Radiators Underfloor Heating Kühler Fußbodenheizung...
Seite 7
IRYD 25-40-70/180 IRYD 25-40-70/180 Q (m3/h) Q (m3/h)
Seite 8
IRYD 25-40-70/180 IT - Attenzione acqua ad alta temperatura PL - Uwaga, woda o wysokiej temperaturze GB - Caution: Hot water! DE - Vorsicht! Sehr heißes Wasser...
Seite 9
IRYD 25-40-70/180 IT - Temperatura elevata PL - Wysoka temperatura GB - High temperature DE - Hohe Temperatur...
Seite 12
IRYD 25-40-70/180 1 x 230V, 50-60 Hz H05RR-F 3 x 0,75 mm STANDARD...
Seite 13
IRYD 25-40-70/180 NIESTANDARDOWO / NO STANDARD...
Seite 14
IRYD 25-40-70/180 Curva fissa Wykres stały Fixed curve Feste Kennlinien IT - Per un rapido sfiato impostare la pompa alla velocità 3 per 10'. Al termine vedi pagine: 15. PL - W celu szybkiego odpowietrzenia uruchomić pompę z prędkością3 na 10'. Po zakończeniu patrz strony: 15.
Seite 15
IRYD 25-40-70/180 IT - Il circolatore non richiede alcun tipo di manutenzione. All’inizio della stagione invernale assicurar- si che l’albero motore non sia bloccato. PL - Wirnik nie wymaga żadnego rodzaju konserwacji. Z początkiem sezonu zimowego należy sprawdzić czy wał silnika nie jest przypadkiem zablokowany.
Seite 16
IRYD 25-40-70/180 Riscaldamento a pavimento Ogrzewanie podłogowe Underfloor heating Fußbodenheizung Usare curva fissa o pressione proporzionale. Należy użyć charakterystyki stałej lub ciśnienia proporcjonalnego. Use fixed curve or proportional pressure. Feste Kennlinien verwenden oder Proportionalen Druck. Radiatori Grzejniki Radiators Kühler Usare pressione proporzionale.
Seite 17
IRYD 25-40-70/180 CHARAKTERYSTYKA STAŁA - FIXED CURVE - CURVA FISSA - FESTE KENNLINIEN Velocità - Prędkość - Speed - Geschwindigkeit CHARAKTERYSTYKA CIŚNIENIA PROPORCJONALNEGO - PROPORTIONAL DIFFEREN- TIAL PRESSURE - PRESSIONE DIFFERENZIALE PROPORZIONALE - PROPORTIONAL DIFFERENZDRUCK Velocità - Prędkość - Speed - Geschwindigkeit...
Seite 18
IRYD 25-40-70/180 ALARM! LEGENDA ALLARMI PAG. 20/21 - OPIS ALARMÓW NA STRONIE 20/21 - LEGEND ALARMS PAGE 20/21 - LEGENDE DER SEITE DER ALARME 20/21 RESET...
Seite 19
IRYD 25-40-70/180 RESET LEGENDA ALLARMI PAG. 20/21 - OPIS ALARMÓW NA STRONIE 20/21 - LEGEND ALARMS PAGE 20/21 - LEGENDE DER SEITE DER ALARME 20/21 RESET SERWIS Richiedere assistenza. Zadzwoń po pomoc Call assistance Kundendienst anfordern...
Seite 20
IRYD 25-40-70/180 LEGENDA - LEGENDA - KEY - ZEICHENERKLÄRUNG IT - 2 Lampeggi: circolatore bloccato/perdita di controllo sulla fase PL - 2 mignięcia: zablokowany cyrkulator/utrata kontroli w fazie GB - 2 Flashes: circulator blocked/loss of control on phase DE - 2 Blinksignale: Umwälzpumpe blockiert / Kontrollverlust auf Phase IT - Problemi al microprocessore o di cortocircuito interno PL - Uszkodzenie mikroprocesora lub wewnętrzne zwarcie...
Seite 21
IRYD 25-40-70/180 LEGENDA - KEY - LEGENDA - ZEICHENERKLÄRUNG IT - Vai alla pagina PL - Przejść do strony GB - Go to page DE - Gehe zu Seite IT - Premi il tasto RESET PL - Wcisnąć przycisk RESET GB - Press RESET DE - RESET-Taste drücken...
Seite 22
IRYD 25-40-70/180 RISOLUZIONE PROBLEMI - ROZWIĄZANIE PROBLEMÓW - TROUBLESHOOTING - FEHLERBEHEBUNG IT - 2 Lampeggi: circolatore bloccato/perdita di controllo sulla fase PL- 2 Mignięcia: wirnik zablokowany / zanik fazy GB - 2 Flashes: circulator blocked/loss of control on phase DE - 2 Blinksignale: Umwälzpumpe blockiert / Kontrollverlust auf Phase IT - La pompa tenta un riavvio utilizzando algoritmi per eseguire lo sblocco automatico.
Seite 23
IRYD 25-40-70/180 SMALTIMENTO lo smaltimento di questo prodotto o di parte di esso deve essere effettuata in modo consono: 1. Usare i sistemi locali, pubblico privati, di raccolta dei rifiuti 2. Nel caso in cui non fosse possibile, contattare Dab Pumps o l’officina di assistenza autorizzata più...
Seite 24
IRYD 25-40-70/180 INFORMAZIONI • Domande frequenti (FAQ) riguardanti la direttiva sulla progettazione ecocompatibile 2009/125/CE che stabilisce un quadro per l’elaborazione di specifiche per la progettazione ecocompatibile di prodotti connessi all’energia e suoi regolamenti attuativi: http://ec.europa.eu/enterprise/policies/sustainable-business/documents/eco-design/guidance/files/20110429_faq_ en.pdf • Linee guida che accompagnano i regolamenti della commissione per l’applicazione della direttiva sulla progettazione ecocompatibile: http://ec.europa.eu/energy/efficiency/ecodesign/legislation_en.htm - v.
