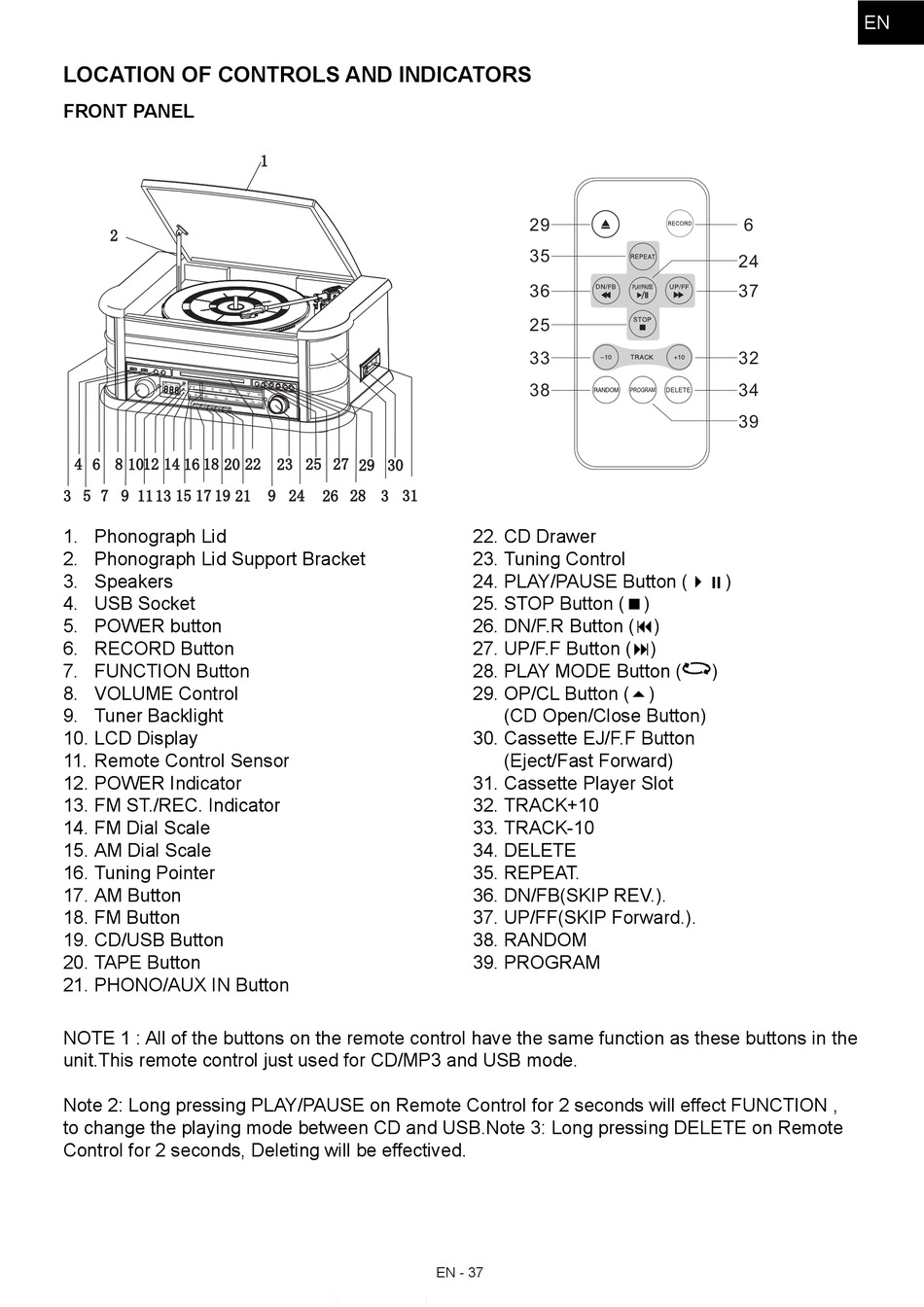

LOCATION OF CONTROLS AND INDICATORS

FRONT PANEL

1. Phonograph Lid
2. Phonograph Lid Support Bracket
3. Speakers
4. USB Socket
5. POWER button
6. RECORD Button
7. FUNCTION Button
8. VOLUME Control
9. Tuner Backlight
10. LCD Display
11. Remote Control Sensor
12. POWER Indicator
13. FM ST./REC. Indicator
14. FM Dial Scale
15. AM Dial Scale
16. Tuning Pointer
17. AM Button
18. FM Button
19. CD/USB Button
20. TAPE Button
21. PHONO/AUX IN Button
NOTE 1 : All of the buttons on the remote control have the same function as these buttons in the
unit.This remote control just used for CD/MP3 and USB mode.
Note 2: Long pressing PLAY/PAUSE on Remote Control for 2 seconds will effect FUNCTION ,
to change the playing mode between CD and USB.Note 3: Long pressing DELETE on Remote
Control for 2 seconds, Deleting will be effectived.
29
35
36
25
33
38
22. CD Drawer
23. Tuning Control
24. PLAY/PAUSE Button ()
25. STOP Button ()
26. DN/F.R Button ()
27. UP/F.F Button ()
28. PLAY MODE Button (
29. OP/CL Button (5)
(CD Open/Close Button)
30. Cassette EJ/F.F Button
(Eject/Fast Forward)
31. Cassette Player Slot
32. TRACK+10
33. TRACK-10
34. DELETE
35. REPEAT.
36. DN/FB(SKIP REV.).
37. UP/FF(SKIP Forward.).
38. RANDOM
39. PROGRAM
