Operating Instructions
RF-GC-01 Mobile Gamepad for Smartphone
Item No. 1633166
Intended use
Use the wireless gamepad to control your smartphone or tablet. Use it in combination with
VR goggles. Communication between wireless gamepad and mobile device happens via
Bluetooth. Android, iOS and Windows
For safety and approval purposes, you must not rebuild and/or modify this product. If you use
the product for purposes other than those described above, the product may be damaged. In
addition, improper use can result in short circuits, fires, or other hazards. Read the instructions
carefully and store them in a safe place. Make this product available to third parties only
together with its operating instructions.
This product complies with the statutory national and European requirements.
All company names and product names are trademarks of their respective owners. All rights
reserved.
Delivery content
• Gamepad
• USB charging cable (80 cm)
• Operating instructions
Up-to-date Operating Instructions
Download the latest operating instructions at www.conrad.com/downloads or scan the QR code
shown. Follow the instructions on the website.
Safety instructions
Please read the operating instructions carefully and pay particular attention to
the safety instructions. We do not assume liability for injuries/material
damages resulting from failure to observe the safety instructions and the
information in these operating instructions regarding the proper handling of
the product. Furthermore, in such cases, the warranty/guarantee will be null
and void.
a) General information
• The product is not a toy. Keep out of the reach of children and pets.
• Do not leave packing materials unattended. It may become a dangerous plaything
for children.
• Protect the product from extreme temperatures, direct sunlight, strong vibrations,
high humidity, moisture, combustible gases, vapours and solvents.
• Never expose the product to mechanical stress.
• Please handle the product carefully. It can be damaged by impact, blows, or by
being dropped, even from a low height.
• Observe the safety instructions and operating instructions of other devices the
product is connected to.
• If you have any questions that are not answered in these operating instructions,
please contact our technical customer service or other professionalsIf you have
questions which remain unanswered by these operating instructions, contact our
technical support service or other technical personnel.
b) Li-Po batteries
• The rechargeable battery is permanently built into the product and cannot be
replaced.
• Never damage the rechargeable battery. Damaging the casing of the rechargeable
battery might cause an explosion or a fire! Unlike conventional batteries /
rechargeable batteries (e.g. AA or AAA type), the casing of the Li-Po rechargeable
battery does not consist of a thin sheet but rather a sensitive plastic film only.
• Never short-circuit the contacts of the rechargeable battery. Do not throw the
battery or the product into fire. There is a danger of fire and explosion!
• Charge the rechargeable battery regularly, even if you do are not using the
product. Due to the rechargeable battery technology being used, you do not need
to discharge the rechargeable battery first.
• Never charge the rechargeable battery of the product unattended.
• When charging, place the product on a surface that is not heat-sensitive. It is
normal that a certain amount of heat is generated during charging.
operating systems are supported.
®

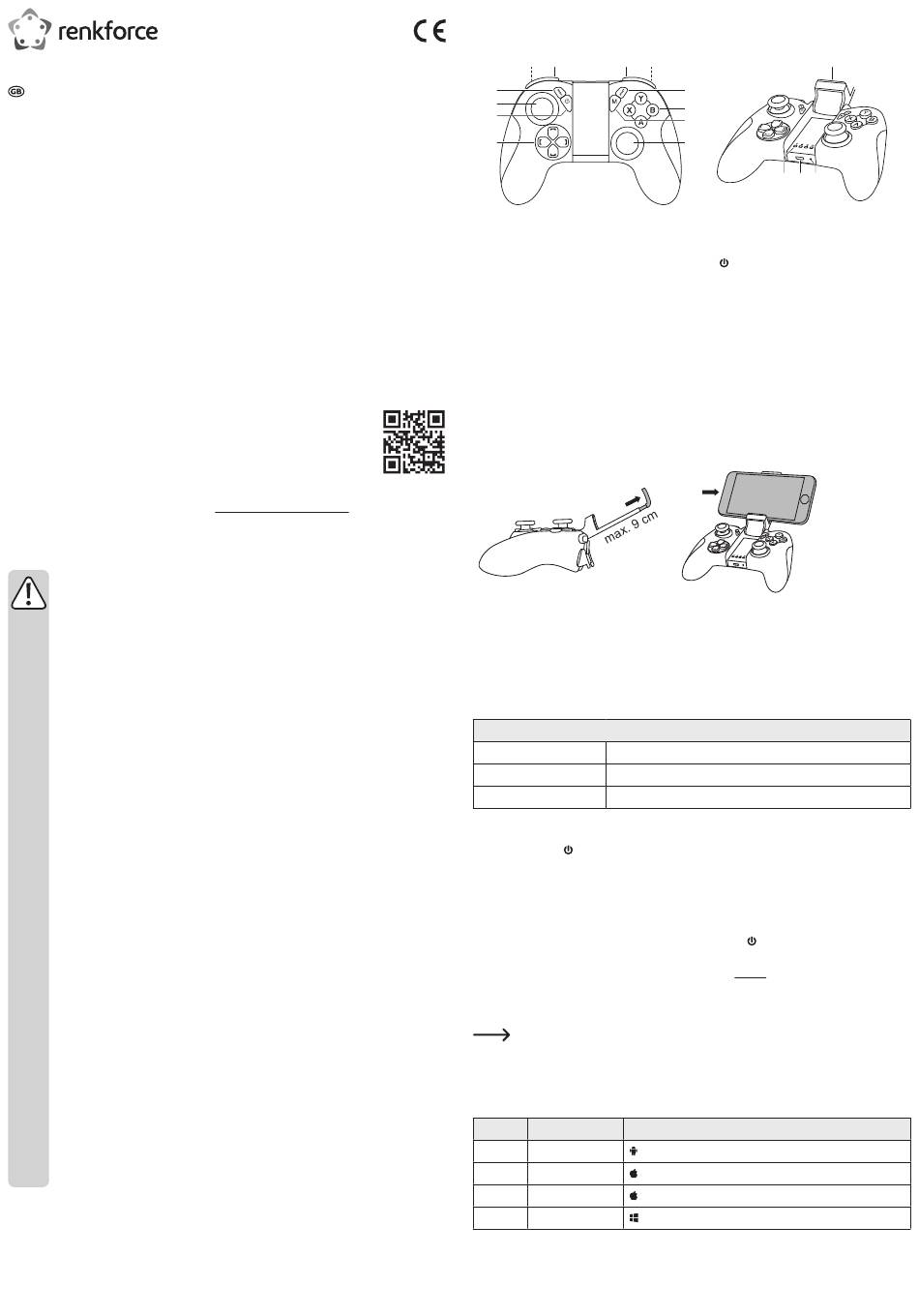

Operating elements
13 14 15 16
12
11
10
9
1 Hardware reset button
2 USB charging port
3 Battery indicator / Mode indicators
4 Mobile holder
5 START button
6 A/B/X/Y buttons
7 M (Mode) button
8 Right joystick / R3 button
Holding your device
Open the mobile holder, and place your mobile device into the unit. It supports mobile device
up to 9 cm width.
Charging the Battery
When using the gamepad for the first time, charge it fully first.
1. Connect the USB charging cable to the USB charging port (2).
2. Connect the other end of the USB charging cable to a powered USB device.
- It takes approx. 2.5 hours to fully charge the battery.
Battery indicator
Low battery The power indicator will flash in red slowly.
Charging The power indicator will light up red.
Fully charged The power indicator light will extinguish.
Powering ON/OFF
Press and hold the power button (10) to turn the unit on or off.
• If no Bluetooth connection is registered within 5 minutes, the gamepad turns off.
• If no user input is registered within 30 minutes the gamepad turns off.
Pairing
1. Press and hold the A/B/X/Y button (6) and then the
the unit, the battery indicator (3) will flash, it's now in pairing mode. The A/B/X/Y button
represents a different mode, please refer to chapter 'Modes' for more information.
2. On your mobile device, switch the keyboard language to English.
3. Activate Bluetooth on your mobile device. Then select "SC-B04-XXX".
The next time you turn on the gamepad, it will automtically pair with the mobile
device it was last paired.
Modes
Select the required mode by pressing the corresponding button according to the below table:
Button Mode OS
A Android LED indicator will flash in blue slowly.
B iOS iCade LED indicator will flash in yellow slowly.
X iOS LED indicator will flash in yellow slowly.
Y MTK / PC LED indicator will flash in green slowly.
• If you use a games emulator, make sure to read its instructions relevant to use of gamepads.
• For Android users, the gamepad supports the International Gamepad Standard if the left
joystick (11) moves the cursor in the main screen. Otherwise use MTK mode.
4
5
6
7
8
3 2 1
9 Directional buttons
POWER button
10
11 Left joystick / L3 button
12 SELECT button
13 L2 button
14 L1 button
15 R1 button
16 R2 button
power button (10) to switch on
