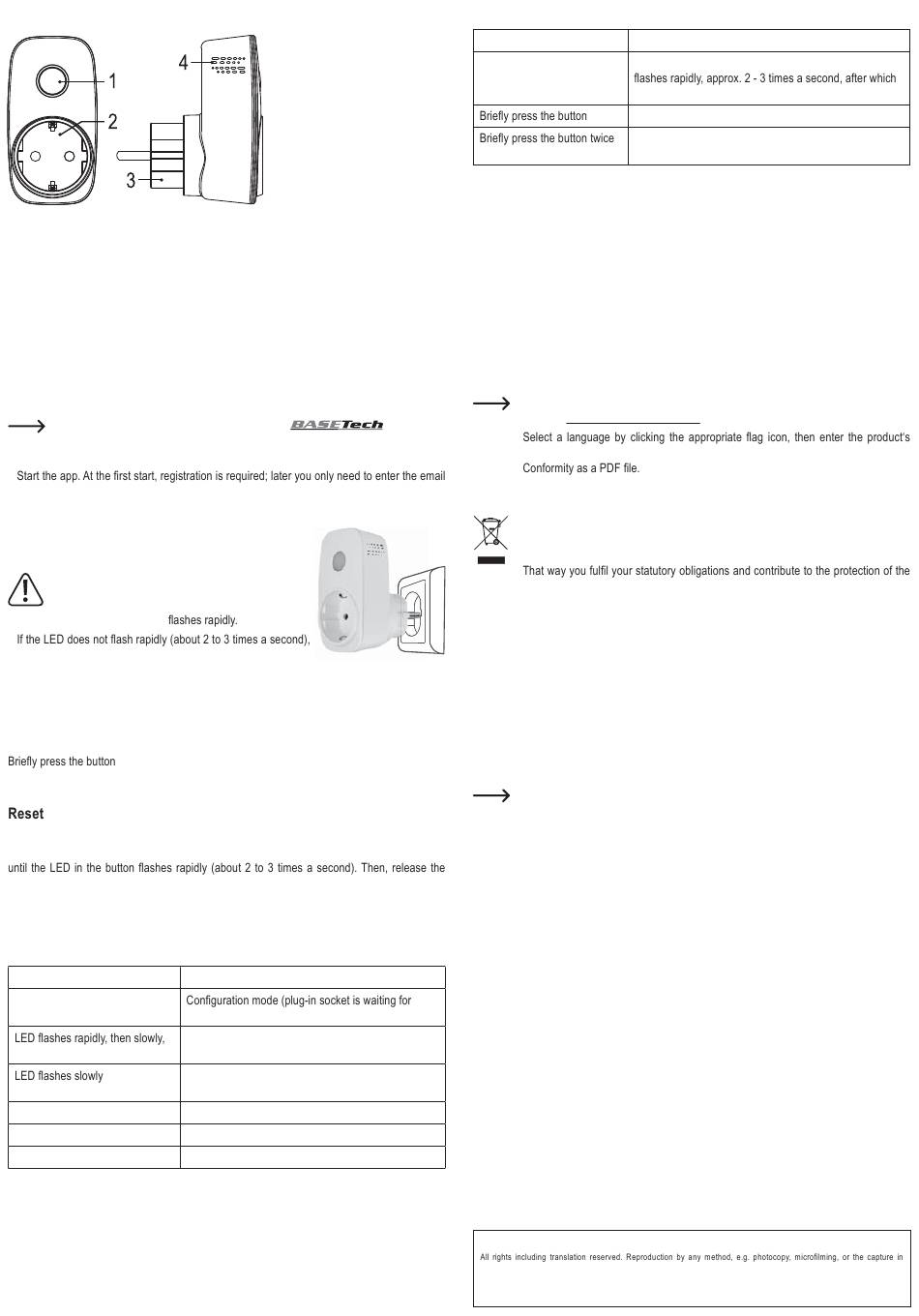

Control elements

1 Button for switching the connected load on/off, with display LED
(and white LED for night light function)
2 Shock-proof socket
3 Safety plug
4 Ventilation slots
Initial start up
Download app, start and register
• First, download the app from the respective app store (for iOS or Android). The app is free;
however, you may be charged for the amount of data downloaded, depending on your wire-
less service agreement.
For more information (Basetech Home Control,
app's operating instructions. This is available at the URL listed in the "Current User
Guide" chapter.
•
address/phone number and the password.
Connection of the plug-in socket
• Plug the plug-in socket into a proper earthed mains socket (wall
socket) for the public supply. While this is done, no load may be
connected to the plug-in socket.
Make sure that the ventilation slots are facing up-
wards, see illustration on the right.
• The indicator LED in the key (1)
press and hold the button (1) for at least 6 seconds.
Add the new plug-in socket in the app
Please observe the separate operating instructions for the app (see chapter „Current operating
instructions"). You'll need the password of your WLAN.
Switching the connected load on/off manually
(1) to switch the socket (2) and thus the connected load on or off.
The LED in the button (1) lights up when the socket is switched on.
The reset clears all saved settings and reactivates the factory settings.
Plug the plug-in socket into a mains socket. Hold down the button (1) for at least 6 seconds
button again.
Once the reset has been completed, the plug-in socket can be registered again as a new
device.

LED indicators

LED status
LED blinks rapidly
(about 2 - 3 times per second)
and then goes out
(approx. once every second)
LED is steady on
LED is off
LED shines white
Function
registration)
The plug-in socket was registered in the WLAN
No network connection, if necessary, reset the plug-in
socket and repeat the registration process
The socket on the front is turned on
The socket on the front is turned off
Night-light feature
Function of the control keys
Operation
Press and hold the button for
approx. 6 seconds
Care and cleaning
Before cleaning the device, disconnect the connected load from the plug-in socket. Then re-
move the plug-in socket from the power supply by pulling it out of the mains socket.
Disconnect a load that may be connected to the plug-in socket.
Never use abrasive cleaning agents, rubbing alcohol or other chemical solutions, since these
could damage the casing or even impair operation.
Use a dry, lint-free cloth to clean the product.
Dust can be very easily removed with a soft, clean brush and a vacuum cleaner.
Declaration of conformity (DOC)
We, Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau, hereby declare that this
product conforms to the 2014/53/EU directive.
The full text of the EU declaration of conformity is available at the following internet
address: www.conrad.com/downloads
) refer to the
order number in the search box. You can then download the EU Declaration of
Disposal
Electronic devices are recyclable materials and do not belong in the household
waste. Dispose of an unserviceable device in accordance with the relevant statutory
regulations.
environment!
Technical data
Transmitting frequency range ....... 2.412 - 2.472 GHz
Transmitting power ....................... 802 b 16 dBm
Operating voltage ......................... 230 V/AC, 50 Hz
Protection class ............................ I
Power rating ................................. resistive load max. 3680 W (230 V/AC, 16 A)
Load consumers with predominantly resistive load are e.g. incandescent lamps,
heaters, etc. Load consumers with inductive load are e.g., motors, ballasts, con-
ventional transformers, energy saving bulbs, etc.
Switch type ................................... relay (single-pole)
Socket with child protection .......... yes
Installation location ....................... dry, enclosed indoor rooms
Ambient conditions ....................... temperature 0 °C to +50 °C, relative humidity 40% to 85%
Dimensions ................................... 94 x 50 x 82 mm (L x W x H, including plug)
Weight .......................................... 133 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.
This publication represent the technical status at the time of printing.
© Copyright 2018 by Conrad Electronic SE.
Function
Resetting to the factory settings (LED in the button then
the plug-in socket can be registered again in the app)
Manually switch the socket on the front side on/off
Turn the night light on/off (button on the front panel turns
white when the night light is on)
802.11g: 14 dBm
802.11n: 13 dBm
inductive load 525.71 W (230 V/AC)
relative, noncondensing
