Clas Ohlson Z-Wave TZ68 Bedienungsanleitung

Z-Wave TZ68
Receiver Switch
Art.no 36-5741 Model TZ68G
Please read the entire instruction manual before using the product
and then save it for future reference. We reserve the right for
any errors in text or images and any necessary changes made
to technical data. In the event of technical problems or other
queries, please contact our Customer Services.
Note: The receiver switch is only intended for indoor use.
Product description
• This remote switch is intended to be used with Zipabox Duo
and other Z-wave-system products.
• Plug-in-type. Turns plugged in devices on/off, e.g. lamps.
• Supports 2-way communications, allowing the switch to
report its on/off status.
• Can be controlled using a smartphone or tablet via
a gateway such as the Zipabox Duo.
• Can also be controlled via remote control (sold separately).

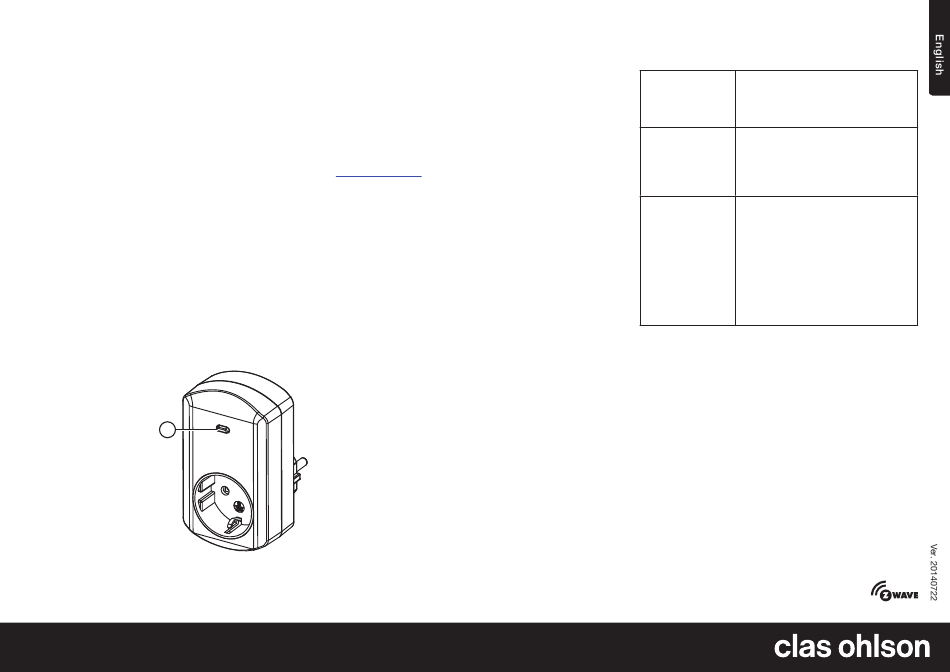

1. Multifunction button.
Controls the connected
device's power supply,
installs/removes
the switch from
1
your control device.
LED indicator.
GREAT BRITAIN • customer service tel: 0845 300 9799 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.com/uk
Installation
1. Plug the receiver switch into a wall socket.
2. Set your Z-wave-control device into learning mode
and press the Multifunction button in order to connect
the receiver switch.
3. Connect the light that you wish to control to the receiver
switch and turn the light on.
A comprehensive user manual is available at
www.tkbhome.com.
Removal
Set your Z-Wave control device in removal mode to remove
the receiver switch from the controller.
On/off (manual)
• To turn on the receiver switch manually press
the Multifunction button. The LED indicator will turn off and
the connected light will turn on.
• To turn off the receiver switch manually press
the Multifunction button. The LED indicator will turn on and
the connected light will turn off.
Care and maintenance
• Always disconnect the receiver switch from the wall socket
before cleaning.
• Clean the product using a lightly moistened cloth. Use only
mild cleaning agents, never solvents or corrosive chemicals.
Troubleshooting guide
The LED indicator • Check that the receiver switch is
is off and properly plugged into the electrical
the receiver switch socket.
does not work. • Check that the wall socket is live.
The LED indicator • Make sure the connected light is
is on but turned on.
the connected
light cannot be
controlled.
The LED indicator • Set the control device into learning
is on but mode and press the Multifunction
the receiver switch button on the switch.
does not respond • Make sure that the distance
to the control between the devices is not
device. too great.
• Make sure that there are no
wireless transmission hinders
such as other interfering wireless
devices, walls, ceilings, etc.
Disposal
This product should be disposed of in accordance with local
regulations. If you are unsure how to proceed, contact your
local council.
Specifications
Rated voltage 230 V, 50 Hz
Load capacity 3500 W
Range Up to 30 m line-of-sight
Frequency 868.42 MHz
