Panlux FENIX FXE-9001-C Gebrauchsanweisung Seite 3

FXE-9001-C
MODEL:
FXE-9003-C
FXE-1101-C
ENG |
INSTRUCTIONS
Before using or installing the luminaire, please read the instructions and follow safety rules. Installation should be provided by
qualified person or company.
Thank you for choosing the item of company PANLUX s.r.o.
Technical data
Material: plastic
Location: exteriors, interiors
Notice
Before using, check the product and make sure that it is not damaged, otherwise do not use it. Before every manipulation
make sure that mains electrical supply is disconnected. In case of damage do not repair or disassemble the product.
LED chips are not repleceable.
Infringement of any mentioned instruction can cause harm to health or property.

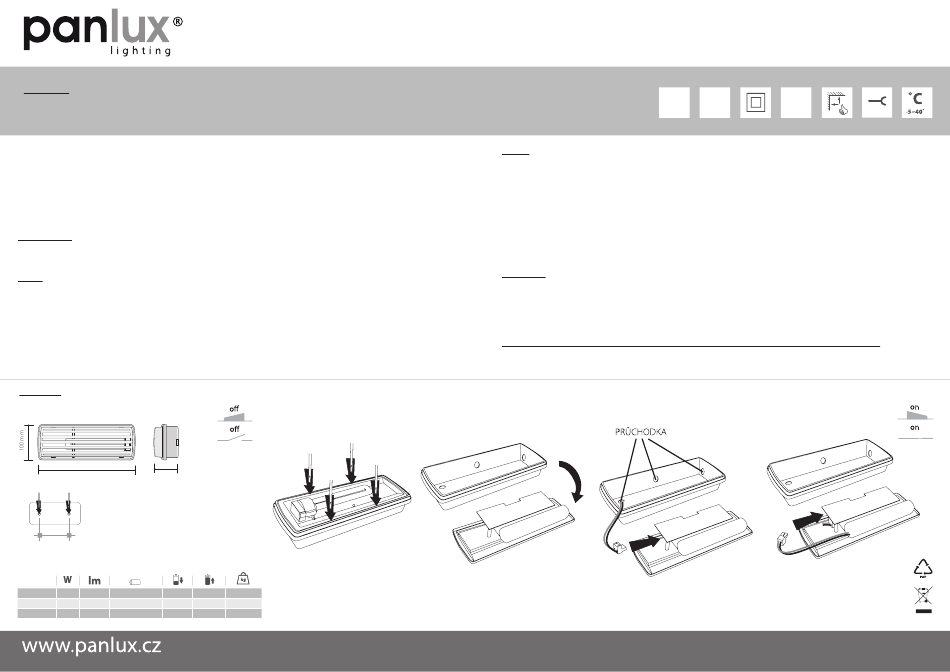

Installation
270 mm
70 mm
200mm
Model NiCd
FXE-9001-C 9W 120lm 3,6V; 1200mAh 1h
FXE-9003-C 9W 120lm 3,6V; 2500mAh 3h
FXE-1101-C 11W 3,6V; 1500mAh
160lm 1h
1 2
24h 580g
24h 690g
24h
625g
Testing
Testing should be made in a time, when the functionality and purpose of the whole emergency lighting system is affected
minimally.
Testing should be made regularly and in conformity with relevant regulations and laws. Make a note about each test in the
operating diary. During the testing watch the status of LED indicator (recharging of the battery), light source and lamp
autonomy.
1x day: test of the LED indicator, recharging of the battery
1x month: short function test of the battery and lighting source after disconnecting the mains supply.
1x year: full functionality test from battery by the time of autonomy, inspection of the autonomy, inspection of the battery
and light source.
Application
Under standard conditions, the charging of the battery is indicated by a single LED. The lamp turns on in the case of power
outage for at least the time stated above as autonomy or until the battery runs out. The luminaire automatically switches
back to the charging mode once the power is restored. This luminaire provides the emergency illumination in cases of
power outage.
If the product is mechanically damaged or connected unprofessionally guarantee cannot be allowed.
3
230V~50Hz
All right reserved.
230V
2G7
~50Hz
4 5
Technical data can be changed without previous notice.
