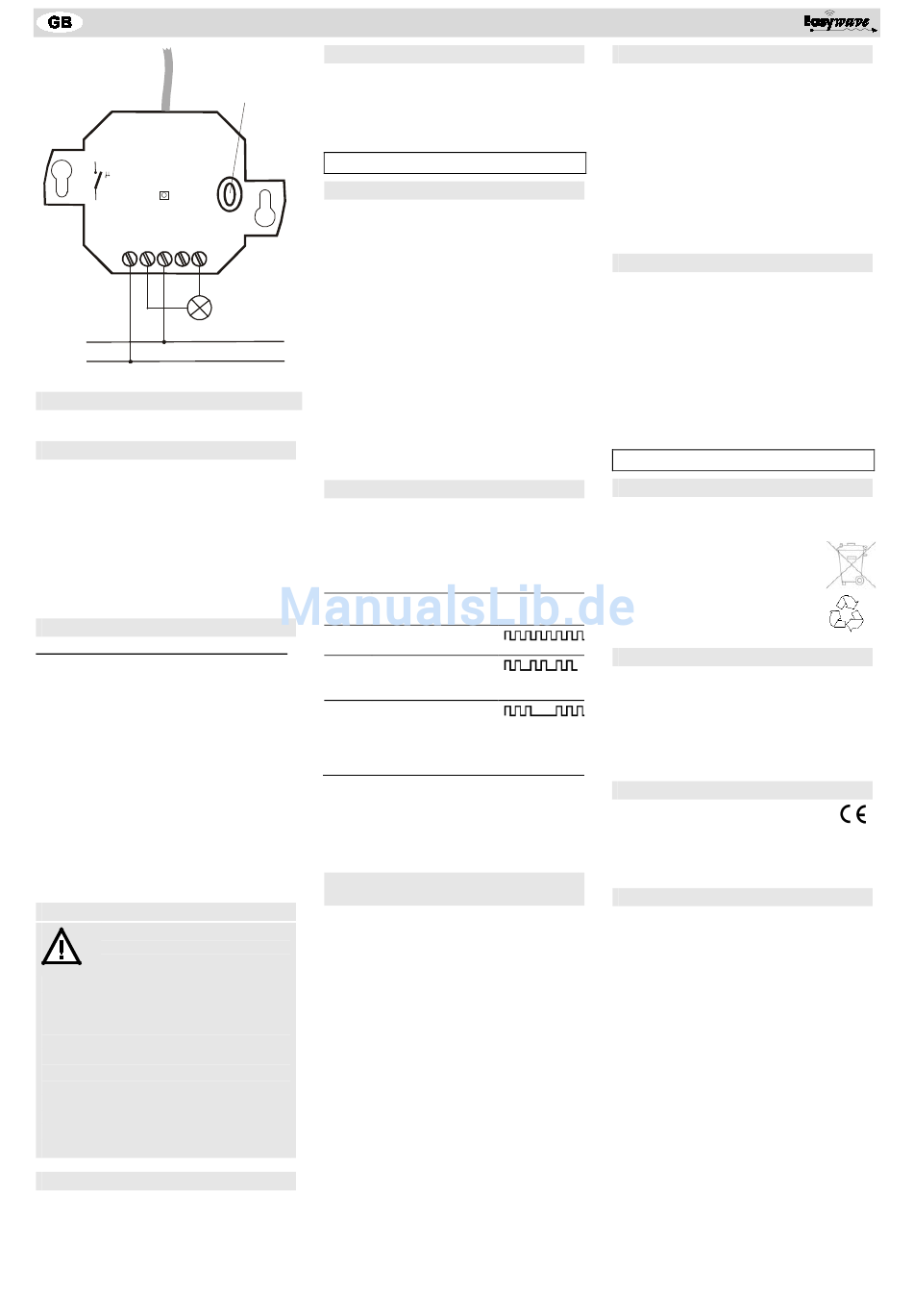

Junction Box Receiver RCJ01
Antenna
Programming Button
1
L 10A
N N L L 1
L
230 V
N
Model
RCJ01E5001-04 1-channel
Technical Data
Frequency: 868.30 MHz
Modulation: FSK
Power supply: 230 V AC / 50 Hz
Current consumption: approx. 35 mA
Output: 1 potential-loaded relay
contact (N.O.)
Max. contact rating: see Table of loads
Degree of Protection: IP20
Operating temperature: -20°C to +60°C
Table of Loads
Type of Load
Resistive Load:
Light bulbs, 230 V
Halogen lamps etc.
Inductive Load:
Halogen lamps with wound
transformers
(transformator at least 85% loaded)
Non-compensated or series-
compensated fluorescent lamps
with ferromagnetic ballasts
Parallel-compensated
fluorescent lamps with
ferromagnetic ballasts
Capacity EB: electronic
ballasts, electronic
transformers etc.
Safety Advice
Carefully read through these instruc-
tions before connecting and operat-
ing the unit!
Electrical installation may only be carried out
by a qualified electrician!
Observe the applicable laws, standards and
regulations as well as the manufacturer's instruc-
tions for the devices to be operated!
Have faulty units checked by the manufacturer!
Do not make any unauthorized alterations or
modifications to the unit!
The relay contact is only suitable for a single-
phase power supply!
Warning! Take care not to damage the anten-
na insulation! The antenna could be live!
Intended Use
This unit may only be used as an Easywave radio
control together with mains-powered devices!
The manufacturer shall not be liable for any damage
caused by improper or non-intended use!
Function
The Junction Box Receiver is designed for switching
mains-powered devices in the operating modes
ON/OFF and Timer.
with LED
The receiver can be operated by multi-channel
transmitters or single-channel transmitters.
Using the Junction Box Receiver
Start-Up
1. Mount the receiver in accordance with the on-
site conditions.
Note: The receiver fits into almost every junc-
tion box.
2. Connect the power supply and the devices to be
switched according to the connection diagram.
Caution! Observe the applicable electrical regu-
lations!
After connecting the receiver is in operating
mode. The LED is off.
3. Transfer the codes (A, B, C, D) of the transmit-
ters to the receiver (see section "Memorizing the
Transmitter Codes").
Mounting Advice: avoid mounting at the following
locations, because this will affect the range:
868.30 MHz
−
in a distribution box or housing made from metal
−
in the immediate vicinity of large metal objects
−
on the ground (or near it).
Programming and Operating Modes
For programming (see "Memorizing the Transmis-
sion Codes (Programming)" there are 3 program-
ming modes for the 3 operating modes of the re-
ceiver.
These programming modes are displayed by differ-
ent LED flashing patterns.
Prog Operating Mode
Mode
1 ON/OFF (AB)
(2-button operation)
max. load
2 ON/OFF (A/B/C/D)
(1-button operation)
>1,6 s: OFF
10 A / 2,300 VA
3 Timer mode
5 min (A), 10 min (B)
2.6 A / 600 VA 15 min (C), 20 min (D)
retrigger
(1-button operation)
You can change from the operating mode to the
10 A / 2,300 VA
programming mode 1 and from one programming
mode to the next by briefly (< 1.6 sec.) pressing the
programming button: Operating Mode –> Pro-
2.6 A / 600 VA
gramming Mode 1 –> Programming Mode 2 –>
Programming Mode 3 –> Operating Mode etc.
Memorizing the Transmission Codes
4 A / 920 VA
(Programming)
In the "Memorizing the Transmission Codes" mode
you can transfer the codes of your transmitters to
the receiver.
Note: Generally you only have to transfer the code
of one button per transmitter channel. The code of
the other transmitter buttons will be assigned auto-
matically.
1. Briefly (< 1.6 sec.) press the programming
button.
Programming mode 1 is activated. The LED
flashes. If necessary change the programming
mode (see "Programming and Operating
Modes").
2. Press and hold a transmitter channel button. As
soon as the code has been memorized, the LED
lights up for 4 sec. and then flashes again. Re-
lease the transmitter button.
3. Repeat step 2 with the other transmitters. You
can memorize up to 32 transmitter codes into
the receiver.
4. Briefly (< 1.6 sec.) press the programming
button to return to the operating mode.
Note: In case of a longer power failure program-
ming of the receiver remains.
Deleting Specific Transmission Codes
In the delete mode you can delete specific trans-
mission codes memorized by the receiver.
1. Keep the programming button pressed for more
than 1.6 sec. The delete mode is
activated. The LED flashes rapidly.
2. Press the selected transmitter channel button.
As soon as the code has been deleted, the LED
lights up for 4 sec. and then flashes again rapid-
ly.
3. Repeat step 2 with another transmitter or briefly
(< 1.6 sec.) press the programming button in or-
der to return to the operating mode.
Reset (Deleting Memory Completely)
In the reset mode you can delete all codes memo-
rized by the receiver.
1. Keep the programming button pressed for more
than 1.6 sec. The delete mode is
activated. The LED flashes rapidly.
2. Press the programming button again and keep it
pressed for more than 1.6 sec. If the memory
has been deleted completely, the LED lights up
for 4 sec. and then flashes again rapidly.
3. Briefly (< 1.6 sec.) press the programming
button to return to the operating mode.

General Information

Disposal
Waste electrical products should not be dis-
posed of with household waste!
Dispose of the waste product via a
collection point for electronic scrap or
via your specialist dealer.
Put the packaging material into the
LED Flashing
recycling bins for cardboard, paper and
Pattern
plastics.
Warranty
Within the statutory warranty period we undertake to
rectify free of charge by repair or replacement any
product defects arising from material or production
faults.
Any unauthorized tampering with, or modifications
to, the product shall render this warranty null and
void.
Conformity
This product complies with the essential
requirements of the R&TTE directive
1999/5/EG.
The Declaration of Conformity can be found on the
internet at: www.eldat.de.
Customer Service
If, despite correct handling, faults or malfunctions
occur or if the product was damaged, please contact
the company at the address below:
ELDAT GmbH
Im Gewerbepark 14
15711 Königs Wusterhausen
Germany
Phone: + 49 (0) 33 75 / 90 37-310
Fax: + 49 (0) 33 75 / 90 37-90
Internet: www.eldat.de
e-Mail: info@eldat.de
UM105250A 0214 D/GB
