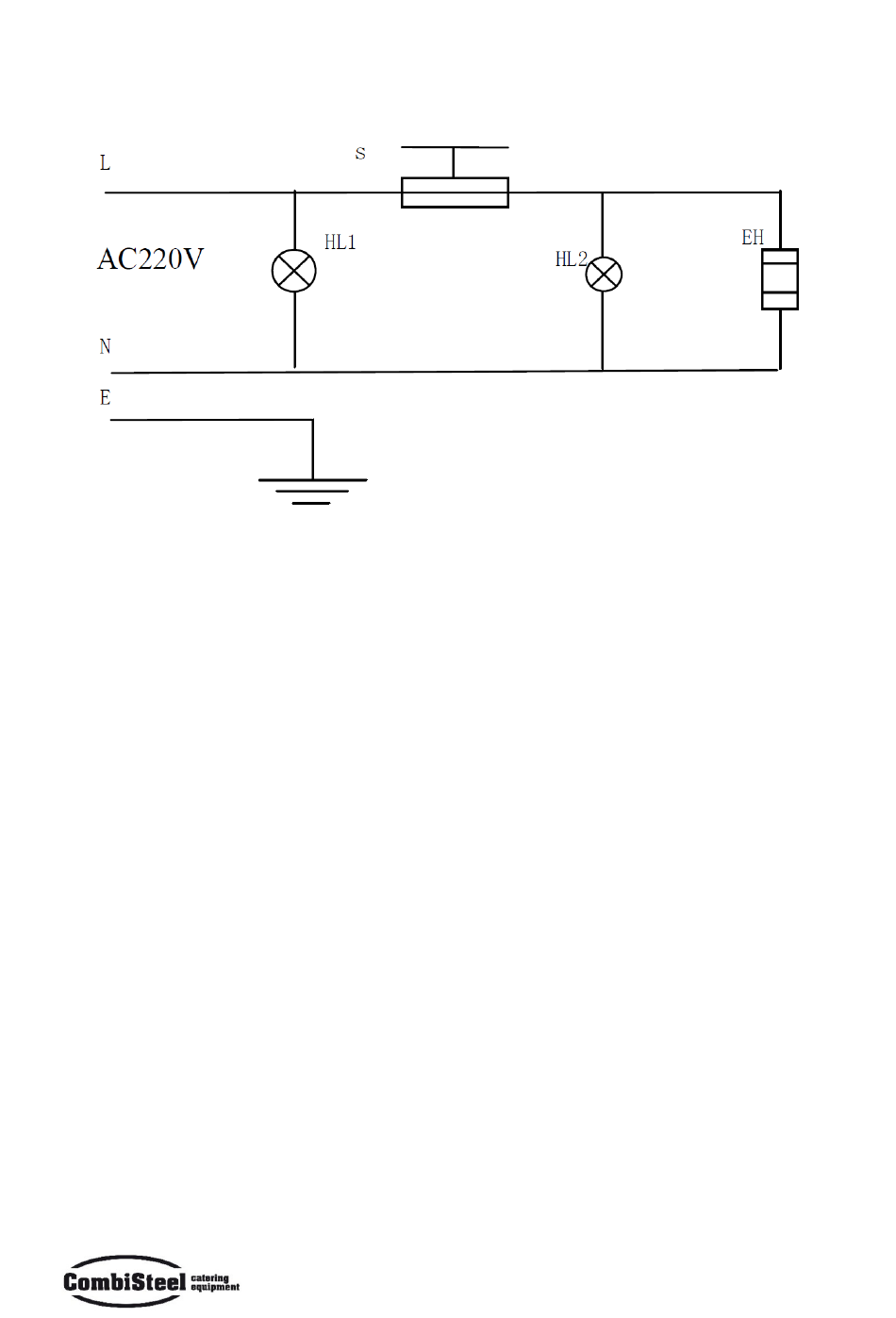

E. Circuit diagram
S= TEMPERATURE CONTROLLER
EH= HEATING TUBE
HL2= HEATING INDICATOR (YE)
E= GROUND PROTECTION
F. Cleaning and Maintenance
1. Before cleaning and maintenance any time, please cut off electricity first.
2. The equipment cannot use water directly to wash and cannot immerse it in water to wash.
3. User can use wet towel with not causticity to clean the surface of equipment.
4. If not use for long time, use towel with paint a layer of oil to clean the surface of equipment, and also
lay a good air-circulate place.
S1= TEMPERATURE LIMITER
HL1= POWER INDICATOR (GN)
KM= AC CONTACTOR
