3.2 Connections/Power supply

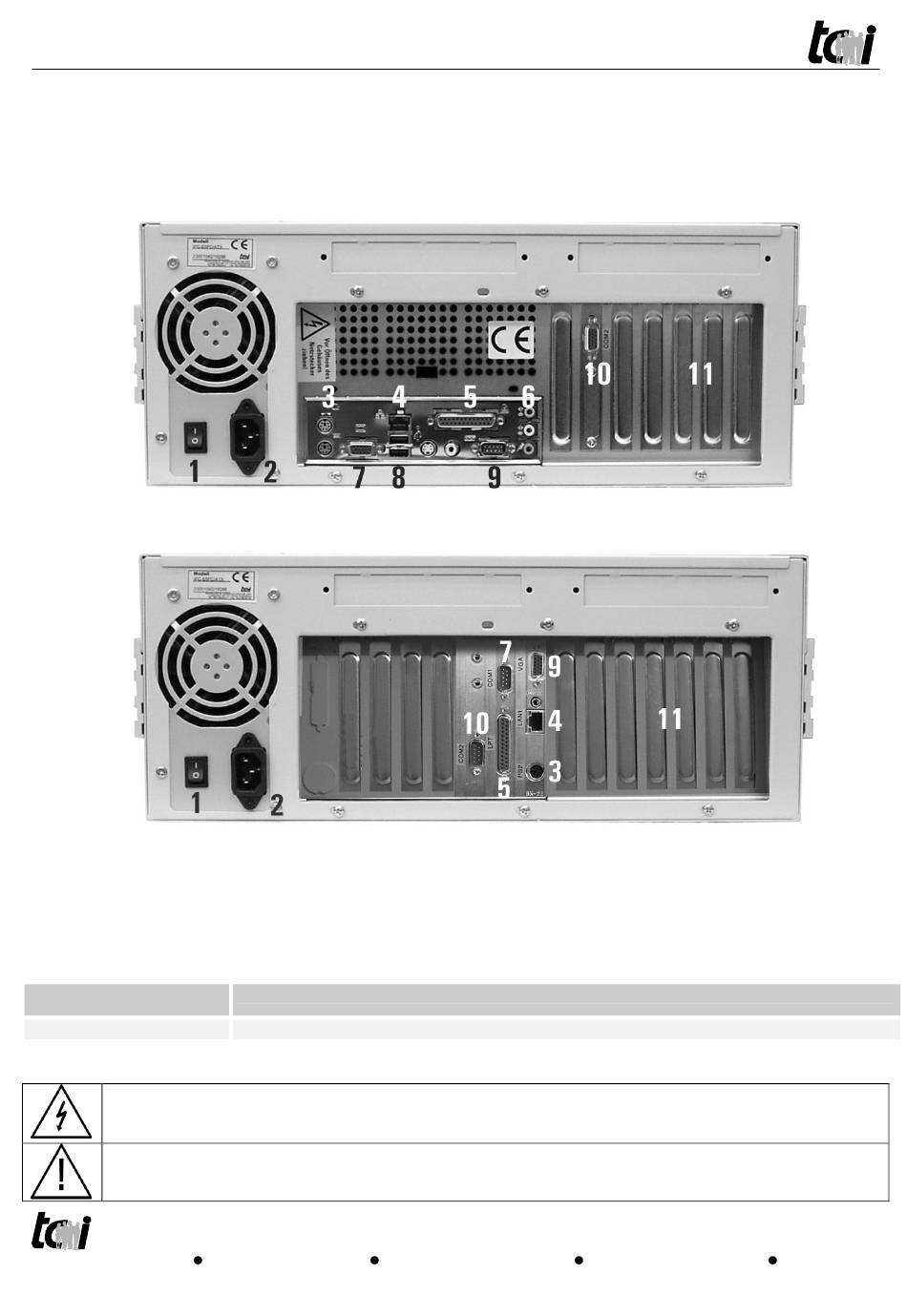

Picture: connection panel IPC-ECO with ITX/ATX-Board:
(Example, depending on used motherboard)
Picture: connection panel IPC-ECO with backplane:
(Example, depending on used hardware and components)
Connections:
1: On-/Off switch of the
power supply
2: Power supply input
3: PS/2-keyboard and
mouse connection
Entry
Power supply
PE ground must be connected! There is mortal danger by an electrical impact, if the outer hull of the
inlet is damaged e.g. and affects the housing.
Info about power supply: After reaching a specified value the fan will be operate! It isn't a defect of the
fan.
Ludwig-Rinn-Str. 10-14
4: Ethernet
5: Parallel port (ECP/EPP
compatible)
6: Audio
85-256 VAC, 90-284 VAC, 100-240V (depending of technical equipment)
250W / 300 W / 350 W (depending of technical equipment)
D - 35452 Heuchelheim
Phone: +49-(0)641-96284-0
7: COM1
8: USB
9: VGA output
10: COM2
11: free slots
Fax: +49-(0)641-96284-28
www.tci.de
Seite 11 von 28
