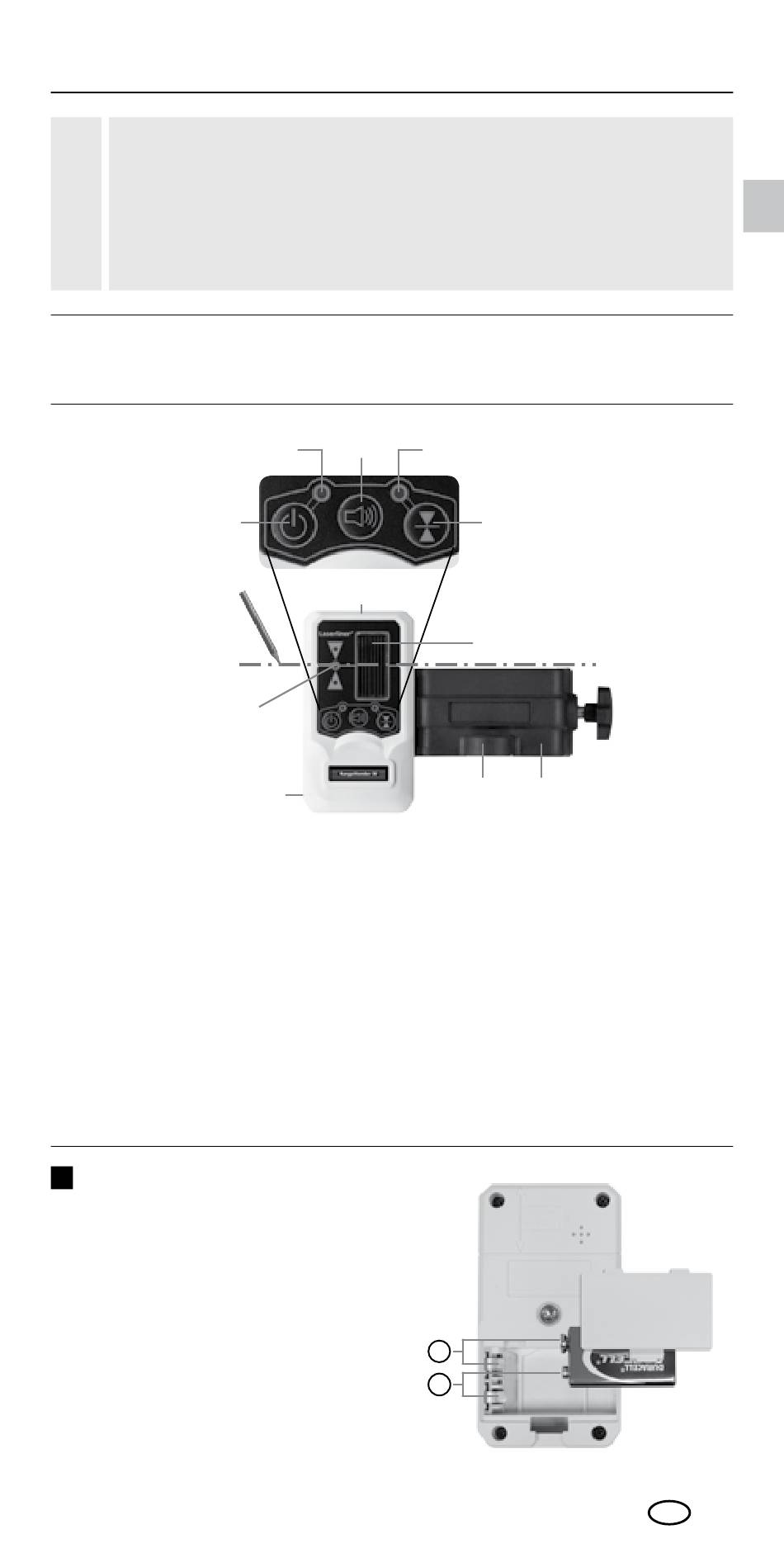

RangeXtender RX 30
Laser receiver for all line lasers with RX-READY technology.
A Sound ON / OFF
B Receiver field for
laser beam
C Universal mount
D Battery compartment
E
LED's for laserindication:
front
F
ON / OFF switch
G LED status indicator
1 Inserting the battery
Open the battery compartment
on the housing's rear side and
insert a 9V battery. Correct
polarity must be observed.
RangeXtender RX 30
G A
F
J
E
D
I
H
B
K C
H Switch tolerance range
precision range / free-
hand range
I
LED tolerance range:
switched off, precision
range / red, free-hand
range
J Head magnet
K Vial
–
+
