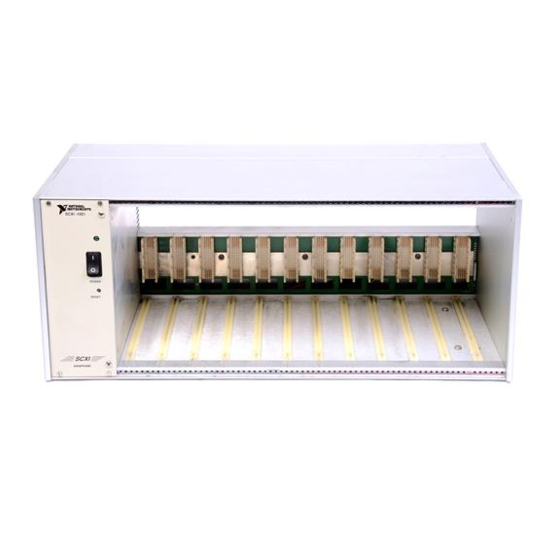

National Instruments SCXI-1000 Schnellstartanleitung

SCXI Quick Start Guide
™
Signal Conditioning eXtensions for Instrumentation

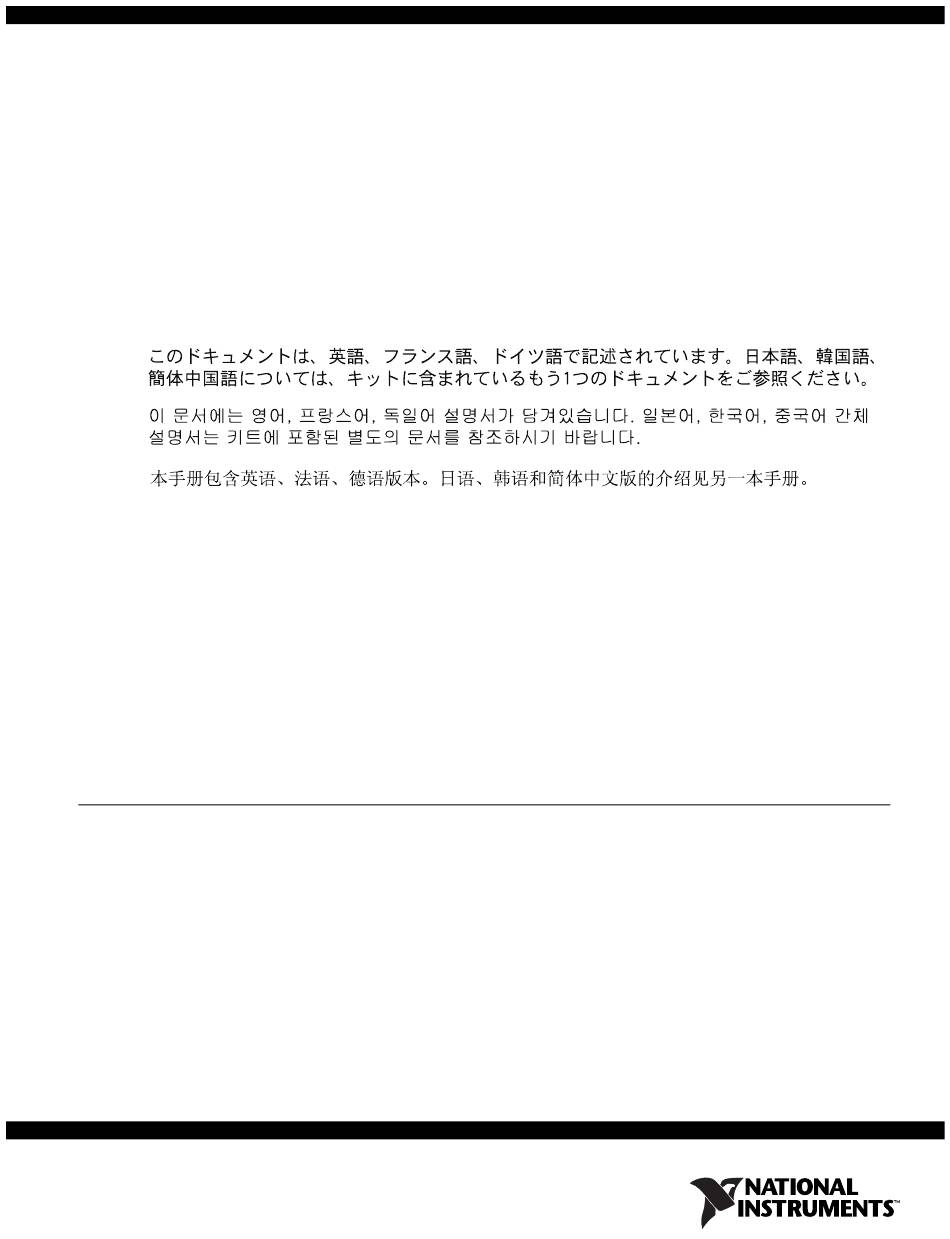

This document contains English, French, and German language instructions. For Japanese, Korean,
and Simplified Chinese language instructions, refer to the other document in your kit.
Ce document contient des instructions en anglais, français et allemand. Pour les consulter en japonais,
coréen et chinois simplifié, reportez-vous à l'autre document dans votre kit.
Dieses Dokument enthält Anleitungen auf Englisch, Französisch und Deutsch. Anleitungen auf
Japanisch, Koreanisch und in vereinfachtem Chinesisch finden Sie in dem anderen Dokument in
diesem Kit.
This document explains how to install and configure SCXI signal conditioning modules in SCXI-1000,
SCXI-1001, SCXI-1000DC, or PXI/SCXI combination chassis, confirm the module and chassis are
operating properly, and set up multichassis systems. It also describes the NI-DAQmx software relative
to SCXI and integrated signal conditioning products. This document assumes you have already installed,
configured, and tested your NI application and driver software, and the data acquisition (DAQ) device
to which you will connect the SCXI module. If you have not, refer to the DAQ Getting Started guides
included with the DAQ device and available on the NI-DAQ software media and from
, before continuing.
manuals
For instructions on configuring Traditional NI-DAQ (Legacy), refer to the Traditional NI-DAQ (Legacy)
Readme after you have installed the software. Refer to the NI Switches Getting Started Guide, available
at
ni.com/manuals
Step 1. Unpack the Chassis, Module, and Accessories
Remove the chassis, module, and accessory from the packaging and inspect the products for loose
components or any sign of damage. Notify NI if the products appear damaged in any way. Do not install
a damaged device.
For safety and compliance information, refer to the device documentation packaged with your device,
at
ni.com/manuals
, for switch information.
, or the NI-DAQmx media that contains device documentation.
