Field of application:
The devices are only suitable for the power supply of suitable amplifiers or
multiswitches! If a device is used for other purposes, no warranty is given.
The SZU 99-22 serves as a power supply unit for AXING SAT multiswitches
SPU 5x-09.
The SZU 99-06 consists of the power supply SZU 99-15 and an adapter cable.
It is used as a power supply unit for the AXING multiswitches SPU xxx-06,
SVS xx-06 head amplifiers or SES xxx-06 single-cable multiswitches.
Mounting:
Mount the power supply on a flat surface. Use appropriate mounting screws
and mounting holes on the device (1).
Connection:
Do not connect the power supply to the power outlet until all installation work
has been completed.
Check for the correct output voltage and the necessary output current for the
device to be supplied for each application.

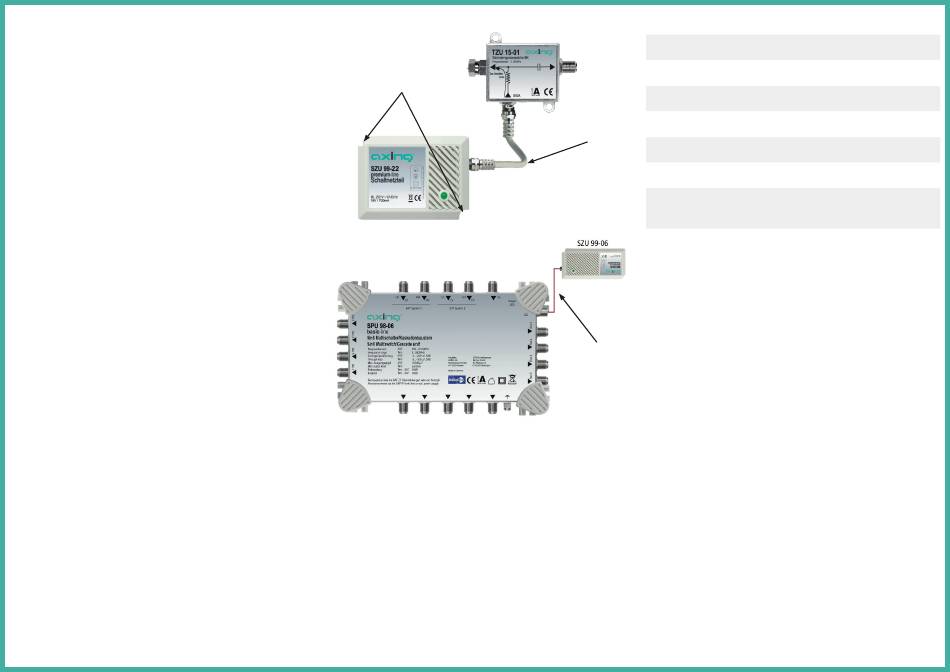

SZU 99-22:
Use an F connection cable to connect the power supply to a power inserter
and to supply a device via the RF line (2).
Use the adapter F-plug to RCA to supply a device with DC RCA connection.
SZU 99-06:
Use the adapter F-plug
to supply a device with a DC
to barrel connector
connector (3).
1
Technical data:
Input voltage
Power consumption
without load
Power consumption at
max. current load
2
Output voltage
Protection class
F-female (incl. adapter
Connctor
F to RCA and DC coax
connector F to F)
3
SZU 99-22
SZU 99-06
90...250 V~ / 47-63 Hz
0,2 W
0,4W
18 W
39 W
18 V / 0,7 A
18 V / 2 A
II
F female
(incl. adapter F to barrel
connector 5,5/2,1mm)
