FAMILIARIZING YOURSELF WITH YOUR 2.4GHZ RADIO SYSTEM
SYSTEM FEATURES
• Unique and functional pistol grip transmitter design
• Well balanced for precise control
• Non-slip foam steering wheel
• Well placed digital trim & D/R levers
• Optimum third channel switch location
• Low Battery warning
• Quick Binding and Fail Safe Setup
• High performance micro 3 channel receiver
• Ni-Cd charger jack in transmitter
• Sound Beep
TRANSMITTER
Model: MT -305
FHSS Output Power: <100mW Operating Voltage: 4.8 or 6V
Power Supply: 4 Cell Alkaline/Ni-Cd/Ni-MH
Weight: 13. 7 OZ( 388 g) with Alkalines
Frequency/Modulation Type: 2.4GHz FHSS
RECEIVER
Model: MR-300 or MR303
Frequency: 2.4GHz FHSS
Operating Voltage: 4.8 or 6V
Weight: 0.26 oz (7.4g ) 0.4 oz (11.6g)
Dimensions: 1.38 x 1 x 0.5 in (35.1 x 25.3 x 13 mm)
1.34 x 1.02 x 0.63in (34x26x16mm) Fail Safe: Yes (All Channels)
FEATURES DESCRIPTIONS
Receiver Antenna Wire: The antenna wire
receives the transmitter signal.
The antenna wire should be installed through
a nylon tube (antenna tube) in the vertical
position for the best reception.
Auxiliary Channel 3 Switch: Controls Auxiliary
Channel 3 High and low servo travel.
Battery Compartment: Houses the 4 'AA' Alkaline batteries that power the
transmitter.
Bind Button: Used in the process of Binding the transmitter and receiver.
Bind LED: Displays the current status of the transmitter and receiver pair.
Steering Dual Rate (D/R): The Dual Rate knob are used to adjust the Steering
Dual Rate quickly and easily during use.
Grip: The Grip is molded in an ergonomic shape for increased comfort, control
and feel.
FTX Outback Fury Manual.indd 4
Power Indicator: Indicates that there is Power to the transmitter.
Power Switch: Turns the transmitter ON and OFF.
Steering Trim Knob(CH1): Used to adjust the center Trim of the Steering servo.
Steering Wheel(CH1): Proportionally operates the model's right and left steering
control. The Steering Wheel features a molded
grip for increased comfort, control and feel.
Throttle Trigger(CH2):
Controls the speed of the
model, both forward
and backward, or the
model's brake.
Throttle Trim Knob (CH2): Used to
adjust the center Trim of the
Throttle servo.
Reverse (CH1/CH2): Switches
direction of steering or throttle.
TRANSMITTER BATTERY INSTALLATION
1. Press down on the battery cover and slide in the
direction of the arrow to remove.
2. Install 4 AA alkaline cells (or Ni-Cd, or Ni-MH) as
indicated inside the battery compartment.
Make sure to match the inside polarity the (+ and -) as
shown in the battery compartment or the transmitter will not function.
3. Install the battery cover in place and slide to close.
WARNING: Improper installation of transmitter batteries can cause serious damage to your system.
4

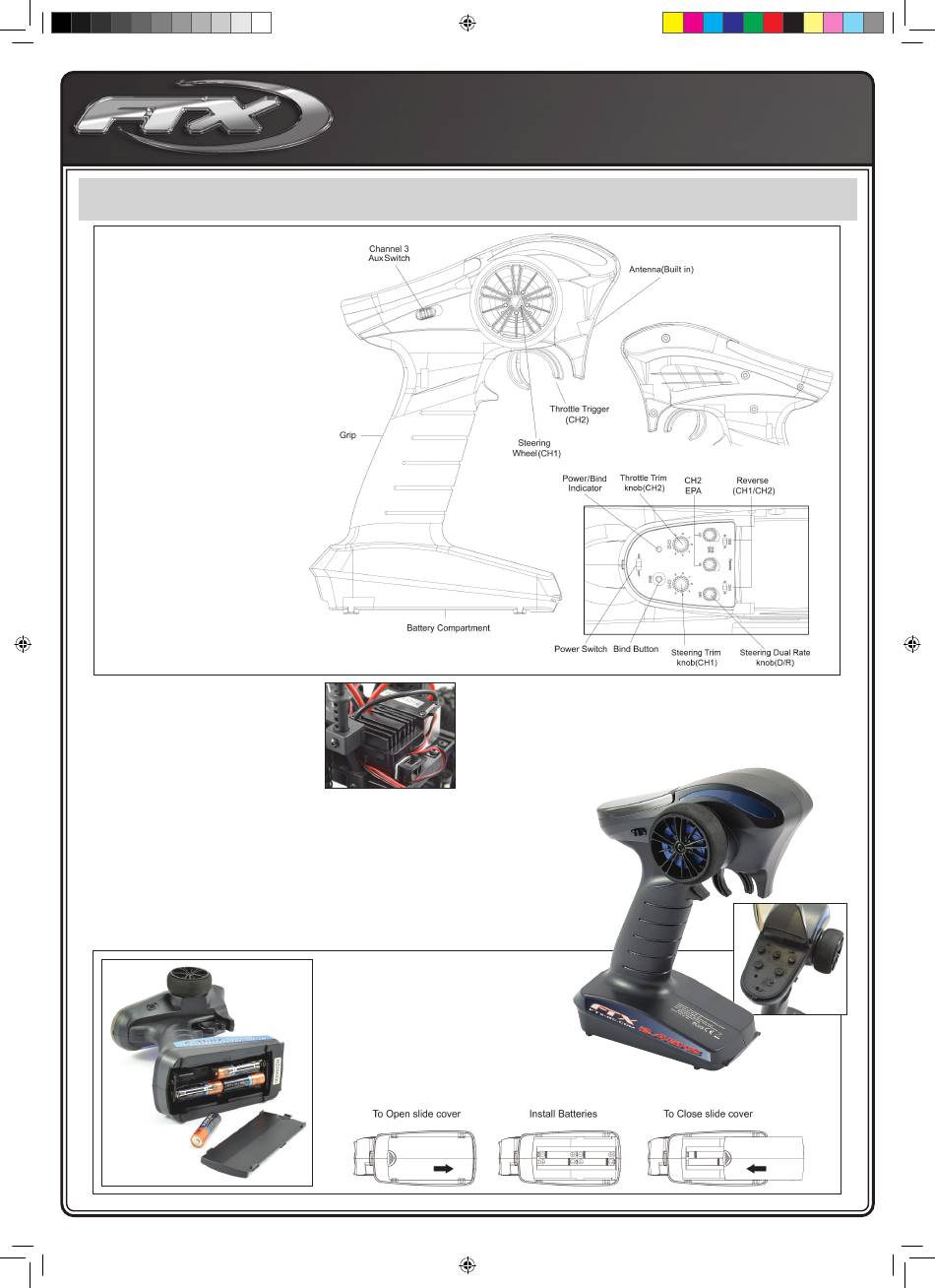

TRANSMITTER AND RECEIVER DIAGRAMS
Use the diagram below to familiarize
yourself with the different
parts of your MT-303 transmitter
and the MR-303(MR-300)
receiver on page 7.
