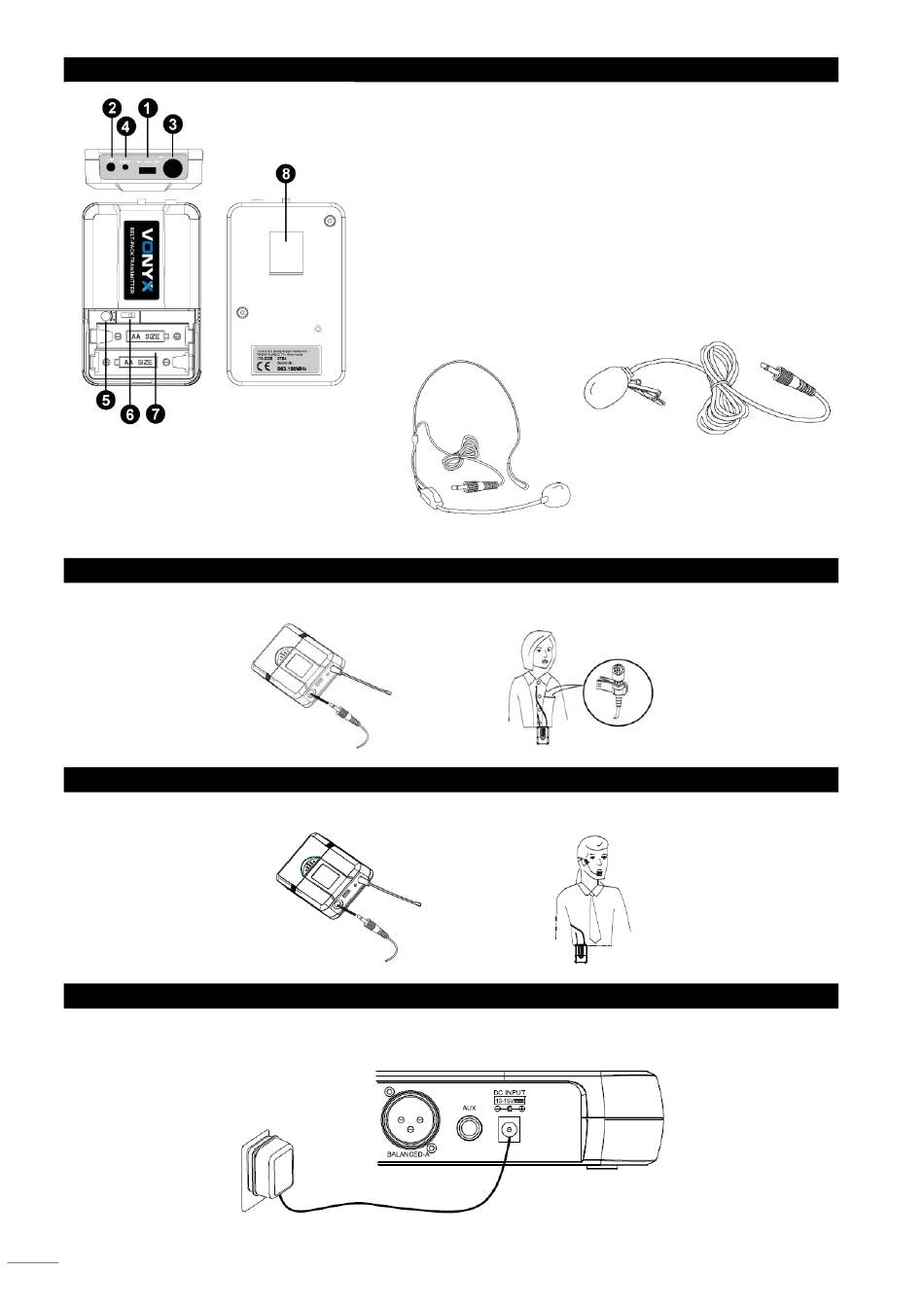

BODYPACK TRANSMITTER (OPTIONAL)
LAVALIER TIE-CLIP MICROPHONE
Connect the connecter of supplied lavalier microphone to the connecting jack of transmitter (Shown as below).
Set the transmitter work state in wireless lavalier system (6).
HEADSET MICROPHONE
Connect the connecter of supplied headset microphone to the connecting jack of transmitter (Shown as below).
Set the transmitter work state in wireless headset system (6).

SYSTEM CONNECTIONS

1. Receiver power connection: Connect the AC adapter into the DC power connector on the back of the
receiver. Plug the AC adapter into a AC230V 50Hz outlet.
4
1. Power ON/OFF and Audio mute switch.
2. Antenna
3. Microphone input Jack: it is suitable for lavalier tie-clip or
headset system.
4. Low battery indicator (Red light glows when the power is
low and change the battery)
5. Gain Adjusting Volume: Adjust the transmitter audio input
gain.
6. State Setting Switch: Set the using state of lavalier tie-clip
or headset system.
7. Battery Cover: Open it to install the battery. Remove
batteries in case of long time no use (prevent leakage).
8. Belt Clip
