3. CONNECTION

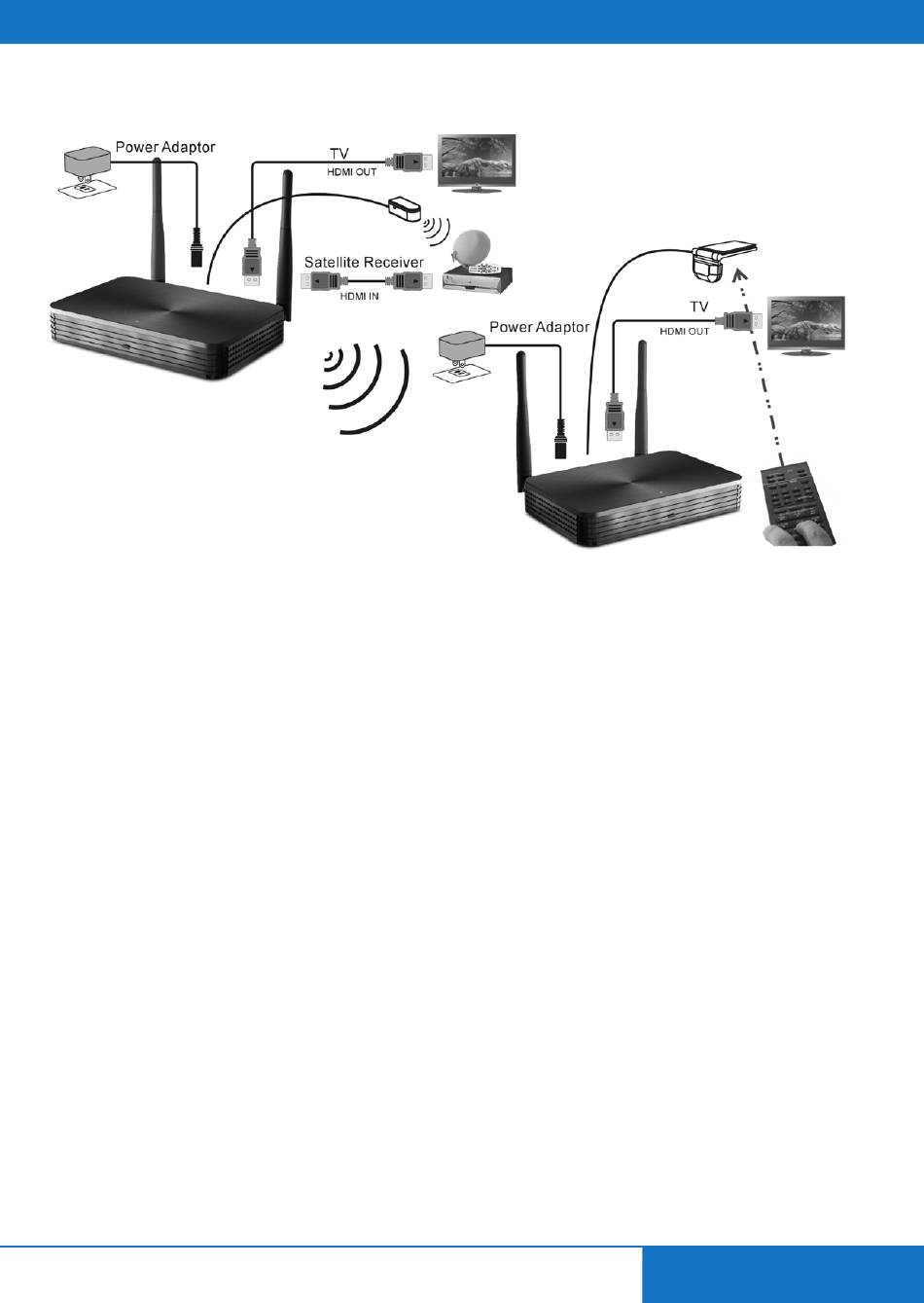

Step 1:
Use an HDMI cable to connect the HDMI IN of the CSW310 transmitter with a source device. You can
use another HDMI cable to connect the HDMI OUT to a display (Loop-Through).
Step 2:
Use an HDMI cable to connect the HDMI OUT of CSW310 receiver to a display device.
Step 3:
(Skip this step if you don't need IR Extension) Connect the IR emitter to the CSW310 transmitter. Then
place the emitter in front of the source device's IR receiver. Connect the IR receiver to the CSW310
receiver. Then place the receiver probe in place, accessible for your remote control.
Step 4:
Connect a DC 5V1A power adapter to the power jack (MicroUSB) of the CSW310 transmitter.
Step 5:
Connect the other DC 5V1A power adapter to the power jack (MicroUSB) of the CSW310 receiver.
Step 6:
Connection completed and ready to use.
