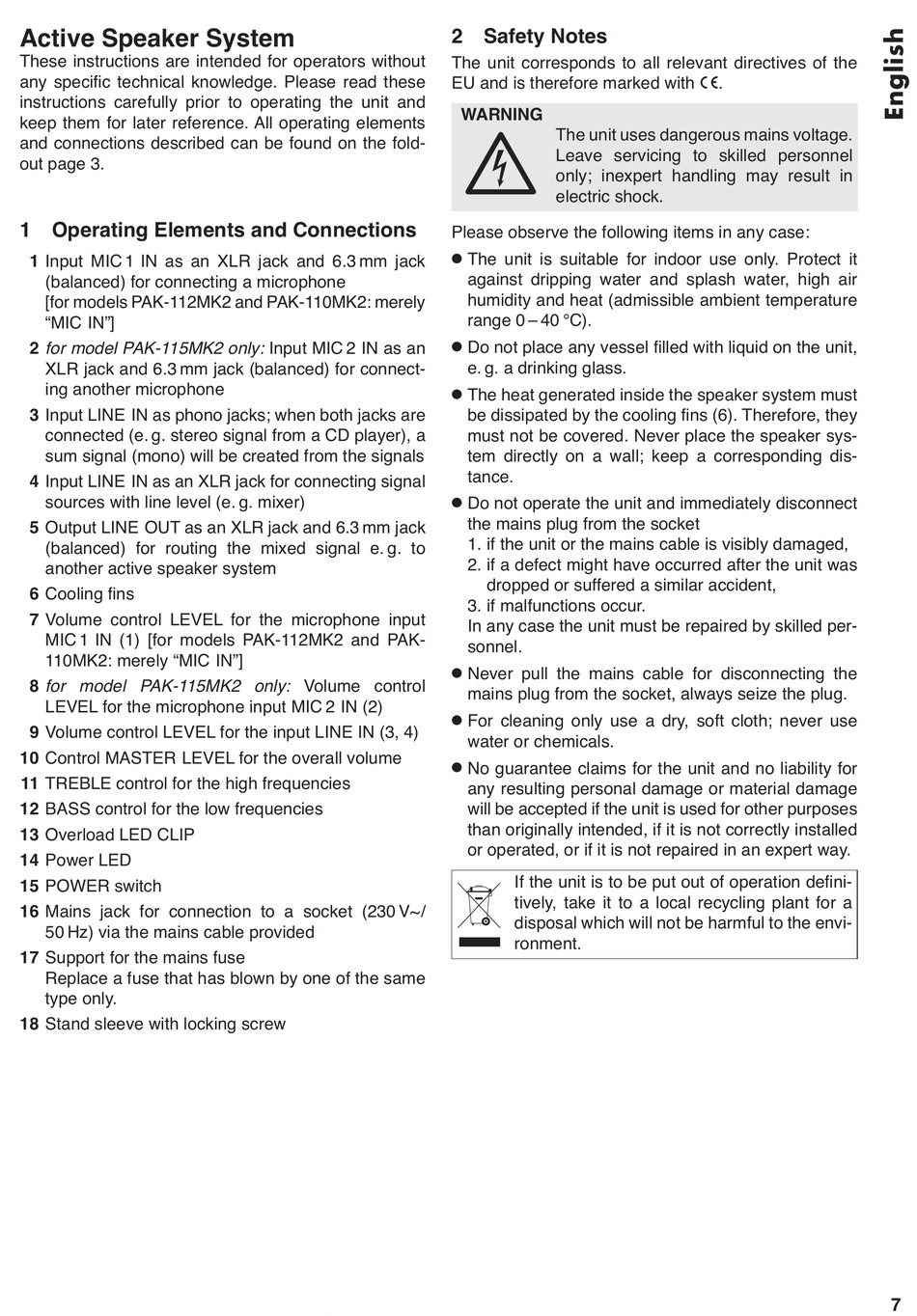

Active Speaker System
These instructions are intended for operators without
any specific technical knowledge. Please read these
instructions carefully prior to operating the unit and
keep them for later reference. All operating elements
and connections de scribed can be found on the fold-
out page 3.

1 Operating Elements and Connections

1 Input MIC 1 IN as an XLR jack and 6.3 mm jack
(balanced) for connecting a microphone
[for models PAK-112MK2 and PAK-110MK2: merely
"MIC IN"]
2 for model PAK-115MK2 only: Input MIC 2 IN as an
XLR jack and 6.3 mm jack (balanced) for connect-
ing another microphone
3 Input LINE IN as phono jacks; when both jacks are
connected (e. g. stereo signal from a CD player), a
sum signal (mono) will be created from the signals
4 Input LINE IN as an XLR jack for connecting signal
sources with line level (e. g. mixer)
5 Output LINE OUT as an XLR jack and 6.3 mm jack
(balanced) for routing the mixed signal e. g. to
another active speaker system
6 Cooling fins
7 Volume control LEVEL for the microphone input
MIC 1 IN (1) [for models PAK-112MK2 and PAK-
110MK2: merely "MIC IN"]
8 for model PAK-115MK2 only: Volume control
LEVEL for the microphone input MIC 2 IN (2)
9 Volume control LEVEL for the input LINE IN (3, 4)
10 Control MASTER LEVEL for the overall volume
11 TREBLE control for the high frequencies
12 BASS control for the low frequencies
13 Overload LED CLIP
14 Power LED
15 POWER switch
16 Mains jack for connection to a socket (230 V~ /
50 Hz) via the mains cable provided
17 Support for the mains fuse
Replace a fuse that has blown by one of the same
type only.
18 Stand sleeve with locking screw

2 Safety Notes

The unit corresponds to all relevant directives of the
EU and is therefore marked with
WARNING
The unit uses dangerous mains voltage.
Leave servicing to skilled personnel
only; inexpert handling may result in
electric shock.
Please observe the following items in any case:
G
The unit is suitable for indoor use only. Protect it
against dripping water and splash water, high air
humidity and heat (admissible ambient temperature
range 0 – 40 °C).
G
Do not place any vessel filled with liquid on the unit,
e. g. a drinking glass.
G
The heat generated inside the speaker system must
be dissipated by the cooling fins (6). Therefore, they
must not be covered. Never place the speaker sys-
tem directly on a wall; keep a corresponding dis-
tance.
G
Do not operate the unit and immediately disconnect
the mains plug from the socket
1. if the unit or the mains cable is visibly damaged,
2. if a defect might have occurred after the unit was
dropped or suffered a similar accident,
3. if malfunctions occur.
In any case the unit must be repaired by skilled per-
sonnel.
G
Never pull the mains cable for disconnecting the
mains plug from the socket, always seize the plug.
G
For cleaning only use a dry, soft cloth; never use
water or chemicals.
G
No guarantee claims for the unit and no liability for
any resulting personal damage or material damage
will be accepted if the unit is used for other purposes
than originally intended, if it is not correctly installed
or operated, or if it is not repaired in an expert way.
If the unit is to be put out of operation defini-
tively, take it to a local recycling plant for a
disposal which will not be harmful to the envi-
ronment.
.
