Thunder3 Quad X
EN
ES
DE
Setup guide - Guía de configuración - Setup-Anleitung - Guide d'installation
安裝手冊 - 安装手册 - 설치 안내서 - セッ トアップガイド
To download the latest version of this document, please visit our website at
https://www.akitio.com/support/user-manuals
E15-574R1AA001
© 2017 by AKiTiO - All Rights Reserved
AKiTiO assumes no responsibility for any errors or differences between the product you may have and the one mentioned in this document
and reserves the right to make changes in the specifications and/or design of this product without prior notice. The diagrams contained in
this document are for reference and may not fully represent the real product. AKiTiO assumes no responsibility for any loss of data or files.
www.akitio.com
California, USA
FR
CH
KO
J
P
PN: E15-574R1AA001
July 17, 2017 - v1.0

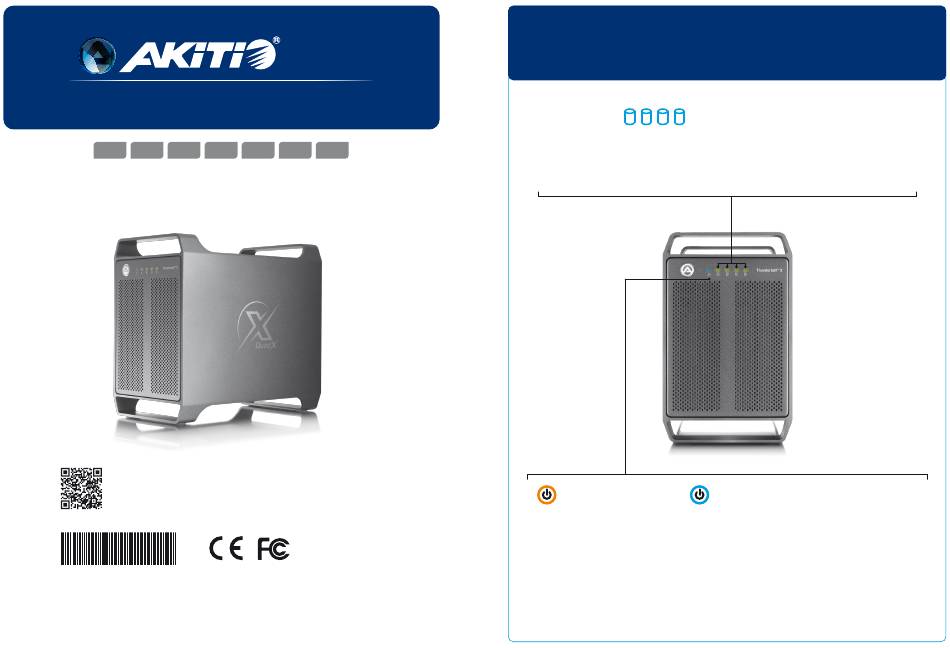

Front View - Vista frontal - Frontansicht - Vue de face
正面 - 正面 - 정면도 - フロン トビュー
Disk Activity
A
B
C
D
Flashing green = Data access (read/write)
Verde intermitente = Acceso a datos (lectura/escritura)
Grün blinkend = Datenzugriff (lesen/schreiben)
Vert clignotant = Accès aux données (lecture/écriture)
Orange = Power ON
Blue = Power ON / Thunderbolt link established
Naranja = Encendido
Azul = Encendido / Conexión Thunderbolt establecida
Orange = Strom eingeschaltet
Blau = Eingeschaltet / Thunderbolt-Verbindung hergestellt
Orange = Allumé
Bleu = Allumé / Liaison Thunderbolt établie
橙色 = 電源開啟
藍色 = 電源開啟 / Thunderbolt 已連線
橙色 = 电源开启
蓝色 = 电源开启 / Thunderbolt 已联机
오렌지 = 전원 켜짐
파란색 = 전원 켜짐 / Thunderbolt 링크가 구성됨
オレンジ = 電源オン
ブルー = 電源オン / サンダーボルト接続中
綠色閃爍 = 資料存取中
绿色闪烁 = 资料存取中
녹색 점멸 = 데이터 액세스(읽기/쓰기)
グリーン点滅 = データアクセス （読取／書込）
