AXIS F44 Dual Audio Input

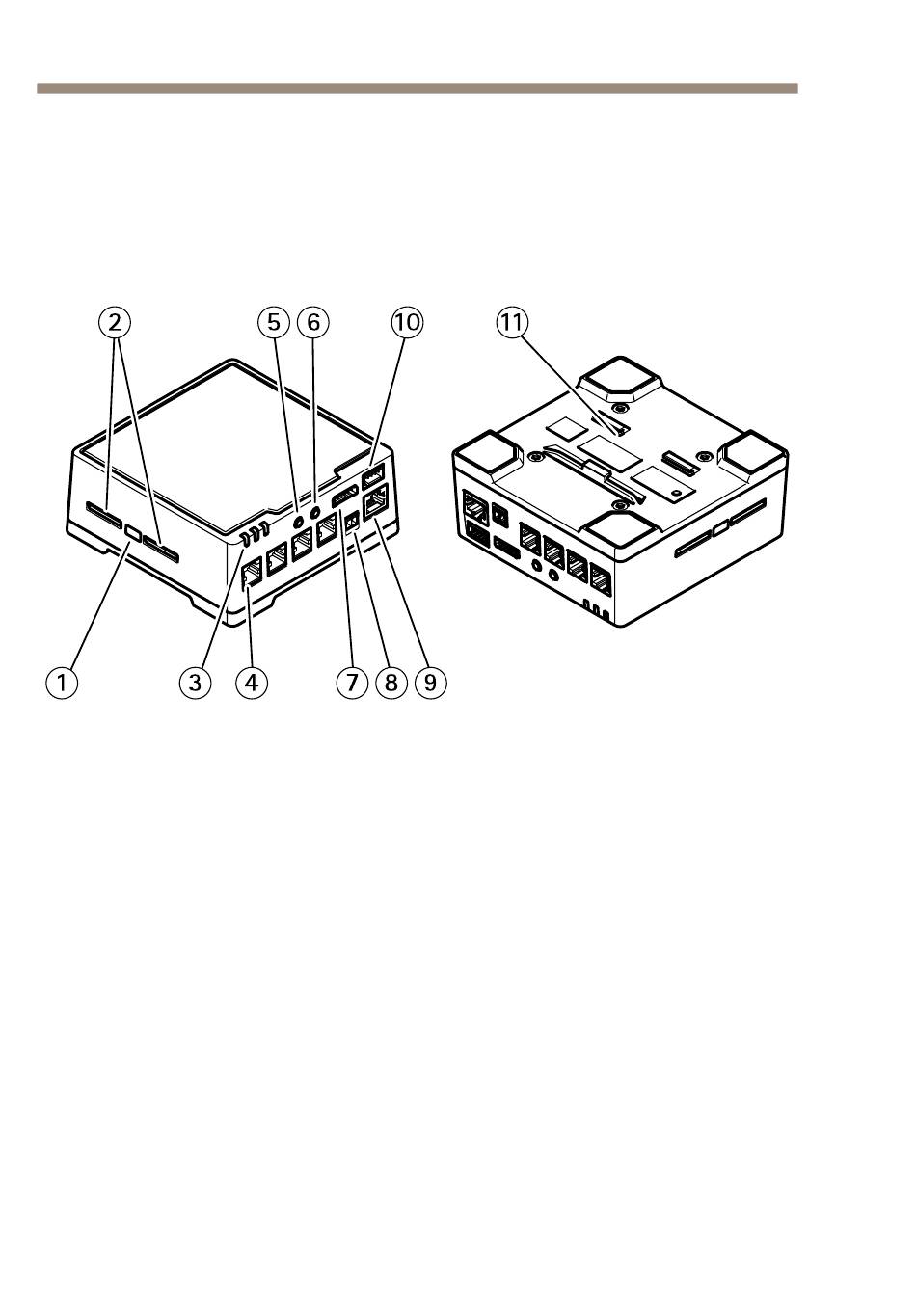

Hardware overview

For specifications of the hardware components, see Technical specifications
on page 13.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10. RS232 connector
11. Plastic bottom plate
Control button
SD card slots
LEDs (Power, Status, Network)
RJ12 connector (4x)
Audio in
Audio out
I/O connector
Power connector
Network connector (PoE)
