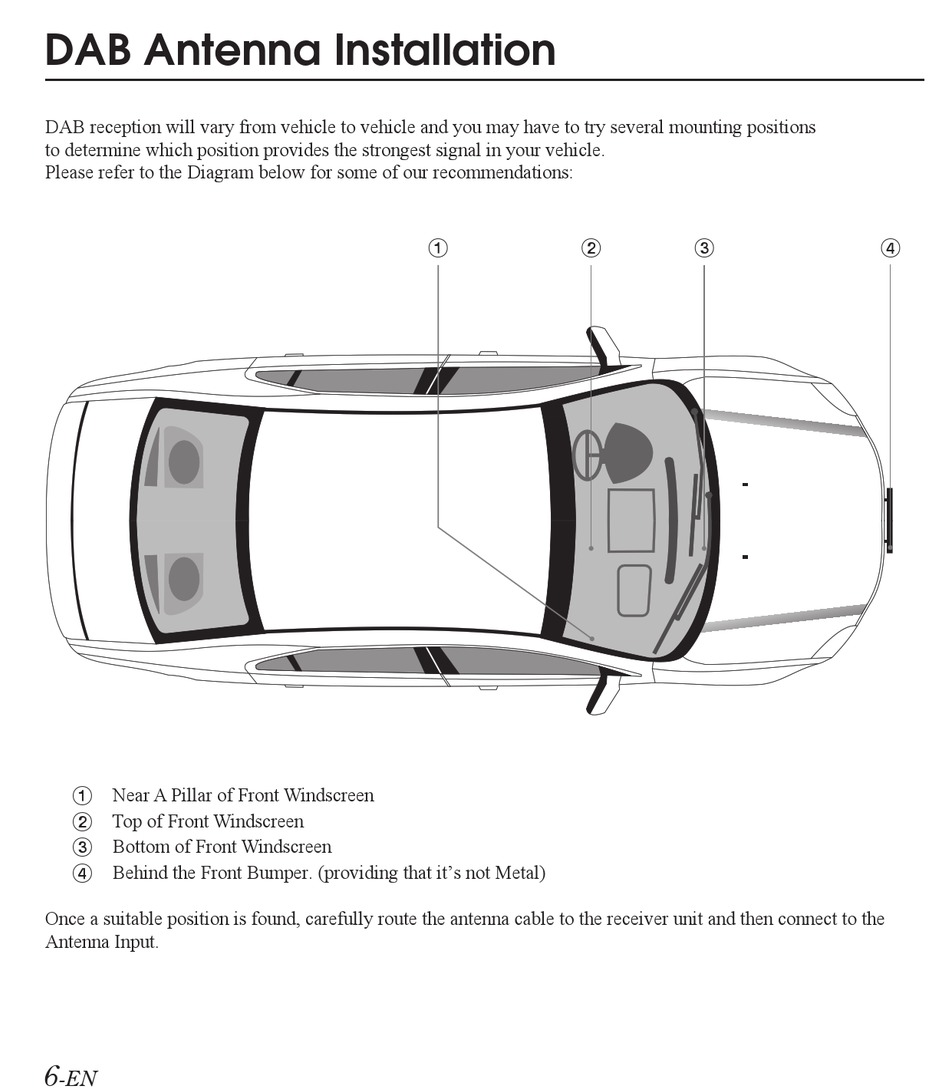

DAB Antenna Installation

DAB reception will vary from vehicle to vehicle and you may have to try several mounting positions
to determine which position provides the strongest signal in your vehicle.
Please refer to the Diagram below for some of our recommendations:
A Near A Pillar of Front Windscreen
B Top of Front Windscreen
C Bottom of Front Windscreen
D Behind the Front Bumper. (providing that it's not Metal)
Once a suitable position is found, carefully route the antenna cable to the receiver unit and then connect to the
Antenna Input.
6
-EN
A B C D
