Alto Professional RMX2408DFX Kurzanleitung Seite 10

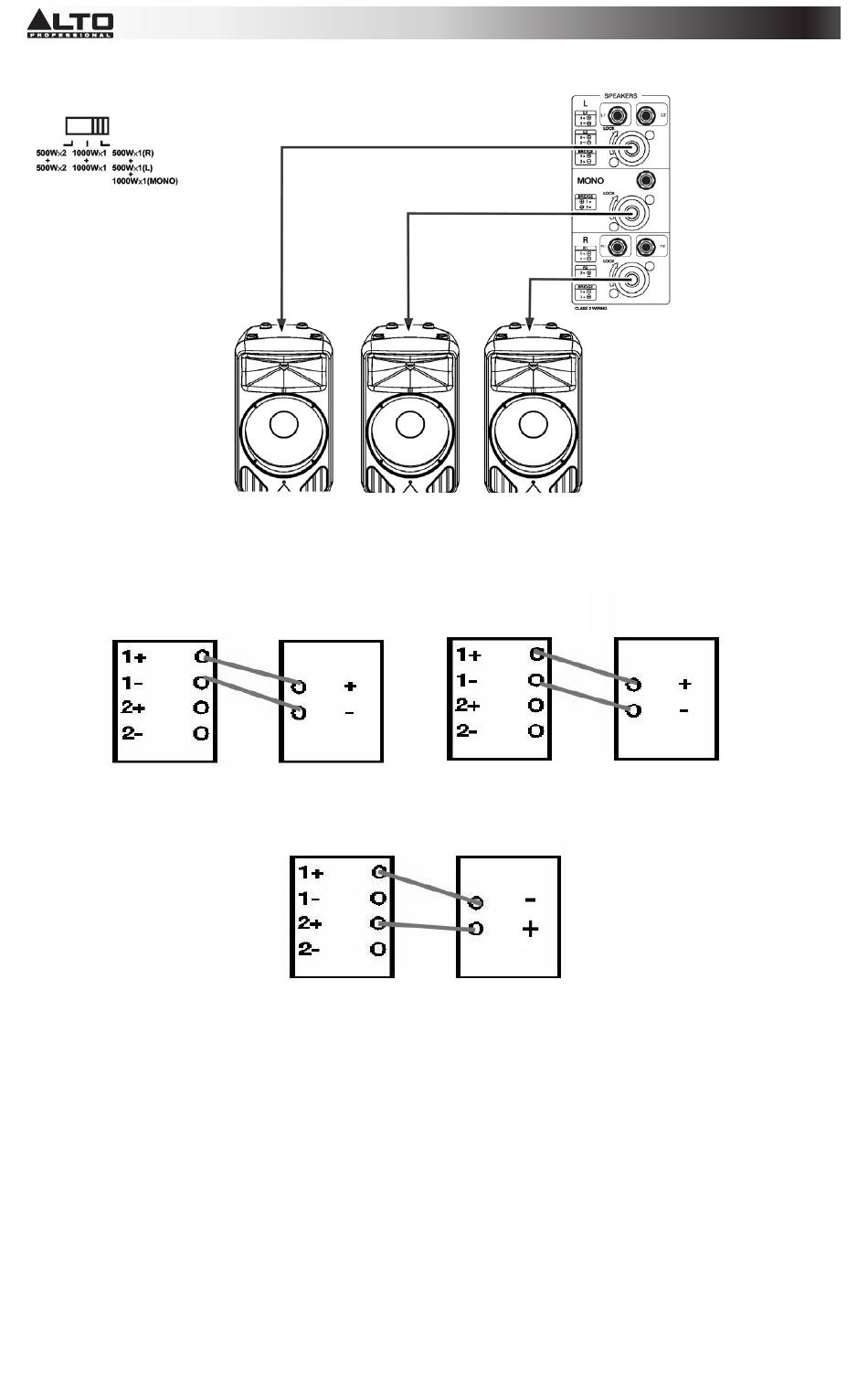

AMPLIFER MODE
AMP (R)
Speakon™ Jack
Right Speakon™ Connector to Right Speaker
Note: The Mono Speakon
NL4 Speakon connector attached to a 4 pole conductor speaker cable is required. For proper
™
Speakon connector/cable wiring, please refer to the diagrams above.
™
4 Ohm
Speaker
AMP (Mono) Speakon™ Jack
Mono Speakon™ Connector to Mono Speaker
jack is used with this configuration only. When using the Mono out jack, an
™
500 W
1000 W
500 W
8 Ohm 4 Ohm
AMP (L)
Speakon™ Jack
Left Speakon™ Connector to Left Speaker
Speaker
10
Speaker
