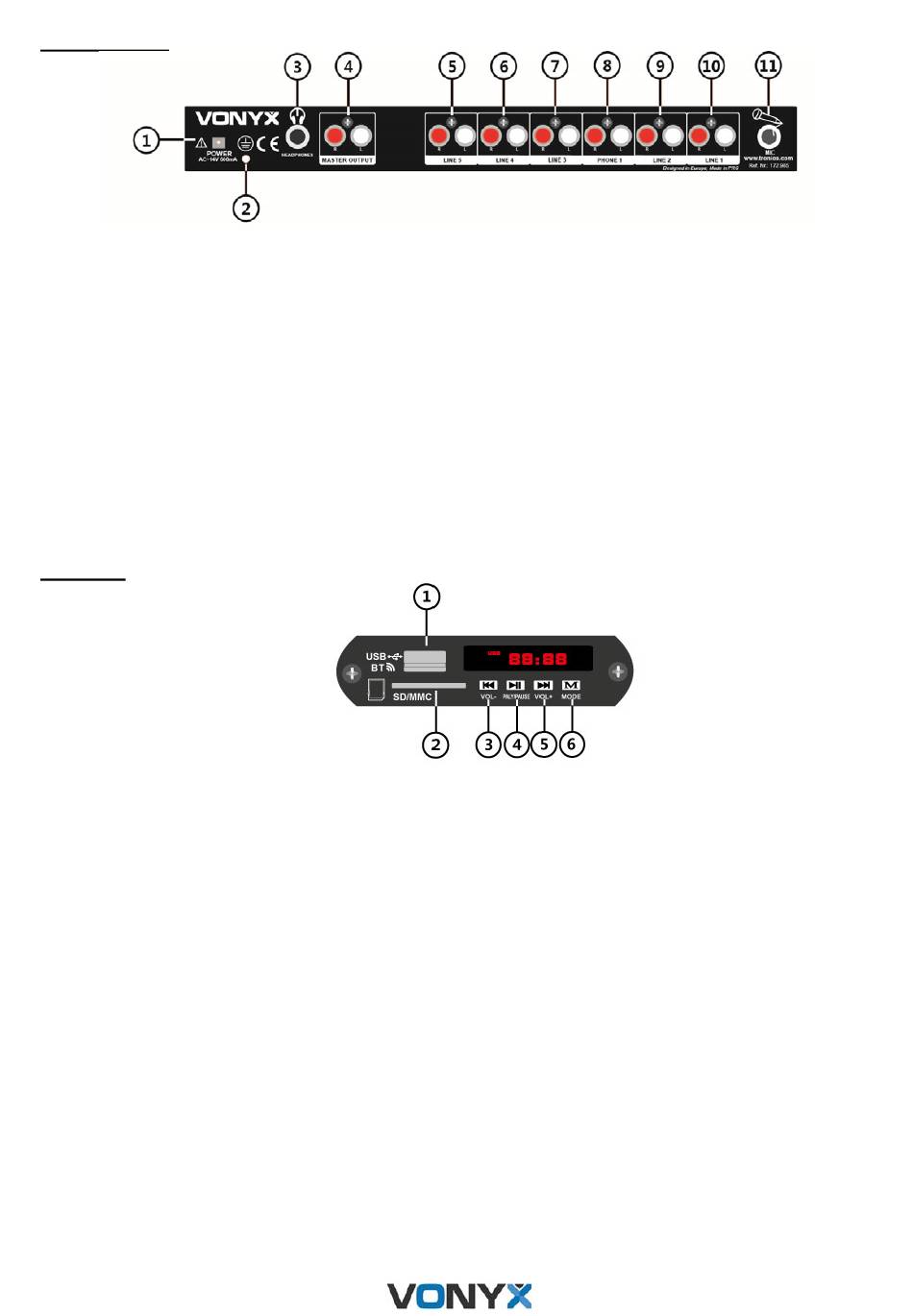

BACK PANEL

1. AC12V: Connector for a power supply.
2. GND: Grounding e.g. for a turn table
3. HEADPHONE: Use the headphone for pre-listening the output signal (6.35mm).
4. MASTER OUTPUT
The MASTER output jacks connect the mixer to your main amplifier using standard audio cables with
RCA-type connector.
5. LINE 5 signal input
6. LINE 4 signal input
7. LINE 3 signal input
8. PHONE 1 signal input
9. LINE 2 signal input
10. LINE 1 signal input
11. MICROPHONE: To insert your microphone
DISPLAY
1. USB INPUT
Insert your USB flash drive into this slot. The unit will only read .mp3 file formats from the USB flash
drive.
2. SD Card INPUT
Insert your SD CARD flash drive into this slot. The unit will only read .mp3 file formats from the flash drive
3. MP3 Player: Selects the previous track (short press) or volume decreasing (long press)
4. MP3 Player: Starts the playback and pause function
5. MP3 PLAYER: Selects the next track (short press) or volume increasing (long press)
6. MODE SELECTOR: To allow you to select the input source
