INHALT Seite TABLE OF CONTENT Page Qualitätsmerkmale Features Sicherheitshinweise Safety Instructions Bedienungsmerkmale Operating Features Digitale Kontrolleinheit Digital Control Unit Akku anschließen Power Suppy Befüllen mit Schnur und Speichern der Schnurdaten 8-9 Filling with line and line data programming 29-30 Die „Köder-zur-Hand“ Position The „Bait-at-Hand“...
Einzugskraft: 20 kg, 35kg/cm max Einzugsgeschwindigkeit: bis zu 240 m/min. * Die WFT Electra 550 PR-SHP Rollen sind für die Verwendung von WFT 32KG STRONG Schnüren optimiert. Bei Verwendung anderer Schnüre kann es zu erheblichen Messabweichungen auf dem Display kommen.
SICHERHEITSHINWEISE (WFT Electra 550 PR-SHP Rollen haben das Prüfsiegel.) Der Elektromotor dieser Rolle benötigt einen 12 Volt Akku. Der Betrieb mit abweichenden Stromspannungen kann zu einer Überhitzung und im Extremfall sogar zu Verbrennungen führen. Benutzen Sie nur volle Akkus. Nach langen Standzeiten kann sich der Akku entladen und sollte vor Inbetrieb- nahme der Rolle aufgeladen werden.
BEDIENUNGSMERKMALE DER WFT Electra 550 PR-SHP Kontroll-Einheit Freilauf Stop Taste Powerslider Drücken der Taste schaltet den Freilauf aus und kuppelt das Getriebe wieder ein. Mit dem Powerslider regeln Sie stufenlos die Einhol- geschwindigkeit des Elektromotors. Wenn Sie den Slider nach oben (Richtung “MAX”) schieben, erhöhen Sie die Geschwindigkeit.
MERKMALE DER DIGITALEN KONTROLL-EINHEIT Akku-Ladekontrolle Haupt-Display Zeigt die Batteriespannung an. Blinkt wenn das Akku geladen Zeigt die abgezogene Schnurlänge bzw. gewechselt werden muss. (Tiefe) an. Speedometer Sub-Display Zeigt die Einholgeschwindigkeit des Motors an. * Zeigt im Tiefenmodus die Zieltiefe an. * Zeigt im Grundmodus die Entfernung Memo-Knopf des Köders vom Grund.
VORBEREITUNG ZUM FISCHEN AKKU ANSCHLIESSEN (Abb. 1) Schließen Sie den roten Clip des Kabels an den Puspol (+) und den schwarzen Clip an den Minuspol (-) des Akkus an. (Abb. 2) Verbinden Sie den Stecker des Kabels mit dem Anschluss am Rollengehäuse. Dann ziehen Sie den Schraubring gut handfest an.
Wählen Sie durch wiederholtes Drücken des „Pick Up“ Knopfes den gewünschten Schnurtyp aus. Bei Bespulung mit 0,22 mm starker WFT 32 KG STRONG ist dies „PE4“. Siehe Abb. 8. (Darüber hinaus stehen die Schnurtypen PE2 bis PE6 sowie die „Economizing“-Programme zur Bespulung mit vorgegebenen Lauflängen von PE2, PE3 und PE4 Schnüren zur Verfügung.
Seite 9
VORBEREITUNG ZUM FISCHEN Spulen Sie anschließend etwa 260 Meter WFT 32KG STRONG Schnur mit Motorkraft auf, indem Sie den Power Slider nach vorne schieben. Achten Sie darauf, dass die Schnur auf Spannung ist und eine kompakte, feste Wicklung auf der Spule bildet. Während des Aufspulens blinkt das Zeichen über der Meteranzeige im Haupt-Display.
ANGELN MIT DER WFT Electra 550 PR-SHP Die „Köder-zur-Hand“ Position (10) blinkt Wenn Sie mit dem Angeln beginnen, stellen Sie zunächst die „Köder-zur-Hand“ Position ein. An dieser Position wird das Display beim Fischen den Wert 0 zeigen. Lassen Sie so viel Schnur von der Rolle, bis der Köder sich bei aufrecht gehaltener Rute an einer Position befindet, wo Sie ihn bequem greifen können.
ANGELN MIT DER WFT Electra 550 PR-SHP Die „Wasseroberflächen-Null“ Position Senken bzw. heben Sie den Köder bis zur Wasseroberfläche. Drücken Sie den „MEMO“ Knopf einmal kurz. Nach diesem Speichervorgang erscheint „OK“ und der Wert 0 im Display (siehe Abb. 11).
ANGELN MIT DER WFT Electra 550 PR-SHP Aufkurbeln mit dem Motor / Änderung der Einholgeschwindigkeit Motorbetrieb mit dem „Pick Up“ Knopf / JIGGING-Funktion (Abb. 12) Wenn Sie den „Pick Up“ Knopf drücken, holt der Motor Schnur ein. Zum Stoppen lassen Sie den Knopf wieder los.
Seite 13
ANGELN MIT DER WFT Electra 550 PR-SHP Motorbetrieb mit dem Power Slider (Abb. 13) Zum Starten des Motors und stufenlosen Erhöhen der Geschwindigkeit schieben Sie den Power Slider nach oben in Richtung „MAX“. (Abb. 14) Zur Verringerung der Geschwindigkeit schieben Sie den Power Slider zurück nach unten in Richtung „MIN“.
ANGELN MIT DER WFT Electra 550 PR-SHP TIEFENMODUS und Speichern der Zieltiefe (16) Beim ersten Einschalten der Rolle befindet sich diese im Tiefenmodus. Dabei zeigt das Haupt-Display die Tiefe (abgelassene Schnurlänge) in großen Ziffern an (siehe Abb. 16). Diese Tiefe (freigegebene Schnurlänge) können Sie speichern, um Ihren Köder, z.B. nach- dem Sie ihn erneuert haben, wieder in der selben Tiefe anbieten zu können.
ANGELN MIT DER WFT Electra 550 PR-SHP GRUNDMODUS und Kontrolle der Distanz vom Grund Umschalten vom Tiefenmodus in den Grundmodus: (Abb. 19) Wenn Sie den „MEMO“ Knopf zwei Sekunden lang drücken, wird im Sub-Display die „Distanz vom Grund“ in kleinen Ziffern angezeigt. Der Wert ist zunächst 0.Wenn Sie nun Schnur aufkurbeln, zeigen die großen Ziffern an, auf welcher Tiefe sich Ihr Köder befindet, während die kleinen Ziffern zeigen, wie weit Ihr Köder über dem Grund schwebt...
ANGELN MIT DER WFT Electra 550 PR-SHP Korrektur der Schnurdaten nach Schnurabriss Kurbeln Sie zunächst die Schnur zurück auf die Rolle. Drücken Sie den „Set“ Knopf mindestens 3 Sekunden lang. Danach ertönt ein Piepsignal, das Haupt-Display zeigt „0“ und „OK“ (siehe Abb. 22).
SICHERHEITSFUNKTIONEN DER WFT Electra 550 PR-SHP Ladekontrolle (23) (Abb. 23) Beim Anschluss der Rolle an die Stromver- blinkt sorgung erscheint im Display die Ladestandsanzeige. erlischt Bei ausreichender Batteriespannung erlischt die blin- kende Anzeige nach kurzer Zeit. Hört die Anzeige nicht auf zu blinken, oder erscheint sie während des Angelns,...
Keine Display-Anzeige Akku falsch angeschlossen Schließen Sie das Kabel nach dieser Bedienungsanleitung an. Kabelbruch Kontaktieren Sie Ihren WFT-Händler. Akku ist nicht ausreichend geladen Tauschen sie den Akku aus bzw. laden Sie den Akku. Display zeigt falsche Daten an Die Schnurdaten wurden Spulen Sie die Schnur neu auf, wie in dieser Bedienungsanleitung beschrie- nicht oder falsch eingespeichert.
PFLEGE UND WARTUNG Nach dem Angeln im Meer sollten Sie die Rolle abwischen oder mit einem fein zerstäubten Süßwasserstrahl absprühen und anschließend sorgfältig trocken wischen, um etwaige Salzablagerungen zu entfernen. Das Rollengehäuse ist zwar wasserfest; dennoch darf es nicht in Wasser eingetaucht oder mit einem zu starken Wasserstrahl abgewaschen werden. Sprühen Sie die Rolle keinesfalls mit Rostschutzmitteln ein, da diese das Schmierfett anlösen und zu Schäden im Getriebe führen können.
NÜTZLICHE TIPPS 2 wichtige Vorsichtsmaßnahmen: Nach unseren jahrelangen Erfahrungen mit Elektrorollen gibt es zwei Kardinalfehler, die für nahezu 100 % aller Rollendefekte verantwortlich sind: 1.) Bitte versuchen Sie keinesfalls, einen Hänger mit der Motorkraft der Rolle vom Grund zu lösen!!! 2.) Vermeiden Sie, während des Anschlagens (Hakensetzen beim Biss eines Fisches) auf dem Stromkabel der Rolle zu stehen!!!
ACHTUNG - AUTOMATISCHE SCHNURFÜHRUNG !!! Schäden an der Schnurführung von WFT Multirollen treten hauptsächlich aufgrund folgender falscher Handha- bung auf: Wenn die Schnur nach dem Aufspulen auf die Rolle aus der Schnurführung herausgenommen und beim Wiedereinfädeln in die Schnurführung nicht auf den korrekten Einfädelpunkt (Synchronisation von Schnurführer und aufgespulter Schnur) geachtet wird.
Für Elektrorollen liefern wir generell keine Ersatzteile, da der kundenseitige Selbsteinbau bei diesen aufwändig kon- struierten Rollen wiederholt zu erheblichen Problemen führte. Wir bitten um Ihr Verständnis, dass derartige Reparatu- ren nur werksseitig bei WFT erfolgen können. Vertrieb und Service: World Fishing Tackle GmbH &...

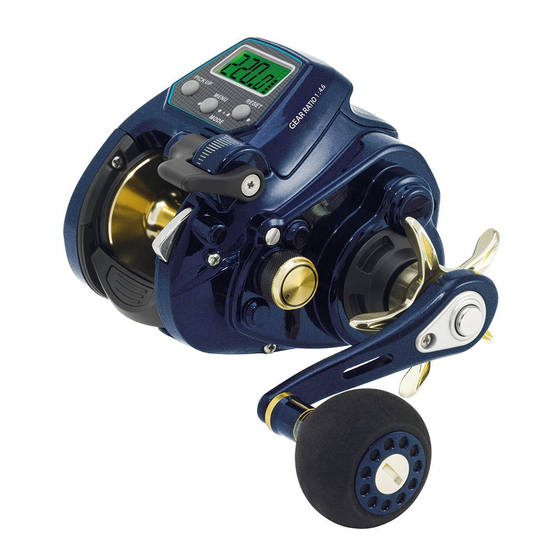

FEATURES WFT Electra 550 PR-SHP The WFT Electra 550 PR-SHP reel features a high-performance electric motor that delivers 20 kg tractive force. You can pick up your bait fast and easily, even from great depths of water, with a continuously variable winding speed (Power Slider) of up to approximately 240 meters per minute.
SAFETY INSTRUCTIONS (WFT Electra Reels are safety certified.) The electric motor of this reel requires a DC 12V power supply. Operation with different voltages may lead to overheating or can even cause a sudden ignition in extreme cases. Use only a fully charged battery. After a long idle time the battery may become discharged and should be re-charged before use.
OPERATING FEATURES Control Box Clutch Return Powerslider Press knob for quick clutch engagement. Controls motor ON/OFF and winding speed. Pushing the lever forward increases the speed, pulling it backwards decreases the speed. Brake Knob Controls the free spool rotation; allows for precise adjustment in order to prevent backlashes when releasing the line.
DIGITAL CONTROL UNIT FEATURES Battery Level Indicator Main Display Displays the battery voltage. Flashes when the battery needs Indicates length of released line to be charged or replaced. (Water Depth). Speed Meter Sub-Display Indicates the winding speed of the electric motor. * Indicates target depth (in depth mode) * Indicates distance between bait and Memo-Button...
POWER SUPPLY BATTERY CONNECTING (Fig. 1) Connect the red clip of the cable to the positive (+) and the black clip to the negative (-) terminal of the battery. (Fig. 2) Connect the cable plug to the power cable port on the reel body. Then fasten the screw ring finger-tight.
Choose the type of fishing line by repeatedly pressing the ‘PICK UP’ button. If you use 0,22 mm diameter WFT 32 KG STRONG you want to choose „PE4“ (see fig. 8). (The menu offers line options from PE2 to PE6 plus „Economizing“-programs for filling with explicit lengths of PE2, PE3 and PE4 lines.
Filling the reel with line and saving the line data - continued Then wind approximately 260 meters of WFT 32KG STRONG line onto the spool by pushing the Power Slider forward. Make sure there is enough tension on the line so it builds up a firm and compact layer on the spool.
FISHING with the WFT Electra 550 PR-SHP The ‘Bait-at-Hand’ position (10) flashes When you start fishing, you want to set the ‘Bait-at-Hand’ position first. Hold the rod upright and release line from the reel until the bait is at a position where you can grab it easily.
ANGELN MIT DER WFT Electra 550 PR-SHP The ‘Water-Surface-Zero’ position For precise depth measurement it is necessary to store the ‘Water-Surface-Zero’ position with the bait held at the water surface. Drop the bait to the water surface. Press the ‘MEMO’ button once briefly. After this storage process an ‘OK’...
FISHING with the WFT Electra 550 PR-SHP Motor operation and speed control You can either control the winding speed by operating the Power Slider, or with the ‘PICK UP’ button. Motor operation with the ‘PICK UP’ Button / JIGGING-Funktion The motor reels the line in when you push the ‘PICK UP’ button. The motor stops when you release the button. For jigging simply press the button in repeated on-off-intervals.
Seite 34
FISHING with the WFT Electra 550 PR-SHP Motor operation and speed control - continued Motor operation with the Power Slider (Fig. 13) Increasing the winding speed: push the Power Slider towards the ‘MAX’ mark. (Fig. 14) Reducing the winding speed: move the Power Slider back towards the ‘MIN’ mark.
FISHING with the WFT Electra PRO 700 Depth mode and saving the target depth (16) When the reel is switched on for the first time, the default setting is the depth mode. In depth mode the main display shows the depth (released length of line) in capital digits (see fig.
Seite 36
FISHING with the WFT Electra 500 PR-SHP Bottom Mode and controlling the distance from the bottom Switching from depth mode to bottom mode: (Fig. 19) Pressing the ‘SET’ button for two seconds displays the ‘distance from the bottom’ in small digits below the depth reading.
FISHING with the WFT Electra 550 PR-SHP Correction of line data after a line-cut First, wind the entire line back on the reel. (Fig. 22) Press the ‘SET’ button for at least 3 seconds. A beep sounds, the display shows ‘0’ first and then ‘OK’...
SAFETY FEATURES of the WFT Electra 550 PR-SHP Battery Level Indicator (23) (Fig. 23) The battery level indicator appears on the dis- flashes play when the reel is connected to the power supply. disappears With sufficient battery voltage the flashing indicator disappears after a short time.
TROUBLESHOOTING No display Battery is connected incorrectly Connect the cable according to this manual. Cable break Contact your WFT dealer. Insufficient battery voltage Replace or re-charge the battery. Display shows incorrect data The line data is not stored Rewind the line as described in this manual or is incorrect.
CARE AND MAINTENANCE After fishing in saltwater spray the reel with freshwater and then carefully wipe it dry with a soft cloth to remove any salt deposits. The reel has a water resistant construction but it must not be immersed in water or washed off with a strong water-jet.
USEFUL HINTS Two important precautions: After years of experience with electric reels we have found that two cardinal mistakes are respon- sible for nearly 100% of all reel defects: 1.) Never try to loosen a bottom-snagged lure with the power of the electric motor. 2.) Do not stand on the power cable when lifting the rod sharply in order to set the hook.
ATTENTION – AUTOMATIC LEVEL WIND Damage to an automatic level-wind mainly occurs due to the following cases of mishandling: If the line is removed from the level-wind after winding in back on the reel and then re-inserted with the level-wind’s line- guide in the wrong position —...
We generally provide no spare parts for electric reels because the customer‘s self-installation in these elaborately con- structed reels repeatedly led to considerable problems. We ask for your understanding that such repairs can only be made at the WFT factory. Distribution & Services: World Fishing Tackle GmbH &...
