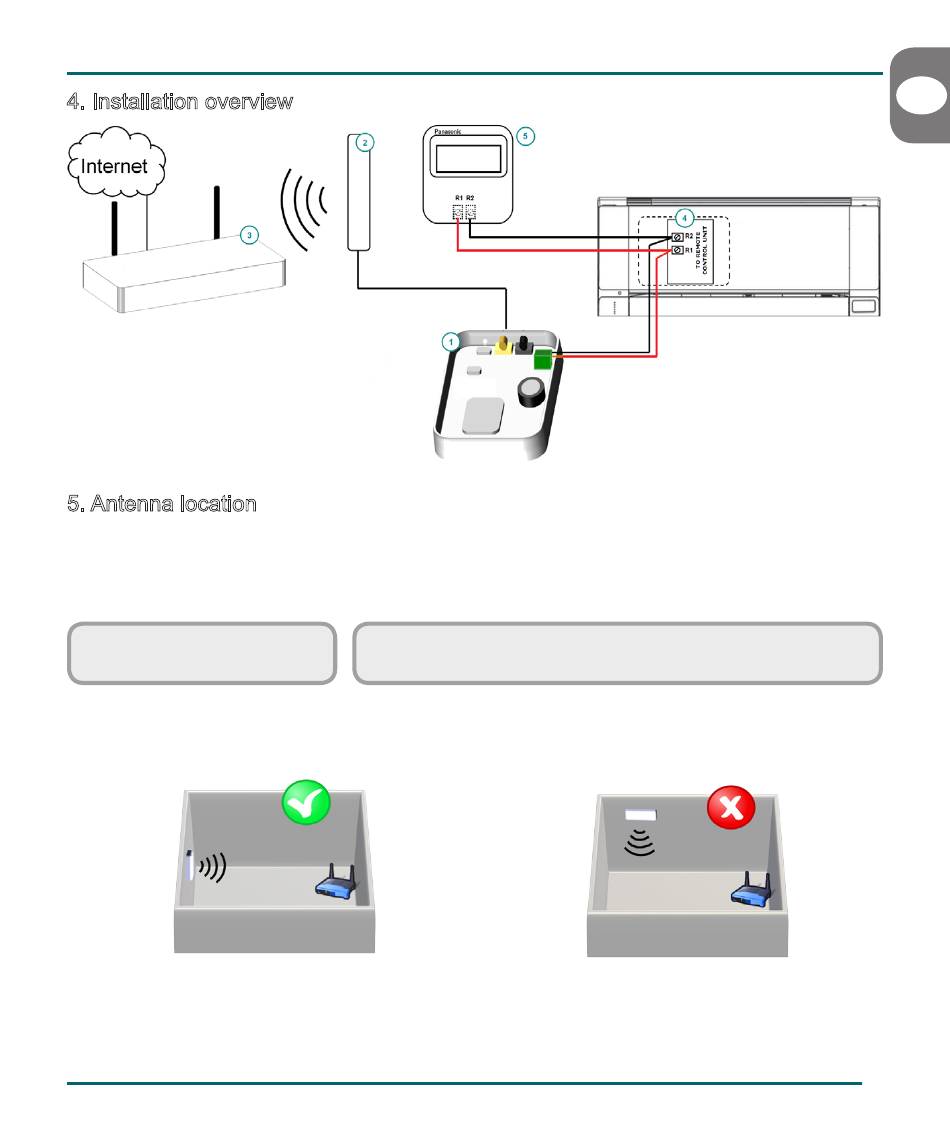

4. Installation overview

5. Antenna location
Locating the external antenna in a proper location and position will improve communication between the Intes-
isHome device and your Wi-Fi Router or Access Point (AP).
Remember to correctly screw the antenna connector in a clockwise direction until it stops.
Important: Avoid placing the
antenna next to metal surfaces.
Fix the external antenna preferably as close as possible from the Wi-Fi signal source (Access Point or Router).
Please, make sure that you place the antenna in a vertical position and pointing directly to your Wi-Fi Router
or Access Point (AP).
Antenna in vertical position and pointing to the
Wi-Fi Access Point or Router.
* See www.intesishome.com/docs/PA-RC2-WIFI-1_Install_Sketch.pdf
Important: When possible, try to check Wi-Fi coverage in the instal-
lation location. Good Wi-Fi level is strongly recommended.
Antenna in horizontal position and not pointing
INSTALLATION GUIDE
1. IntesisHome device
2. External antenna
3. Wi-Fi Access Point or Router
4. R1R2 connector
5. Remote Controller (RC)
to the Wi-Fi Access Point or Router.
for more information
