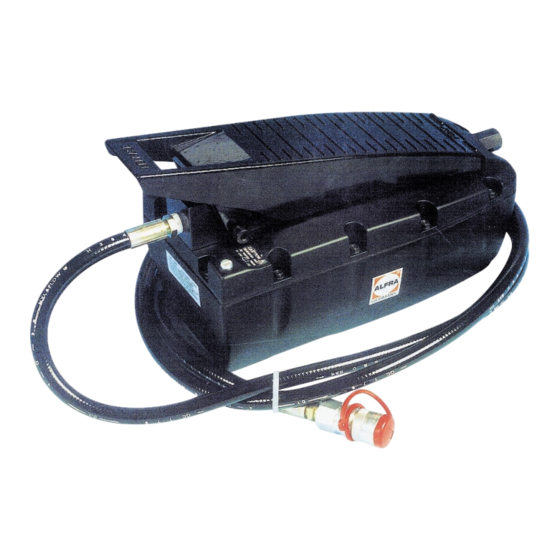

- Seite 1 Bedienungsanleitung / Operation Instructions LHP 700 Lufthydraulikpumpe Air-Hydraulik Pump Artikel Nr. 02140 / Prod.-No. 02140 / N° de produit 02140...
- Seite 2 Safety instructions The hydraulic pump is designed for a pressure of 700 bar (ca. 10.000 p.s.i.). Ensure that all connected components (connections, cylinders, valves) are compatible with this maximum pressure rating. The dismantling, the re-assembly and the operation of the pump are only to be carried out by trained personnel who know the system.
- Seite 3 Technical data Maximum operating pressure: 700 bar Air pressure: 2.8 – 8.0 bar Output flow: 0.8 – 0.1 l/min Oil volume usable Laying down: 2.4 - 2.1 L Standing up: 2.2 - 1.5 L Air connection: G ¼” Oil connections: 3/8”...
-
Seite 4: Maintenance
Cleaning of the air-breather In the inner of the pneumatic connection (8) you find the air-breather (7). Use a flat screwdriver to loosen the breather and take it out. Clean the breather with compressed air and put it back. Do not turn the screw too hard for not damaging the threads. - Seite 6 Explosionszeichnung Pumpengehäuse / Exploded drawing pump body...
- Seite 7 Ersatzteilliste - Pumpengehäuse / Spare part list - pump body Description Description Pos. Beschreibung Tank Reservoir Réservoir Pumpenplatte Cover Plaque de pompe Dichtung f. Pumpenplatte Cover seal Joint pour plaque Ölschauglas Oil level Regard de niveau d’huile Typenschild Identification label Étiquette d’article Luftfilter Air filter...
- Seite 8 Explosionszeichnung Pumpeneinheit / Exploded drawing pump unit...
- Seite 9 Ersatzteilliste - Pumpeneinheit / Spare part list - pump unit Pos. Beschreibung Description O-Ring O-ring Schraube, selbstschneidend Thread-forming screw Anschlußwinkel Cover-head adapter Klammer Locking-adapter staple O-Ring O-ring Dichtung Seal Buchse Bushing O-Ring O-ring Schraube Screw Stopfen Head plug Klammer Locking head staple Gehäusekopf Head Stift...
- Seite 10 Inhalt Ersatzteilpaket / Contents spare part kit Pos. Bezeichnung Description Stück / Qty. No. 3 Dichtung Pumpenplatte Cover seal No. 7 Luftfilter Air filter No. 11 O-Ring O-ring No. 13 O-Ring O-ring No. 15 Quad-Ring Ring No. 26 O-Ring O-ring No.
- Seite 12 Alfred Raith GmbH Tel. 06205-3051-0 2. Industriestr. 10 Fax 06205-3051-150 D-68766 Hockenheim Internet: www.alfra.de E-mail: info@alfra.de...
