6. Components and controls

1
2
3

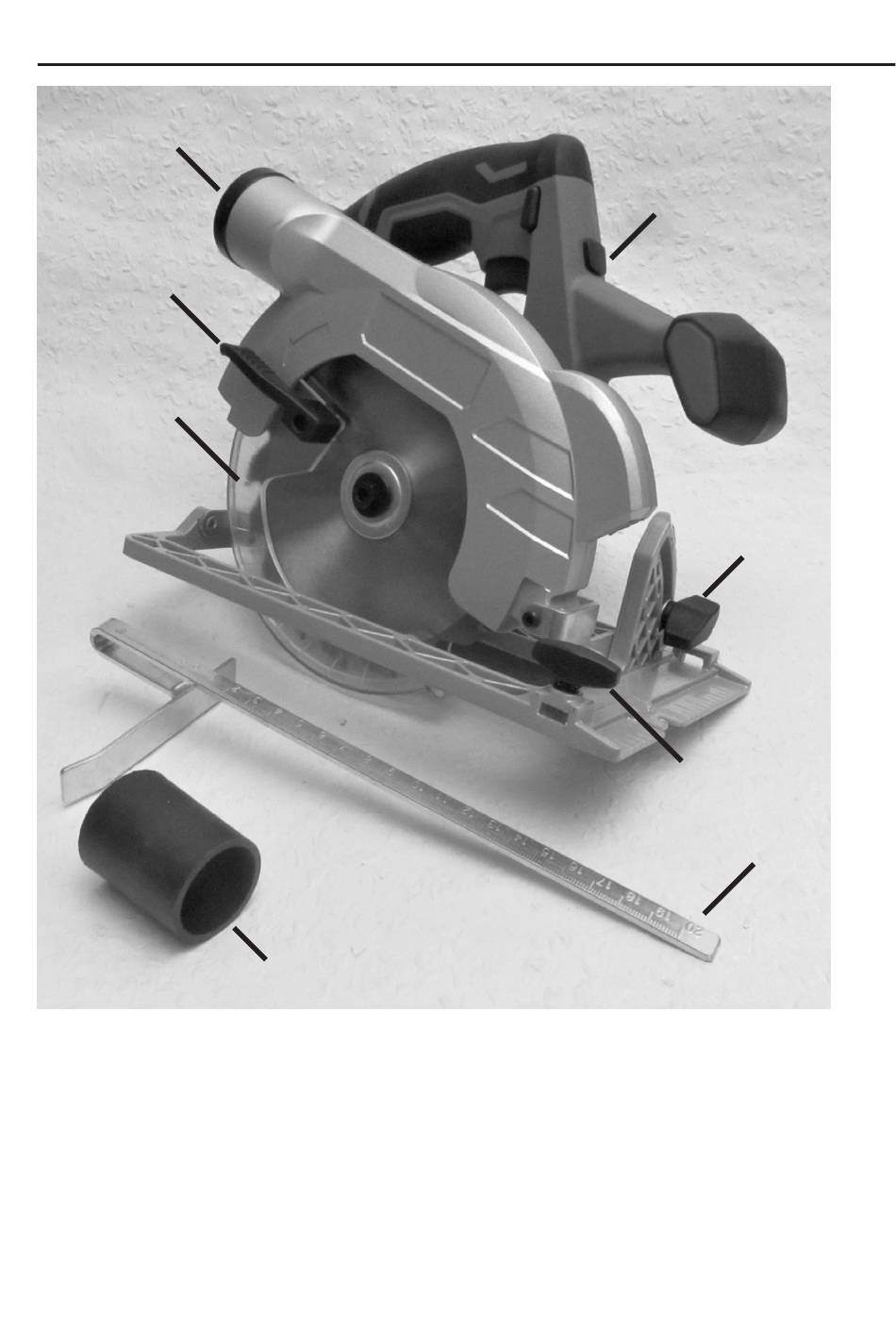

1 Dust extraction
2 Oscillating guard handle
3 Oscillating guard
4 No function
28
7
5 Locking screw for cutting angle adjustment
6 Locking screw for rip fence
7 Adapter for dust extraction
8 Rip fence
