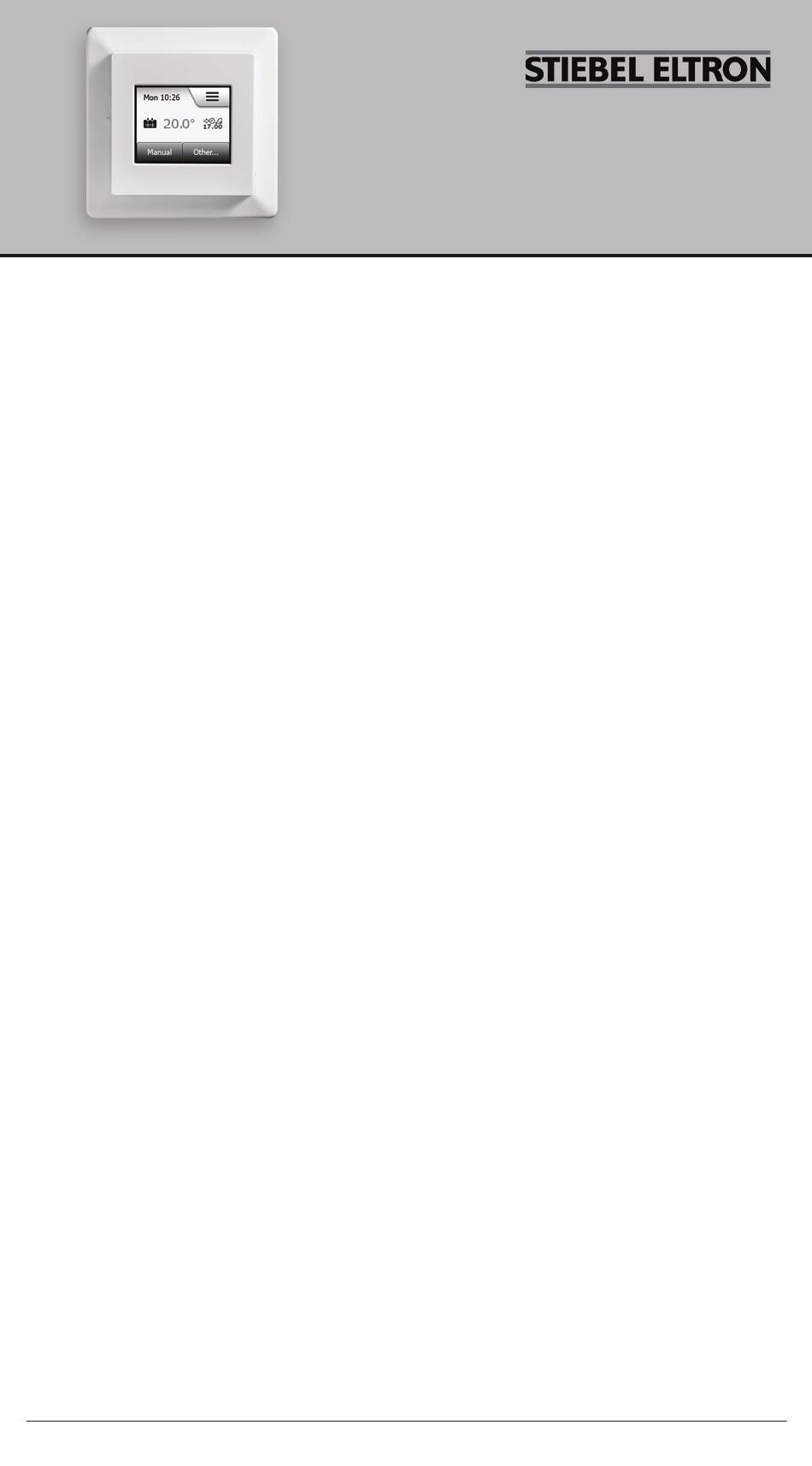

Steibel Eltron RTF-TC Anleitung Seite 7

FIG. 1 - CONTENT
• Thermostat
• Sensor
The thermostat is an electronic PWM/PI thermostat for temperature
control by means of an NTC sensor located either externally or
internally within the thermostat.
The thermostat is for fl ush mounting in a wall socket. A baseplate
for wall mounting is also available.
This thermostat can be used as a controller for electric room heating
pursuant to EN50559.*
* Only valid for RTF-TC (MCD5-1999)
Product programme
RTF-TC (MCD5-1999)
RTU-TC (MCC5-1999)
FIG. 2 - WARNING – Important Safety Instructions
Disconnect the power supply before carrying out any installation or
maintenance work on this thermostat and associated components.
The thermostat and associated components should only be installed
by a competent person (i.e. a qualifi ed electrician). Electrical instal-
lation must be in accordance with appropriate statutory regulations.
FIG. 3 - THERMOSTAT PLACEMENT
Mounting of sensor
The fl oor sensor contains a safety extra-low voltage (SELV) circuit,
allowing it to be placed as close to the fl oor surface as possible
without having to take account of the risk of shock should the sen-
sor cable become damaged. The two wires connecting the sensor
to the mounting box must be additionally insulated, e.g. shrink fl ex.
RTF-TC
RTU-TC
Instruction
English
Clock-thermostat with two sensors:
fl oor sensor and built-in room sensor.
Clock-thermostat with built-in room
sensor.
© 2018 OJ Electronics A/S 7
