dSCR Multiswitch
TdSCR504/508/512
Note: when using the product in wideband mode, the product will automatically make the translation between the
input frequency and the output frequency. For example a STB tunes to Horizontal High band, the product will
convert the incoming horizontal band 1290- 2340MHz into the output range between 1100-2150MHz.
The same is true when using the product as a Wideband dSCR multiswitch. If the STB tunes to a Vertical Low band
channel, 1000MHz for example, the multiswitch will take the incoming vertical transponder at 340MHz and convert
to Sat IF 1000MHz and output to one of the dSCR output user bands.

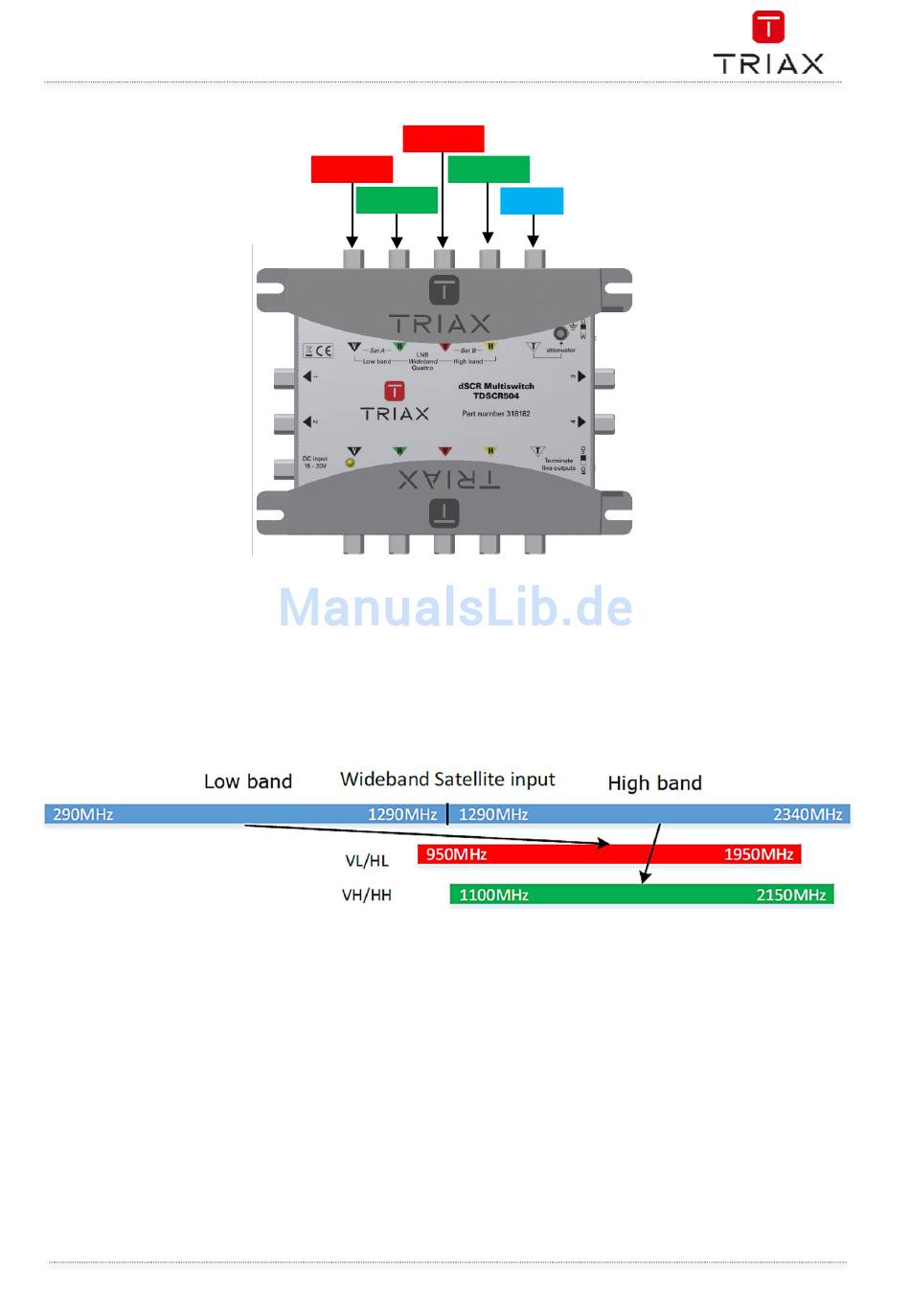

The diagram above shows the basic frequency relation between wideband satellite frequencies and the standard
legacy satellite frequencies.
Output: Legacy and dSCR
Independent of the selected input mode, the outputs can support legacy and SCR/dSCR Set Top Boxes.
At start up, the Switch output works in Legacy mode and can be used as a universal, or a 2 x wideband multiswitch,
depending on the position of the toggle switch.
When receiving the first dSCR command, the unit will automatically switch into dSCR mode and supports the
following standards:
V Sat B
V Sat A H Sat B
H Sat A
3
Terr
