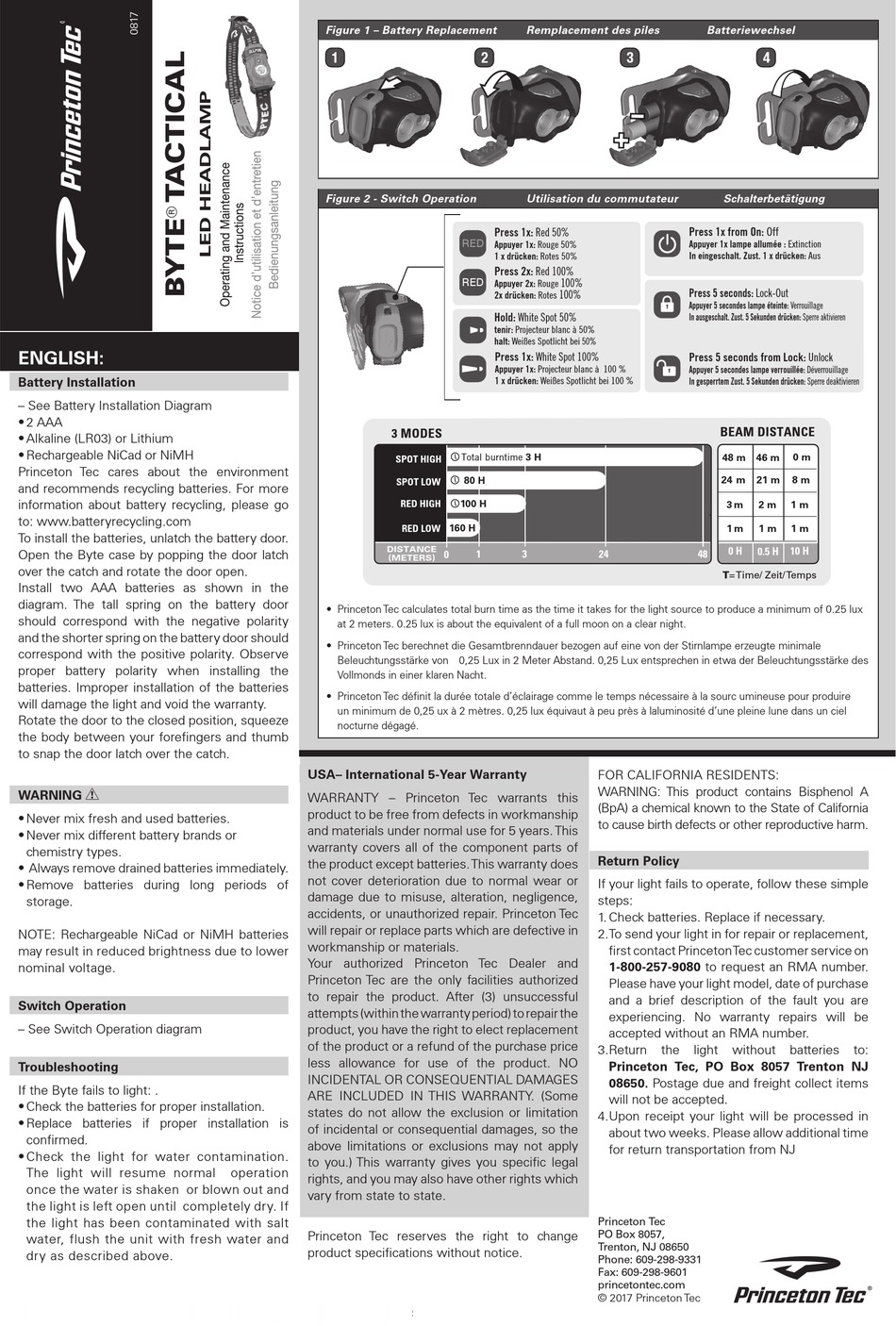

Princeton Tec Byte Tactical Bedienungsanleitung

ENGLISH:
Battery Installation
– See Battery Installation Diagram
• 2 AAA
• Alkaline (LR03) or Lithium
• Rechargeable NiCad or NiMH
Princeton Tec cares about the environment
and recommends recycling batteries. For more
information about battery recycling, please go
to: www.batteryrecycling.com
To install the batteries, unlatch the battery door.
Open the Byte case by popping the door latch
over the catch and rotate the door open.
Install two AAA batteries as shown in the
diagram. The tall spring on the battery door
should correspond with the negative polarity
and the shorter spring on the battery door should
correspond with the positive polarity. Observe
proper battery polarity when installing the
batteries. Improper installation of the batteries
will damage the light and void the warranty.
Rotate the door to the closed position, squeeze
the body between your forefingers and thumb
to snap the door latch over the catch.
!
WARNING
• Never mix fresh and used batteries.
• Never mix different battery brands or
chemistry types.
• Always remove drained batteries immediately.
• Remove batteries during long periods of
storage.
NOTE: Rechargeable NiCad or NiMH batteries
may result in reduced brightness due to lower
nominal voltage.
Switch Operation
– See Switch Operation diagram
Troubleshooting
If the Byte fails to light: .
• Check the batteries for proper installation.
• Replace batteries if proper installation is
confirmed.
• Check the light for water contamination.
The light will resume normal
once the water is shaken or blown out and
the light is left open until completely dry. If
the light has been contaminated with salt
water, flush the unit with fresh water and
dry as described above.
Figure 1 – Battery Replacement
1
Figure 2 - Switch Operation
3 MODES
SPOT HIGH
SPOT LOW
DISTANCE
(METERS)
• Princeton Tec calculates total burn time as the time it takes for the light source to produce a minimum of 0.25 lux
at 2 meters. 0.25 lux is about the equivalent of a full moon on a clear night.
• Princeton Tec berechnet die Gesamtbrenndauer bezogen auf eine von der Stirnlampe erzeugte minimale
Beleuchtungsstärke von 0,25 Lux in 2 Meter Abstand. 0,25 Lux entsprechen in etwa der Beleuchtungsstärke des
Vollmonds in einer klaren Nacht.
• Princeton Tec définit la durée totale d'éclairage comme le temps nécessaire à la sourc umineuse pour produire
un minimum de 0,25 ux à 2 mètres. 0,25 lux équivaut à peu près à laluminosité d'une pleine lune dans un ciel
nocturne dégagé.
USA– International 5-Year Warranty
WARRANTY – Princeton Tec warrants this
product to be free from defects in workmanship
and materials under normal use for 5 years. This
warranty covers all of the component parts of
the product except batteries. This warranty does
not cover deterioration due to normal wear or
damage due to misuse, alteration, negligence,
accidents, or unauthorized repair. Princeton Tec
will repair or replace parts which are defective in
workmanship or materials.
Your authorized Princeton Tec Dealer and
Princeton Tec are the only facilities authorized
to repair the product. After (3) unsuccessful
attempts (within the warranty period) to repair the
product, you have the right to elect replacement
of the product or a refund of the purchase price
less allowance for use of the product. NO
INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARE INCLUDED IN THIS WARRANTY. (Some
states do not allow the exclusion or limitation
of incidental or consequential damages, so the
above limitations or exclusions may not apply
to you.) This warranty gives you specific legal
operation
rights, and you may also have other rights which
vary from state to state.
Princeton Tec reserves the right to change
product specifications without notice.
Remplacement des piles
2
Utilisation du commutateur
Press 1x: Red 50%
RED
Appuyer 1x: Rouge 50%
1 x drücken: Rotes 50%
Press 2x: Red 100%
RED 100%
Appuyer 2x: Rouge
100%
2x drücken: Rotes
Hold: White Spot 50%
tenir: Projecteur blanc à 50%
halt: Weißes Spotlicht bei 50%
Press 1x: White Spot 100%
Appuyer 1x: Projecteur blanc à 100 %
1 x drücken: Weißes Spotlicht bei 100 %
Total burntime 3 H
80 H
RED HIGH 100 H
160 H
RED LOW
0 1 3
Batteriewechsel
3 4
Schalterbetätigung
Press 1x from On: Off
Appuyer 1x lampe allumée : Extinction
In eingeschalt. Zust. 1 x drücken: Aus
Press 5 seconds: Lock-Out
Appuyer 5 secondes lampe éteinte: Verrouillage
In ausgeschalt. Zust. 5 Sekunden drücken: Sperre aktivieren
Press 5 seconds from Lock: Unlock
Appuyer 5 secondes lampe verrouillée: Déverrouillage
In gesperrtem Zust. 5 Sekunden drücken: Sperre deaktivieren
BEAM DISTANCE
48 m 46 m
24 m 21 m
3 m 2 m
1 m
1 m
0 H 0.5 H 10 H
24 48
T= Time/ Zeit/ Temps
Time/ Time/ Time/ Time/ Temps
FOR CALIFORNIA RESIDENTS:
WARNING: This product contains Bisphenol A
(BpA) a chemical known to the State of California
to cause birth defects or other reproductive harm.
Return Policy
If your light fails to operate, follow these simple
steps:
1. Check batteries. Replace if necessary.
2. To send your light in for repair or replacement,
first contact Princeton Tec customer service on
1-800-257-9080 to request an RMA number.
Please have your light model, date of purchase
and a brief description of the fault you are
experiencing. No warranty repairs will be
accepted without an RMA number.
3. Return the light without
Princeton Tec, PO Box 8057 Trenton NJ
08650. Postage due and freight collect items
will not be accepted.
4. Upon receipt your light will be processed in
about two weeks. Please allow additional time
for return transportation from NJ
Princeton Tec
PO Box 8057,
Trenton, NJ 08650
Phone: 609-298-9331
Fax: 609-298-9601
princetontec.com
© 2017 Princeton Tec
0 m
8 m
1 m
1 m
Temps Temps Temps
batteries to:
