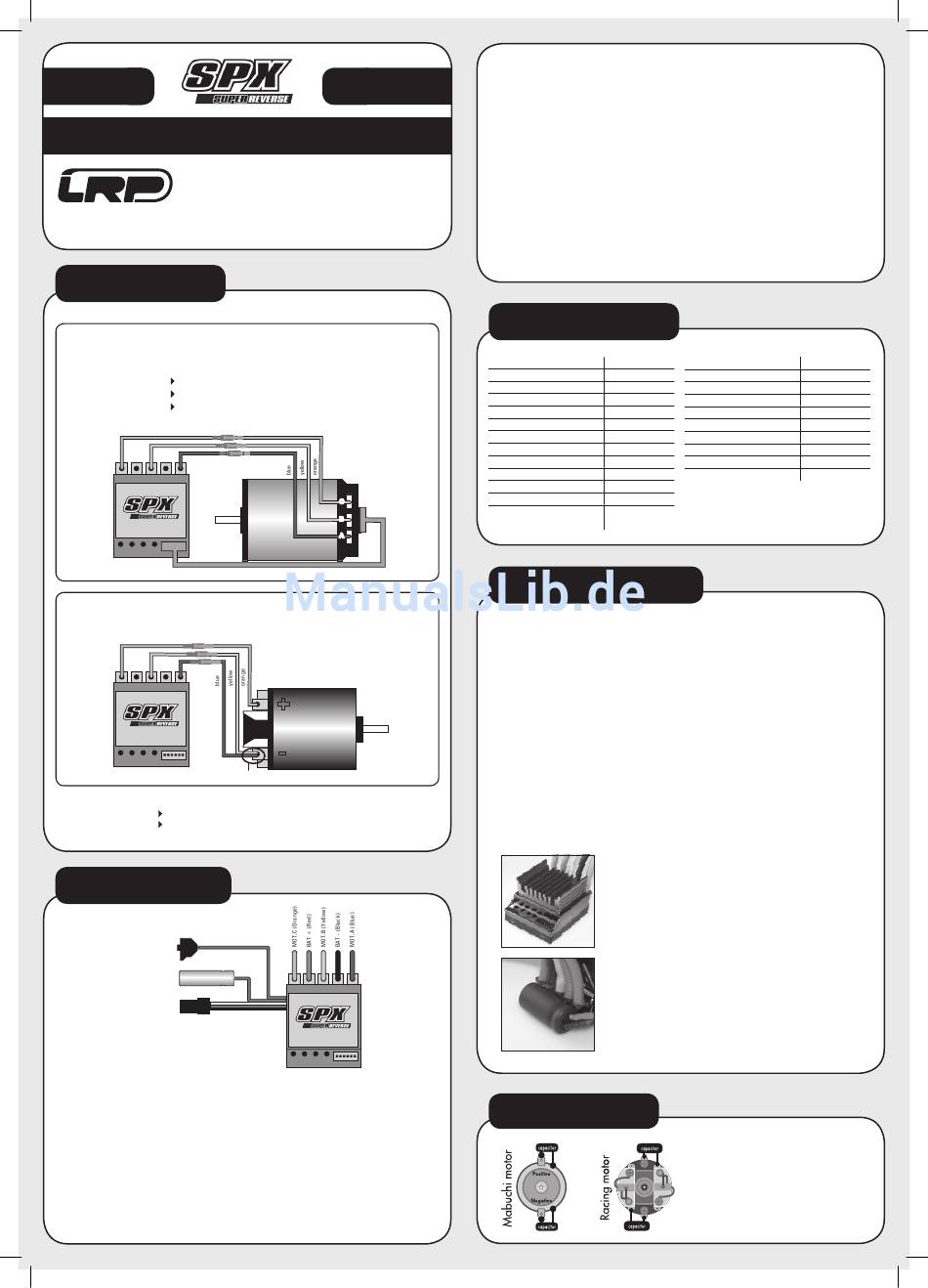

LRP electronic SPX SUPER REVERSE Bedienungsanleitung

RA00242
ORDER NO.:
80400
USER MANUAL
LRP electronic GmbH
Wilhelm-Enssle-Str. 132-134
73630 Remshalden
Germany
info@LRP.cc
www.LRP.cc
1. INSTALLATION
• Connect the speed-control to the receiver (position: Channel 2)
BRUSHLESS MOTOR:
The LRP SPX SUPER REVERSE comes pre-wired using common JST motor connectors. It's simply „plug
& play" when you intend using a designated LRP Brushless motor, see picture below! You can of course
also use the supplied optional 2.6mm² power wires for a „hardwired" setup without connectors.
• Blue power-wire Speedo MOT.A to motor „A"
• Yellow power-wire Speedo MOT.B to motor „B"
• Orange power-wire Speedo MOT.C to motor „C"
• Connect the hall sensor cable to the speed-control and the motor.
C + B – A
BRUSHED MOTOR:
• MOT.A (blue) and MOT.B (yellow) will be the combined „minus" on the brushed motor.
• MOT.C (orange) wire will be „plus" on the brushed motor.
C + B – A
Together to minus
• Doublecheck all connections before connecting the speed-control to a battery.
CAUTION: If battery is connected with reversed polarity it will destroy your speed-control!
• Red power-wire Speedo BAT+ to battery „Plus"
• Black power-wire Speedo BAT- to battery „Minus"
• The speed-control is now ready to be set-up (see section 6).
2. CONNECTIONS
On/Off - Switch
Power Capacitor
Receiverwire
RECEIVER CONNECTING WIRE:
This speed-control is equipped with an LRP Multicon receiver
wire. As supplied, it will easily fit in all ordinary receivers.
HALL SENSOR WIRE:
This bi-directional multipole wire (which comes with the motor and NOT the speed-control!) connects the
speed-control and the motor. Do not alter or modify this cable! There are replaceable/optional hall sensor wires
available: • #81910 (20cm) • #81920 (10cm)
POWER WIRES:
The LRP SPX SUPER REVERSE comes pre-wired using common Tamiya/JST battery connector and JST motor
connectors. It's simply „plug & play" when you intend using a designated LRP Brushless motor! There is a
complete set of 2.6mm² power wires included, which allow you to use a „hardwired" wire setup. The unique
splitted solder-tabs allow easy and convenient replacement of the power wires. Nevertheless some soldering
skills are required. Talk to your local hobbyshop if you are concerned about replacing the wires yourself. There
is a replacement power wire set available: #82505
CAUTION: Be very careful with the correct wire sequence since an incorrect connection may damage the
speed-control! Avoid creating solder bridges on the solder-tabs and isolate all connections carefully. Avoid
soldering longer then 5sec per soldering joint.
© LRP electronic GmbH 2008
BRUSHLESS + BRUSHED
OVER 5.5T (BRUSHLESS - STAR)
OVER 7T (BRUSHED)
C
B
A
Hall Sensor Wire
+
-
Hall Sensor Connector
Dear Customer,
thank you for your trust in this LRP product. By purchasing a LRP SPX SUPER REVERSE speed-cont-
rol, you have chosen one of the most advanced speed-controls of today. This speed-control with all of its
high-tech features and specially selected electronic components is offering great value for the money.
• 4 speed controls in 1 (Brushless, Brushed, Fwd/Brk/Rvs, Fwd/Brk)
• 4 fully adjustable modes
• Sensored Design
• Advanced Digital
• Small and Lighweight
• IceDrive Design
Please read the following instructions carefully before you start using your LRP SPX SUPER REVERSE speed
control. This user guide contains important notes for the safety, the use and the maintenance of this product.
Thus protecting yourself and avoid damages of the product.
Proceed according to the user guide in order to understand your LRP SPX SUPER REVERSE speed control better.
Please take your time as you will have much more joy with your product if you know it exactly.
This user manual shall be kept in a safe place. If another customer is using this product, this manual has to be
handed out together with it.
3. SPECIFICATIONS
Brushless + Brushed yes
Brushless + Brushed adaption AUTOMATIC
Forward/Brake yes
Forward/Brake/Reverse yes
Case Size 33.1x37.6x14.9mm
Weight (excl. wires) 24.5g
Voltage Input 4.8-8.4V
2
Rec. Motor Limit for Star winds (Brushless) over 5.5 turns
2
Rec. Motor Limit (Brushed) über 7 turns
4
Typ. Voltage Drop (Brushless) @20A - 0.017V / phase
4
Rated Current (Brushless) 300A / phase
Compatible winding styles (Brushless) Star
4 adjustable modes
(NiMH/LiPo, Forward/Brake - Forward/ yes
Brake/Reverse, Power Profiles, Auto-Brake)
4. INSTALLATION TIPS
• Mount the speedo using the supplied thick/black doubled-sided tape.
• Position the speed-control where it is protected in the event of a crash.
• Install the speed-control so that you have easy access to the connector and buttons.
• Make sure there is enough clearance (about 3cm) between the speed-control, power-wires, antenna and
receiver. Avoid any direct contact between power components, the receiver or the antenna. This can cause
interference. If interference occurs, position the components at a different place in the model.
• The aerial should be run vertically up and away from the receiver. Avoid contact with any parts made of
carbon fibre or metal. If the aerial is too long, don't coil up the excess length. It is better to cut it down to a
length of about 35 cm. See also the instructions supplied with your radio control system.
• Make sure there are enough cooling slits in the body. This will increase the performance and life of all the
electronic components.
HEATSINK: We recommend using the supplied heatsink in order to achieve best performance even under
extreme circumstances. Clean the heatsink and stickerplate before you attach the clear/thin Scotch 468MP
thermal tape to guarantee perfect heat dissipation.
Caution: Use ONLY the supplied clear/thin Scotch 468MP thermal tape to attach the heatsink! Do not us stan-
dard double sided tape to attach the heatsink as standard tape does not transfer heat!
Because of the physical principles of brushless technology, the speed-controls do get a little hotter then brushed
systems. Therefore it is required to let the speed-control cool down completely after every run. When running
in extreme conditions (high ambient temperature, low-turn motors, high gear ratios, etc.) we recommend using
the optional pre-wired cooling fan (#82511) which fits perfectly into the supplied heatsink.

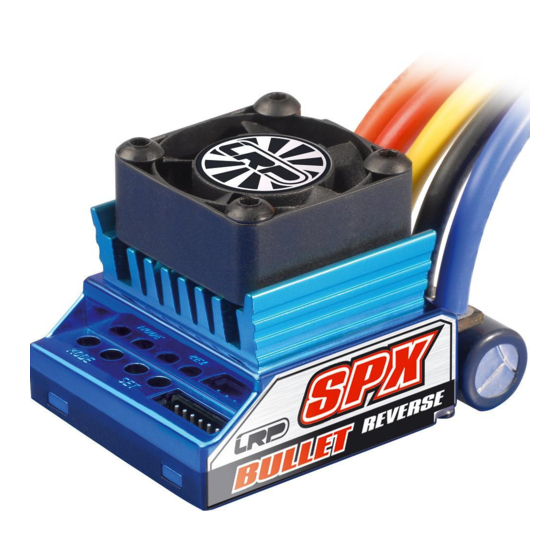

LRP SPX SUPER REVERSE with heat sink.
Mount the power-capacitor in a position where it is protected in the event of a
crash. The best place is right next to the speed-control (see picture). Secure it
with doublesided tape.
5. SUPPRESSION
• AutoCell System
• Internal-Temp-Check system
• 4, 5, and 6 cell optimised
• Big Power Capacitor
• additional 2.6mm² Power-Wire-Set included
4
Typ. Voltage Drop (Brushed) @20A - 0.013V
4
Rated Current (Brushed) 300A
B.E.C. 6.0V/3.0A
High Frequency yes
Sensored Brushless System yes
Multi-Protection-System yes
Connectors Std. Tamiya Style
Power Wires (additional) 2.6mm²
4, 5, 6 cell optimised yes
Internal-Temp-Check System yes
4
Transistors rating at 25°C junction temperature
2
measured at 7.2V
Specifications subject to change without notice.
ONLY FOR BRUSHED MOTORS! Motors with no
capacitors or not enough capacitors may interfere
with the speed-control. To avoid this, solder the
supplied capacitors to your motor (see picture).
