Setting the room temperature control unit/display view
• d12=TTemperatur from external temperature sensor,
actual temperature and time (alternating)
• d13=Actual/setpoint temperature, date and time (alternating)
• d14=Actual/setpoint temperature, ventilation level
and time (alternating)
• d15= Temperatur from external temperature sensor,
actual temperature, ventilation level and time (alternating)
4 Save the new desired setting by giving the centre key a long press.
The new setting is stored; the standard display is shown.

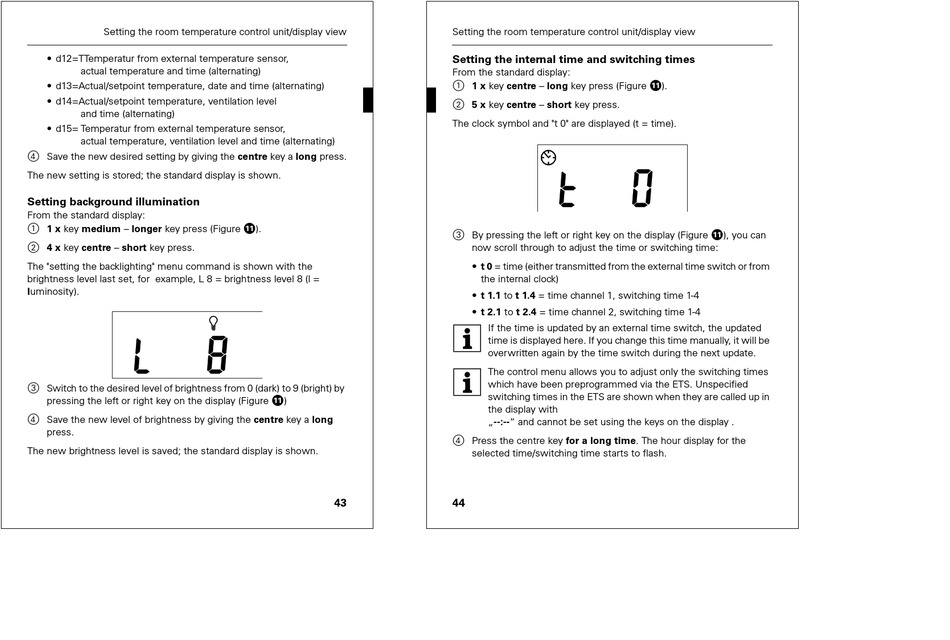

Setting background illumination

From the standard display:
1 1 x key medium – longer key press (Figure ?).
2 4 x key centre – short key press.
The "setting the backlighting" menu command is shown with the
brightness level last set, for example, L 8 = brightness level 8 (l =
luminosity).
3 Switch to the desired level of brightness from 0 (dark) to 9 (bright) by
pressing the left or right key on the display (Figure ?)
4 Save the new level of brightness by giving the centre key a long
press.
The new brightness level is saved; the standard display is shown.
Setting the room temperature control unit/display view

Setting the internal time and switching times

From the standard display:
1 1 x key centre – long key press (Figure ?).
2 5 x key centre – short key press.
The clock symbol and "t 0" are displayed (t = time).
3 By pressing the left or right key on the display (Figure ?), you can
now scroll through to adjust the time or switching time:
• t 0 = time (either transmitted from the external time switch or from
the internal clock)
• t 1.1 to t 1.4 = time channel 1, switching time 1-4
• t 2.1 to t 2.4 = time channel 2, switching time 1-4
If the time is updated by an external time switch, the updated
|
time is displayed here. If you change this time manually, it will be
overwritten again by the time switch during the next update.
| The control menu allows you to adjust only the switching times
which have been preprogrammed via the ETS. Unspecified
switching times in the ETS are shown when they are called up in
the display with
„--:--" and cannot be set using the keys on the display .
4 Press the centre key for a long time. The hour display for the
selected time/switching time starts to flash.
43 44
