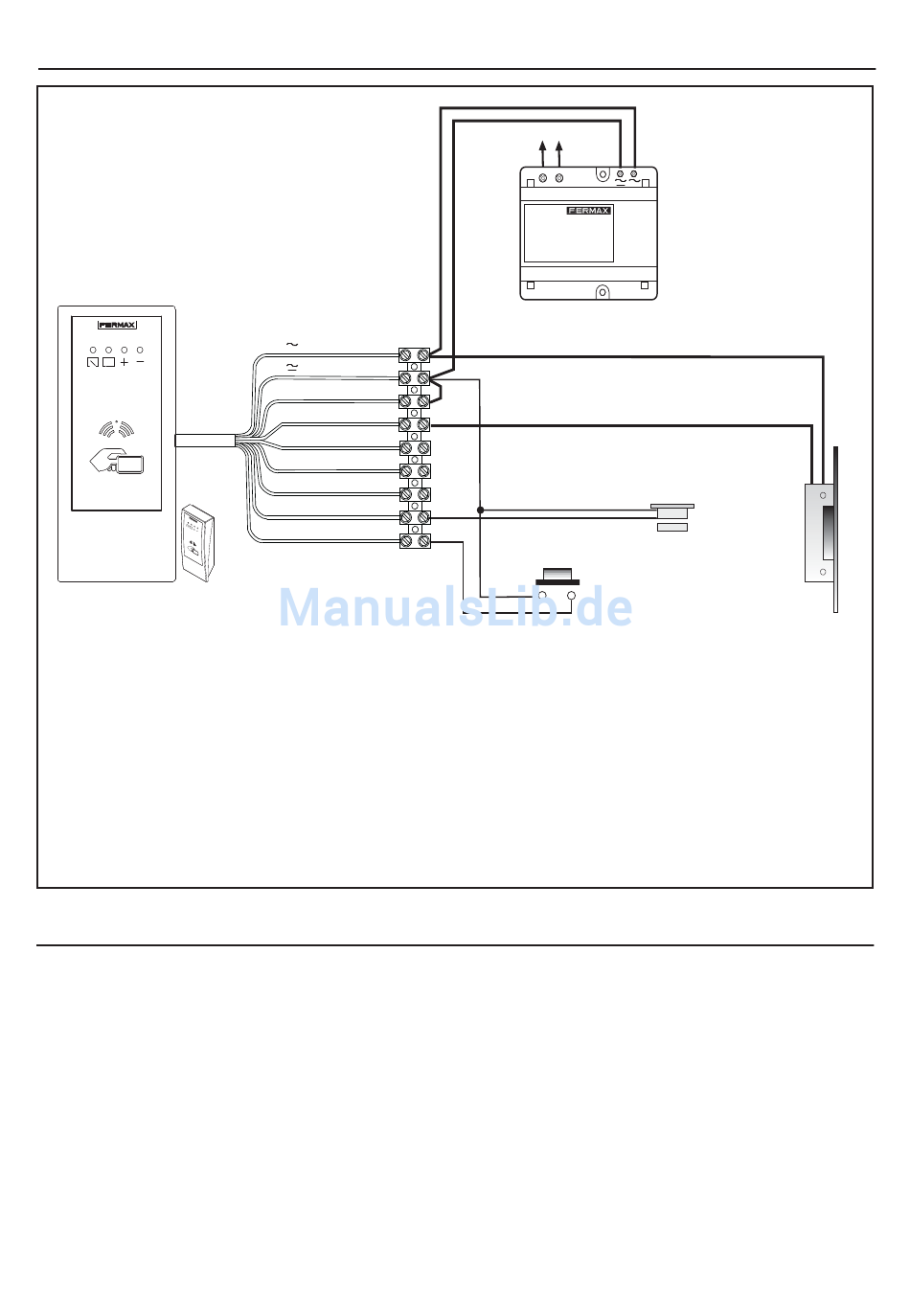

WIRING DIAGRAM

Reader connections:
Door opening pushbutton (Bs, -): Required to open the door with the same timing adjustment
which has been programmed in the access (1 to 99 sec.). N.O. Contact.
Opening door sensor (Sp, -): In order to determine if the door remains opened more than the
permitted time (1 a 99 seg.). N.C. contact.
Connection to PC: Programming Kit Ref. 3625 required.
Note: Use a door release appropiate to the power supply, (Vac or Vdc).

TECHNICAL FEATURES

Supply: 12 Vdc/Vac.
Reading distance card/reader: 8 cm. (aprox).
Working Temperature: 0 - 60º C.
Interface: RS-485 to connect to PC.
Capacity: 400 users.
Consumption:
* Standby:
* Reading a card:
* With the door release activated:
Programming cards, erase cards and other options of the system through the Master
card, PC or a Proximity Programming Keypad (Ref. 2306).
Brown
Red
'C'
Orange
'NO'
Yellow
'NC'
Green
'Sa'
Blue
'Sb'
Violet
'Sp'
White
'Bs'
Grey
45 mA.
60 mA.
75 mA. (door release 12 Vdc)
SEC 12Vac/dc
PRIM 230V
POWER SUPLPY
12 Vac / 12 Vdc
OPENED DOOR SENSOR N.C.
(optional)
EXIT BUTTON
(optional)
ELECTRIC LOCK
(max. 2A)
Pag 9
