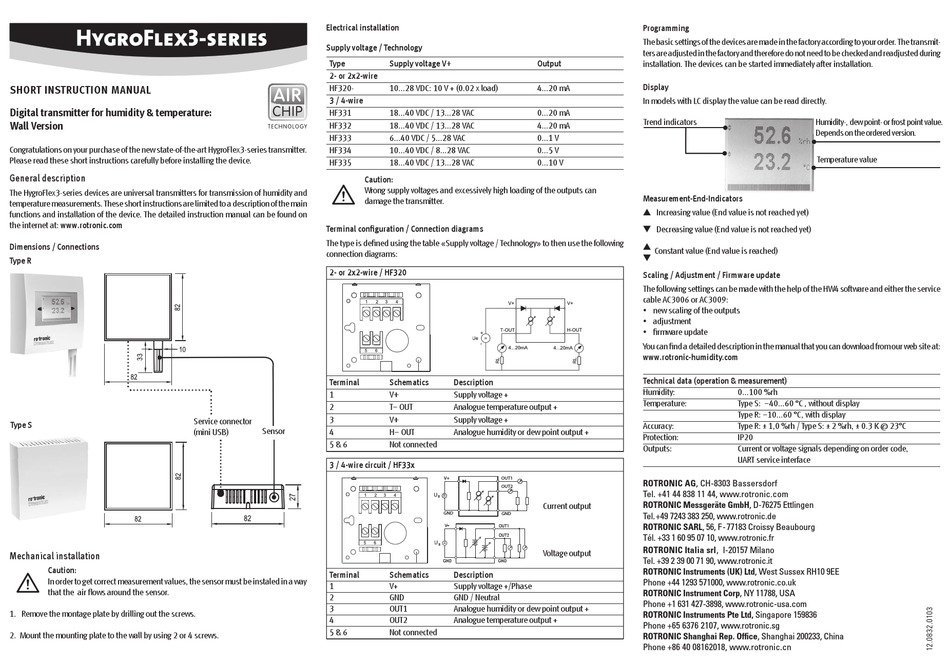

Rotronic HF331 Kurzbedienungsanleitung Seite 2

SHORT INSTRUCTION MANUAL
Digital transmitter for humidity & temperature:
Wall Version
Congratulations on your purchase of the new state-of-the-art HygroFlex3-series transmitter.
Please read these short instructions carefully before installing the device.
General description
The HygroFlex3-series devices are universal transmitters for transmission of humidity and
temperature measurements. These short instructions are limited to a description of the main
functions and installation of the device. The detailed instruction manual can be found on
the internet at: www.rotronic.com
Dimensions / Connections
Type R
Type S
Mechanical installation
A
Caution:
In order to get correct measurement values, the sensor must be instaled in a way
that the air fl ows around the sensor.
1. Remove the montage plate by drilling out the screws.
2. Mount the mounting plate to the wall by using 2 or 4 screws.
Electrical installation
Supply voltage / Technology
Type
2- or 2x2-wire
HF320-
3 / 4-wire
HF331
HF332
HF333
HF334
HF335
A
Caution:
Wrong supply voltages and excessively high loading of the outputs can
damage the transmitter.
Terminal confi guration / Connection diagrams
The type is defi ned using the table «Supply voltage / Technology» to then use the following
connection diagrams:
2- or 2x2-wire / HF320
Terminal
1
2
3
Service connector
Sensor
(mini USB) 4
5 & 6
3 / 4-wire circuit / HF33x
Terminal
1
2
3
4
5 & 6
Supply voltage V+ Output
10...28 VDC: 10 V + (0.02 x load) 4...20 mA
18...40 VDC / 13...28 VAC 0...20 mA
18...40 VDC / 13...28 VAC 4...20 mA
6...40 VDC / 5...28 VAC 0...1 V
10...40 VDC / 8...28 VAC 0...5 V
18...40 VDC / 13...28 VAC 0...10 V
Schematics Description
+
V Supply voltage +
T– OUT Analogue temperature output +
+
V Supply voltage +
H– OUT Analogue humidity or dew point output +
Not connected
V+ OUT1
OUT2
= ~
Current output
GND GND
V+ OUT1
OUT2
Voltage output
GND GND
Schematics Description
V+ Supply voltage +/Phase
GND GND / Neutral
OUT1 Analogue humidity or dew point output +
OUT2 Analogue temperature output +
Not connected
Programming
The basic settings of the devices are made in the factory according to your order. The transmit-
ters are adjusted in the factory and therefore do not need to be checked and readjusted during
installation. The devices can be started immediately after installation.
Display
In models with LC display the value can be read directly.
Trend indicators Humidity-, dew point- or frost point value.
Depends on the ordered version.
Temperature value
Measurement-End-Indicators
L Increasing value (End value is not reached yet)
M Decreasing value (End value is not reached yet)
L
Constant value (End value is reached)
M
Scaling / Adjustment / Firmware update
The following settings can be made with the help of the HW4 software and either the service
cable AC3006 or AC3009:
• new scaling of the outputs
• adjustment
• fi rmware update
You can fi nd a detailed description in the manual that you can download from our web site at:
www.rotronic-humidity.com
Technical data (operation & measurement)
Humidity: 0...100 %rh
Temperature: Type S: –40...60 °C , without display
Type R: –10...60 °C, with display
Accuracy: Type R: ± 1,0 %rh / Type S: ± 2 %rh, ± 0.3 K @ 23°C
Protection: IP20
Outputs: Current or voltage signals depending on order code,
UART service interface
