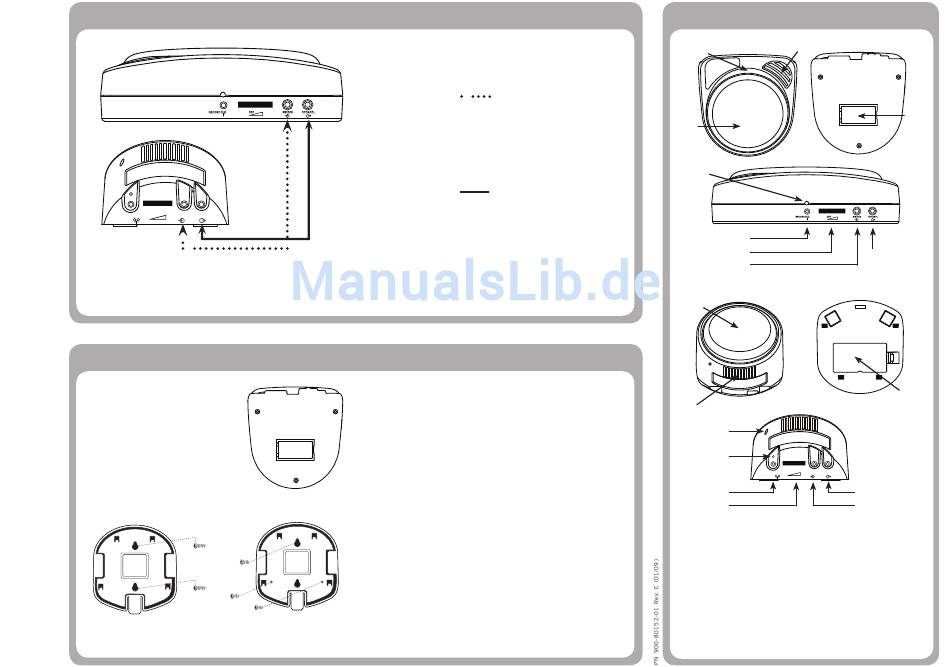

Advanced Features

RECORD OFF SWITCH TOY/APPL.

Mounting Options

Fig. A
Playing a message with an External Switch
Attach the switch of your choice with a 1/8-inch (3.5mm)
plug into the switch input jack and continue to use the
device as before.
(Jacks indicated with
Controlling Toys or Appliances
Plug any switch-adapted toy or appliance into the TOY/APPL
jack. When the BIG or LITTLEmack is activated, the attached
toy or appliance will activate for the length of the recorded
message.
(Jacks indicated with
NOTE: To control an electrical appliance, a PowerLink® 3 is
required. For information about adapting toys and appliances, visit
www.ablenetinc.com
Mounting BIGmack
BIGmack can be mounted using the Large Triangular Mounting
Plate* and a variety of mounting systems. Screw the mounting
plate into place using the three holes shown at left.
Working with the Mounting Base and LITTLEmack
Release the base by pressing the quick release tab on the
mounting base and sliding towards the back of the device.
Attach the base by aligning the four posts on the Base with the
corresponding holes on LITTLEmack. Slide the base forward
until it clicks.
For a temporary mount, use a #8 pan head screw and the two
vertical slots on the Mounting Base. (Figure A)
For permanent mounting, screw the mounting base into place
with the three holes shown at left. (Figure B)
*Additional mounting options available at www.ablenetinc.com
Note: Specify large or small triangular mounting plate size when
Fig. B
ordering mounting system.
)
Switch
)
Product Map and Warranty
Top View Bottom View
Speaker
Microphone
Top
Back View
Record
Light
Record Button
Volume On/Off
External Switch Jack
Top View Bottom View
Switch
Top
Back View
Speaker
Microphone
Record Light
RECORD OFF SWITCH TOY/APPL.
Record Button
Volume On/Off
Warranty/Repair/Return Information
AbleNet offers a limited two-year warranty on the BIGmack
and LITTLEmack communicator products. For full warranty
details, visit www.ablenetinc.com
For more information on AbleNet products and services:
AbleNet, Inc.,
Minneapolis/St. Paul, MN
800-322-0956 (US & Canada)
Internet: www.ablenetinc.com
© 2007 AbleNet, Inc., All Rights Reserved
Battery
Door
Toy Appliance Jack
Battery
Door
Toy Appliance Jack
External Switch Jack
