elc multiplay centre Montageanleitung Seite 21

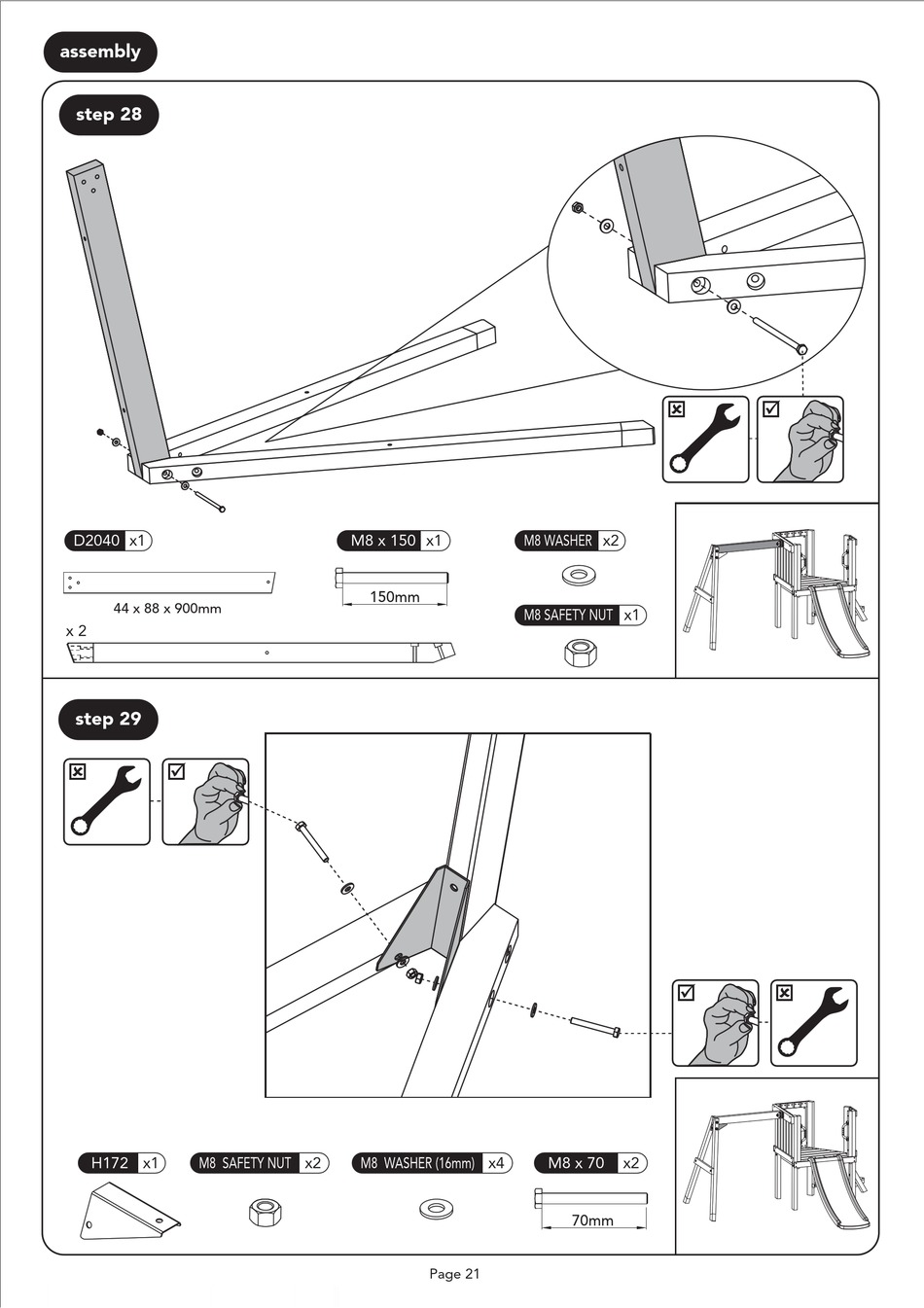

assembly
step 28
 
D2040 x1 M8 x 150 x1 M8 WASHER x2
150mm
44 x 88 x 900mm
M8 SAFETY NUT x1
x 2
step 29
 
 
H172 x1 M8 SAFETY NUT x2 M8 WASHER (16mm) x4 M8 x 70 x2
70mm
Page 21
